33001-4022

MOL33001-4022
Heilind Number:MOL33001-4022
Manufacturer:Molex
Manufacturer Number:33001-4022
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

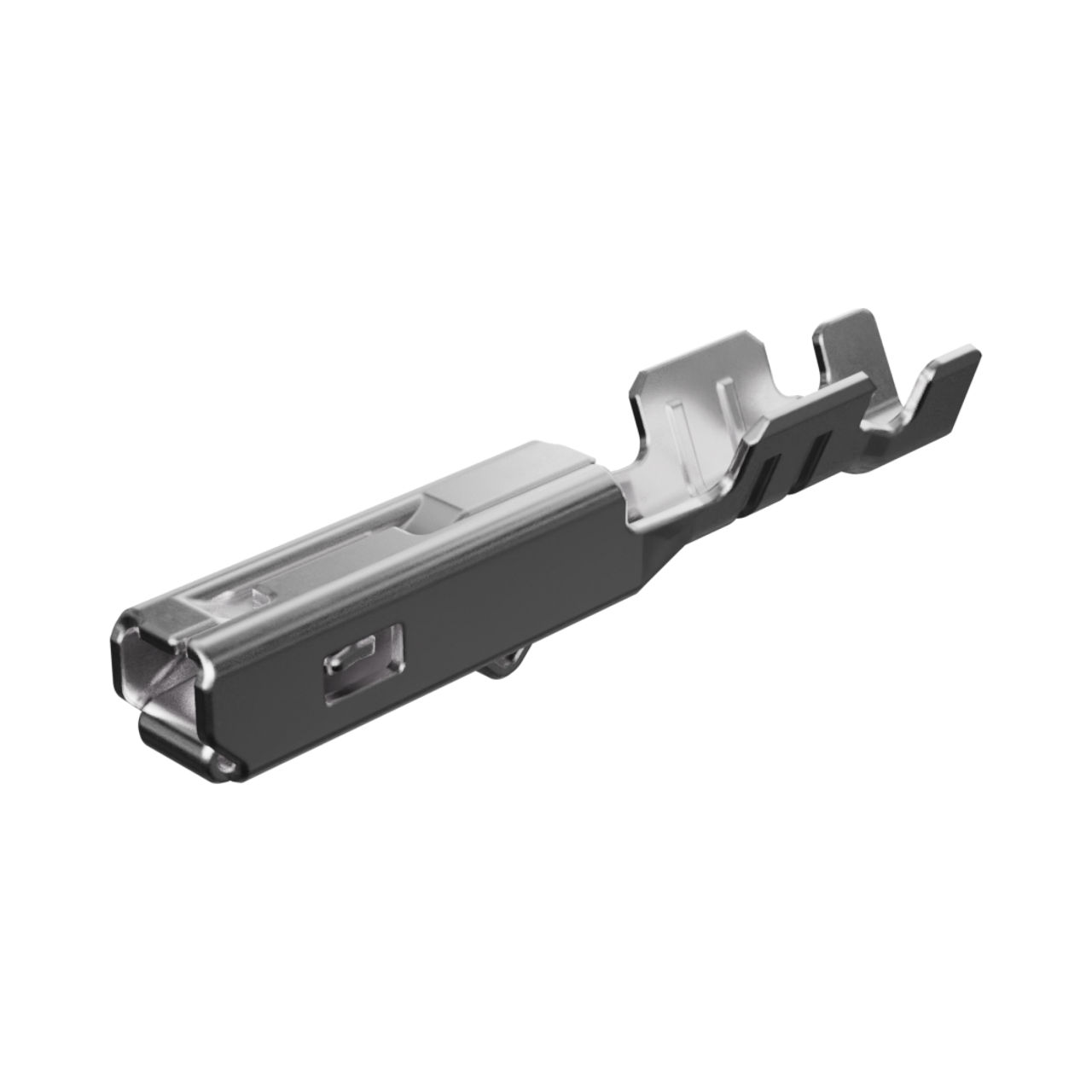

MX150 Female Terminal, Silver Plating, 18 and 20 AWG, Right Reel Payoff
Note: Can Only Be Used with MX150 Unsealed Connectors

More >>

Specifications

AttributeValue
Product Category:
Automotive Connectors & Accessories Automotive Connectors
Manufacturer:Molex
Manufacturer Part Number:Molex 33001-4022
Series:33001 - MX150
Connector Type:MX150
Gender:Female
Termination Method:Crimp or Compression
Contact Material:High Performance Alloy (HPA)
Contact Plating:Silver
Voltage:14 V DC
Packaging:Reel
Circuit Application:Power
Contact Mating Area Plating:Silver
Contact Mating Area Plating Thickness:.762 µm
Contact Termination Plating Thickness:2.540 µm
Wire Size:18 AWG, 20 AWG, .75 - 1 mm²
Connector System:Wire to Board, Wire to Wire
Contact Termination Plating:Tin
Wire Insulation Diameter:2.54 mm
Product Name:MX150
Part Aliases:0330014022
SKU:MOL33001-4022

Detailed Description

Introducing the MX150 Female Terminal, designed for seamless power connectivity in automotive applications. Featuring a durable High Performance Alloy (HPA) construction with a protective silver plating, this terminal ensures reliable performance even in harsh operating conditions. Suitable for 18 and 20 AWG wires, with a right reel payoff for convenient installation. Compliant with RoHS regulations, it is environmentally friendly. Perfect for use with MX150 unsealed connectors, this terminal is a must-have for automotive wiring projects. Available for immediate shipping.
