33001-3005

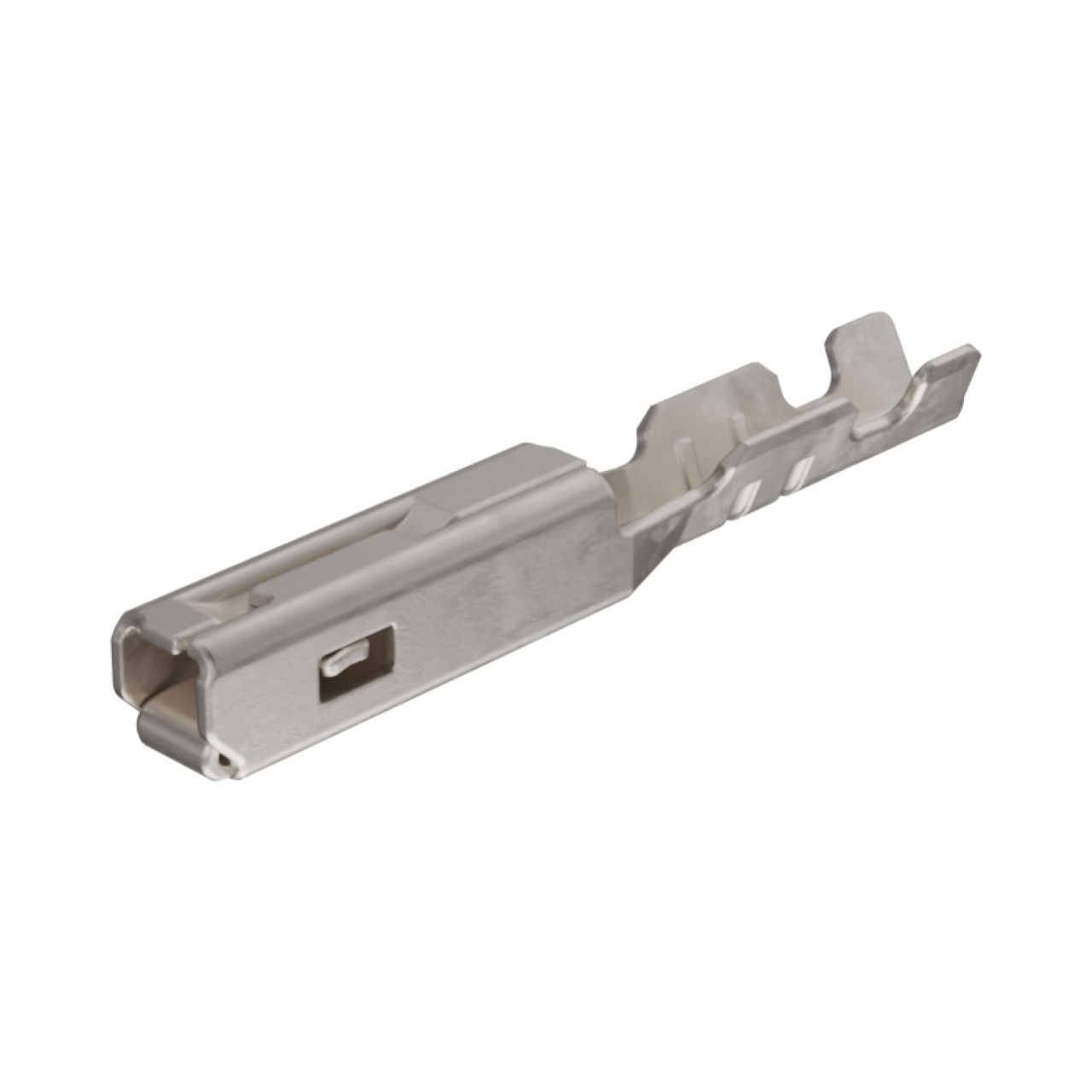

MX150 Female Terminal Sealed, Gold Plating, 22 AWG, Left Reel Payoff
Part Aliases: Molex 0330013005
The Molex MX150 Female Terminal Sealed, a high-performance connector designed for automotive applications. Featuring gold plating and crimp or compression termination, this terminal ensures reliable power transmission. With a voltage rating of 14 V DC, it is suitable for various automotive systems. The contact material, High Performance Alloy (HPA), and gold plating guarantee excellent conductivity and corrosion resistance. This 22 AWG terminal, part of the MX150 series, is RoHS compliant and comes in a convenient reel packaging for easy handling. Perfect for wire-to-wire or wire-to-board connections, it offers uncompromising quality and durability for automotive harness assembly. Upgrade your automotive connectivity with the Molex MX150 Female Terminal Sealed.
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 33001-3005 |
| Series: | 33001 - MX150 |
| Connector Type: | MX150 |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | High Performance Alloy (HPA) |
| Contact Plating: | Gold |
| Voltage: | 14 V DC |
| Packaging: | Reel |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 22 AWG, 5 mm |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Unplated |
| Wire Insulation Diameter: | 1.7 mm |
| Product Name: | MX150 |
| Part Aliases: | 0330013005 |
| SKU: | MOL33001-3005 |
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
Product Change Notice
| Effective Date | Description of Change | Download |
|---|---|---|
| 06/23/2022 | 511827 - Capacity change or tool replacement. This notification is to inform you about a set of tooling that is being added, in Molex Lincoln Nebraska, to meet the current and future demands of the product referenced below. There will be no changes in fit, form or function from the additional tooling when compared to the existing tooling. | Download |
