33001-2021

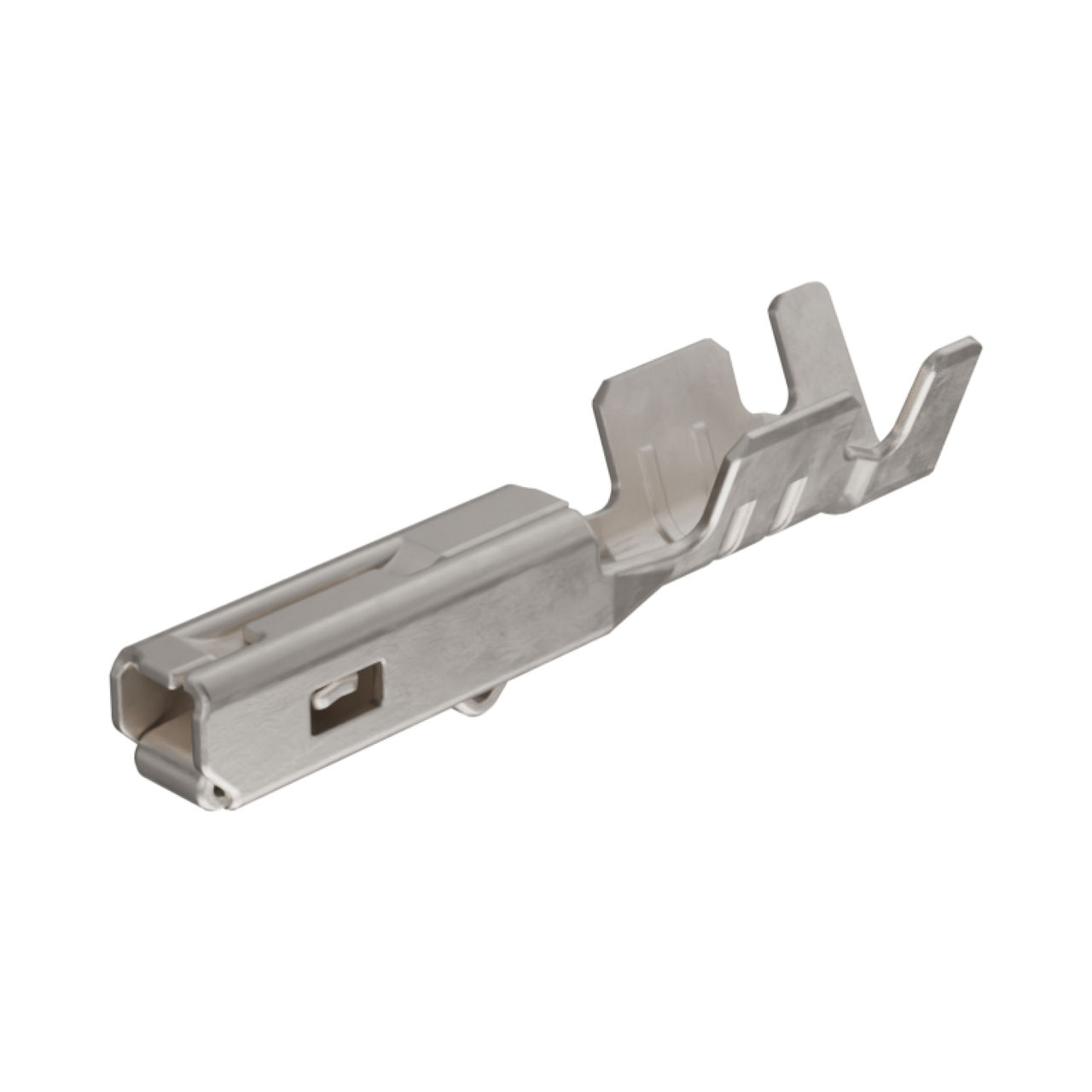

MX150 Female Terminal, Gold Plating, 14 and 16 AWG, Right Reel Payoff
Note: Can Only Be Used with MX150 Unsealed Connectors

Part Aliases: Molex 0330012021
The MX150 Female Terminal is a high-performance connector component designed for automotive applications. Featuring gold plating for optimal conductivity and durability, it is suitable for use with 14 and 16 AWG wires. The right reel payoff design ensures convenient handling during assembly. Compatible only with MX150 unsealed connectors, this terminal offers reliable crimp or compression termination. With a voltage rating of 14 V DC, it is ideal for power circuits. The gold-plated mating area and thick termination plating guarantee secure and stable connections. RoHS compliant and in stock for immediate shipping, the MX150 Female Terminal is a dependable choice for automotive wire-to-wire and wire-to-board connections.
AVAILABILITY
Immediate Shipment:NA
Stock Location:In Stock
Factory Stock:Call for Stock
Factory Lead:
Unit Of Measure:
Minimum/Multiple:1/1
Pricing
CALL: 800.422.3911
Invalid quantity value
Product Category:
Manufacturer:Molex
Manufacturer Part Number:Molex 33001-2021
Series:33001 - MX150
Connector Type:MX150
Gender:Female
Termination Method:Crimp or Compression
Contact Material:High Performance Alloy (HPA)
Contact Plating:Gold
Voltage:14 V DC
Packaging:Reel
Circuit Application:Power
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:.762 µm
Contact Termination Plating Thickness:2.540 µm
Wire Size:14 AWG, 16 AWG, 1.5 mm²
Connector System:Wire to Board, Wire to Wire
Contact Termination Plating:Tin
Wire Insulation Diameter:2.7 mm
Product Name:MX150
Part Aliases:0330012021
SKU:MOL33001-2021

Environmental Initiative Details

Environmental Initiative:RoHS
Compliant:Unknown
Date of this Information:Unknown
Notes:
