31068-1071

MOL31068-1071
Heilind Number:MOL31068-1071
Manufacturer:Molex
Manufacturer Number:31068-1071
Datasheet:RoHS Certificate of Compliance
ECAD Model:
3D Model

Description:

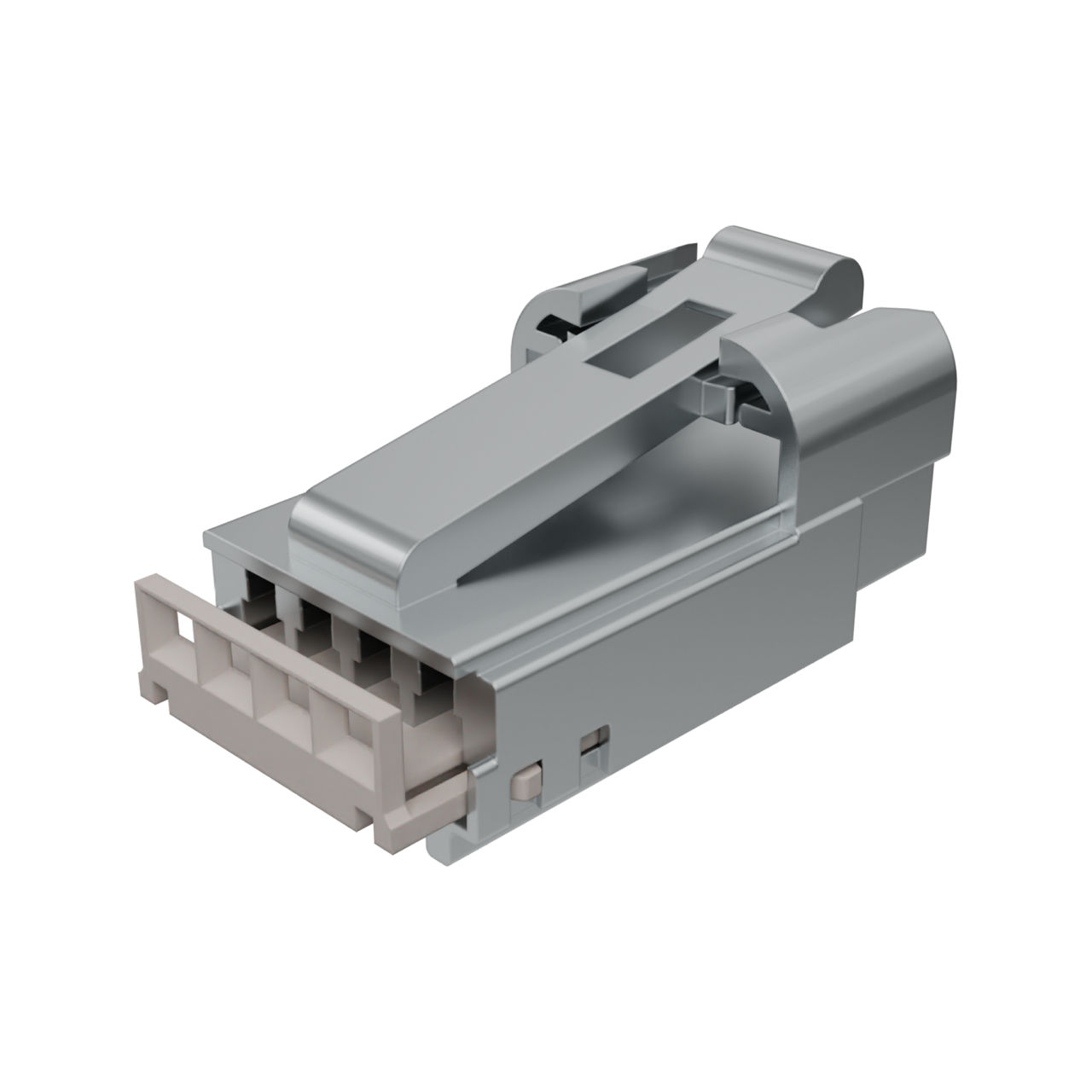

2.54mm H-DAC 64, 4 Way Male Housing Assembly, Single Row, Polarization B, Gray, with Xmas Tree Attachment

More >>

Specifications

AttributeValue
Product Category:
Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:Molex
Manufacturer Part Number:Molex 31068-1071
Color:Gray
Series:31068 - H-DAC 64
Amperage:11 A, 9 A
Connector Type:H-DAC 64
Gender:Plug
Housing Material:Polyester
Number of Contacts:4
Number of Rows:1
Pitch:2.54 mm
Material:Modified Polystyrene, Polyester
Number of Ports:1
Keying:No
Packaging:Bag
Operating Temperature Range:-40 - 100 °C
Circuit Application:Power
Polarized to Mate:Yes
Connector System:Wire to Board
Termination Pitch:2.54 mm
Glow Wire Capable:No
Lock to Mating Part:Yes
Stackable:No
Part Aliases:0310681071
Contact Detail:4
SKU:MOL31068-1071

Detailed Description

Introducing the 31068-1071, a high-performance gray H-DAC 64 series connector designed for power applications. With an amperage rating of 9A and 11A, this plug connector features a durable polyester housing and four contacts arranged in a single row for efficient connectivity. Operating in a wide temperature range from -40 to 100°C, it is ideal for demanding environments. Engineered for reliability, this connector is polarized for secure mating, with a locking feature for added stability. RoHS compliant and featuring a termination pitch of 2.54mm, it is suitable for various electronic systems. Upgrade your connectivity with the 31068-1071 connector.
