| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 30490-2012 |
| Series: | 30490 - Mini-Fit Jr. |
| Amperage: | 9 A |
| Connector Type: | Mini-Fit Jr. |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Tin |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG, 24 AWG |
| Connector System: | Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1.3 - 3.1 mm |
| Part Aliases: | 0304902012 |
| SKU: | MOL30490-2012 |
30490-2012
Specifications
Detailed Description
The Mini-Fit Jr. Crimp Grounding Terminal 30490-2012 is a high-quality male connector designed for reliable power transmission in wire-to-wire applications. With a tin-plated phosphor bronze contact, this terminal ensures excellent conductivity and corrosion resistance. Suitable for 24-18 AWG wires, it offers a secure crimp or compression termination method. With a current rating of 9 A, it is ideal for power circuit applications. This RoHS-compliant terminal guarantees environmentally friendly usage. Available in stock, it is a dependable choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 212514-1008 | Mini-Fit Max Receptacle Housing, Dual Row, UL 94V-0, 8 Circuits, Glow-Wire Capable, Black |  |

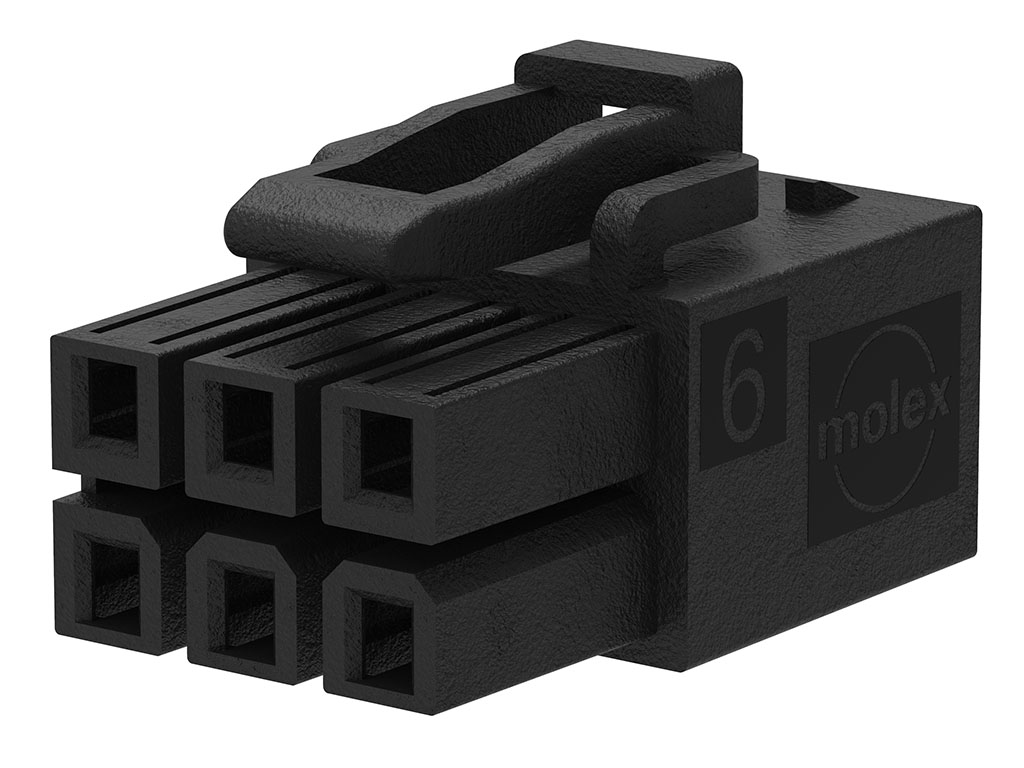

 | Molex 212514-1010 | Mini-Fit Max Receptacle Housing, Dual Row, UL 94V-0, 10 Circuits, Glow-Wire Capable, Black | |
