| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 26-64-4060 |
| Series: | 42491 - KK 396 |
| Amperage: | 7 A |
| Connector Type: | KK 396 |
| Number of Contacts: | 6 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 3.96 mm |
| Voltage: | 250 V |
| Orientation: | Vertical |
| Tail Length: | 3.56 mm |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 5.08 µm |
| Number of Contacts Loaded: | 6 |
| Mating Cycles: | 25 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Contact Termination Plating Thickness: | 5.08 µm |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 235 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 005 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | Yes |
| Breakaway: | No |
| Shroud Type: | Partial |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0026644060 42491-0006 |
| SKU: | MOL26-64-4060 |
26-64-4060
Specifications
Detailed Description
Introducing the 26-64-4060, a versatile KK 396 Header designed for vertical PCB installation. Featuring a friction lock with a press-fit plastic peg, this connector ensures secure and reliable mating. With 6 circuits and tin (Sn) plating, it offers excellent conductivity and corrosion resistance. Rated for 7 A and 250 V, it's suitable for a wide range of applications. The straight body orientation and 3.96 mm pitch make it easy to integrate into your designs. With features like PCB retention, polarization, and stackability, it's convenient to use in wire-to-board connections. RoHS compliant and lead-free solder capable, it meets environmental standards. Trust the 26-64-4060 for high-quality PCB connectivity in your projects.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

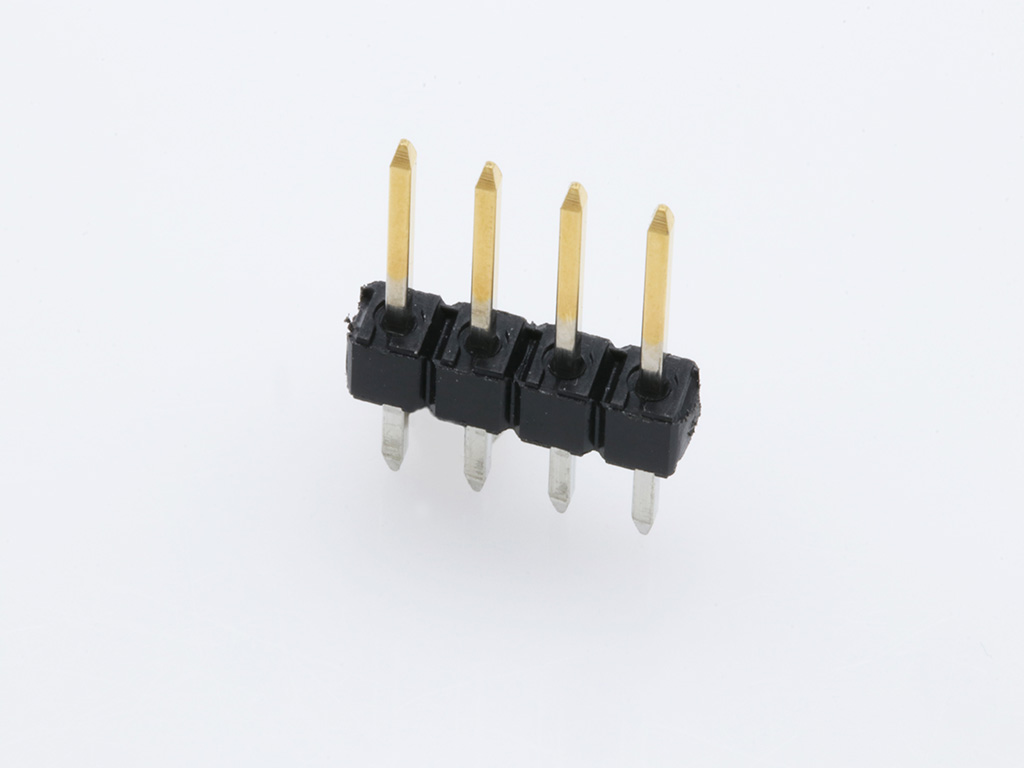

 | Molex 22-28-4044 | KK 254 Breakaway Header, Vertical, 4 Circuits, 0.38 |  |
 | Molex 26-64-4040 | KK 396 Header, Vertical, Friction Lock with Press-fit Plastic Peg PCB, 4 Circuits, Tin (Sn) Plating | |
 | Molex 26-64-4070 | KK 396 Header, Vertical, Friction Lock with Press-fit Plastic Peg PCB, 7 Circuits, Tin (Sn) Plating | |

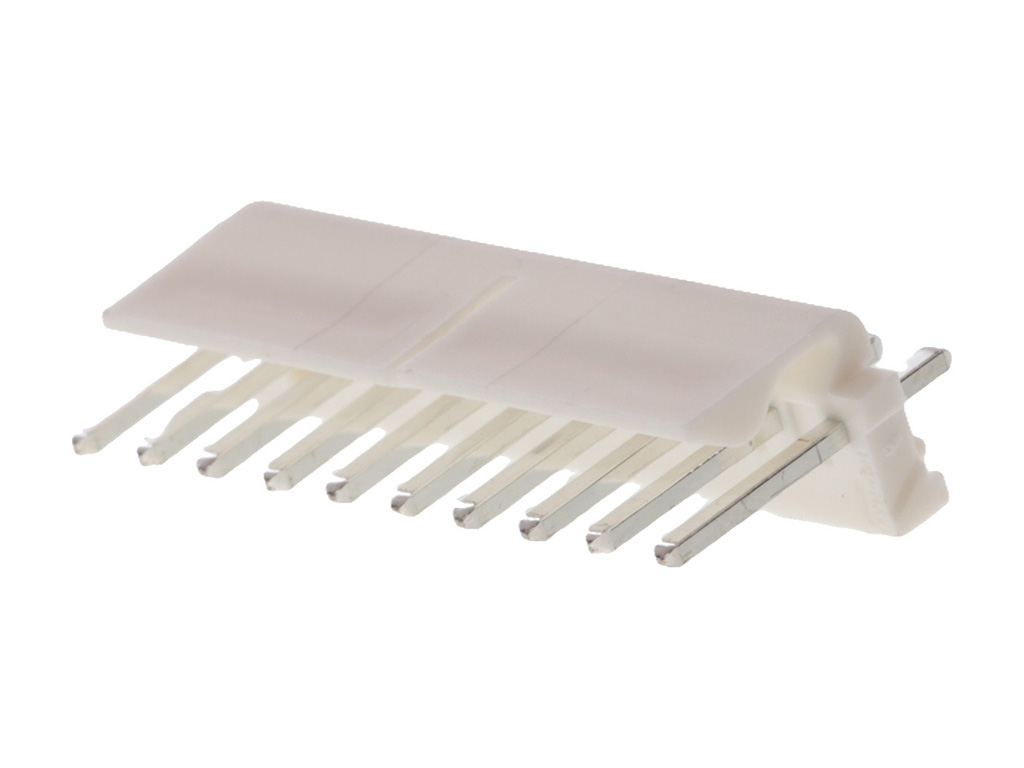

 | Molex 26-64-4100 | KK 396 Header, Vertical, Friction Lock with Press-fit Plastic Peg PCB, 10 Circuits, Tin (Sn) Plating | |
