| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 26-48-1241 |
| Color: | Black |
| Series: | 41661 - KK 396 |
| Amperage: | 7 A |
| Connector Type: | KK 396 |
| Number of Contacts: | 24 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 3.96 mm |
| Voltage: | 250 V |
| Material: | Polyester |
| Orientation: | Vertical |
| Keying: | No |
| Tail Length: | 4.37 mm |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 24 |
| Mating Cycles: | 25 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Board to Board, Wire to Board |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 235 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 005 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Termination Pitch: | 3.96 mm |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | No |
| Stackable: | No |
| Breakaway: | Yes |
| Make First / Break Last: | No |
| Shroud Type: | Partial |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0026481241 A-41661-A24A197 |
| SKU: | MOL26-48-1241 |
26-48-1241
Specifications
Detailed Description
Introducing the 26-48-1241 KK 396 Breakaway Header, a versatile vertical connector designed for secure board-to-board or wire-to-board connections. With 24 tin-plated circuits, this black header offers reliable performance in a straight body orientation. Each contact is made of brass, ensuring durability and conductivity, while the 3.96mm pitch allows for efficient signal transmission. Rated for 7A and 250V, this connector is suitable for a wide range of applications. Its UL and CSA certifications guarantee quality and safety, while its RoHS compliance reflects our commitment to environmental responsibility. The 26-48-1241 is a top choice for high-density PCB designs, offering easy installation with its through-hole termination method and 1.6mm PCB thickness compatibility. Upgrade your connectivity solutions with this premium KK 396 Breakaway Header.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-50-0114 | KK 254 Crimp Terminal, 22-30 AWG, Bag, Hot Tin (Sn) Dip Plating |  |

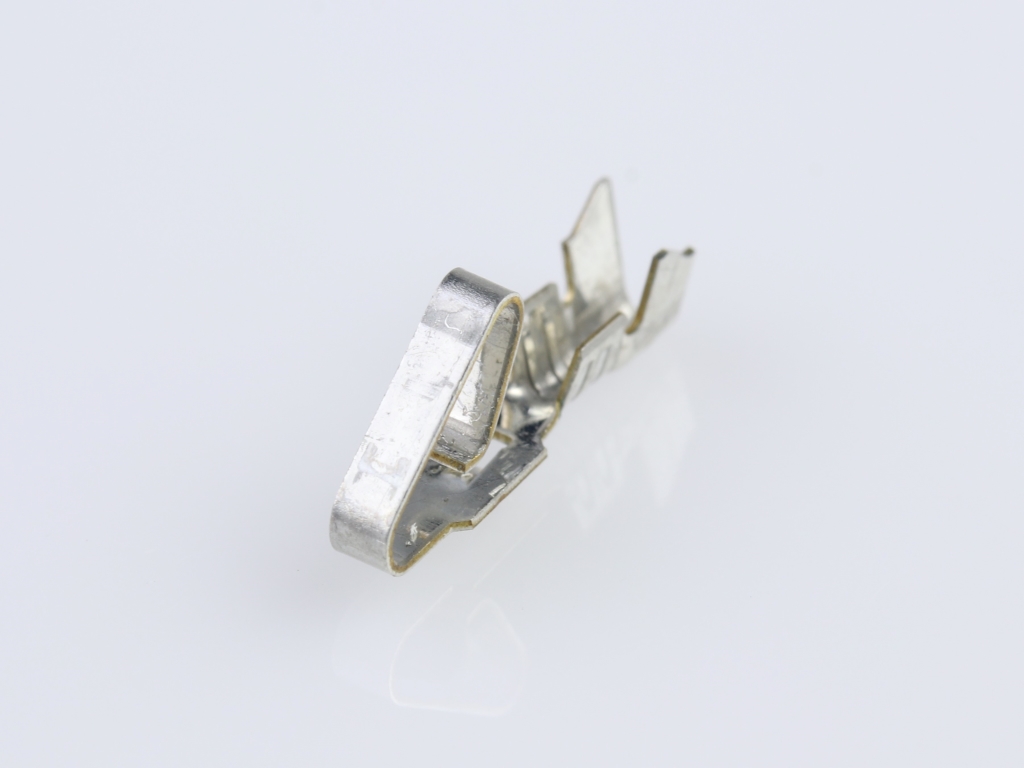

 | Molex 08-50-0134 | KK 396 Crimp Terminal 2578, 22-26 AWG, Bag, Phosphor Bronze, Tin (Sn) | |
 | Molex 15-04-0219 | 3.96mm Pitch KK Polarizing Key without Boss | |

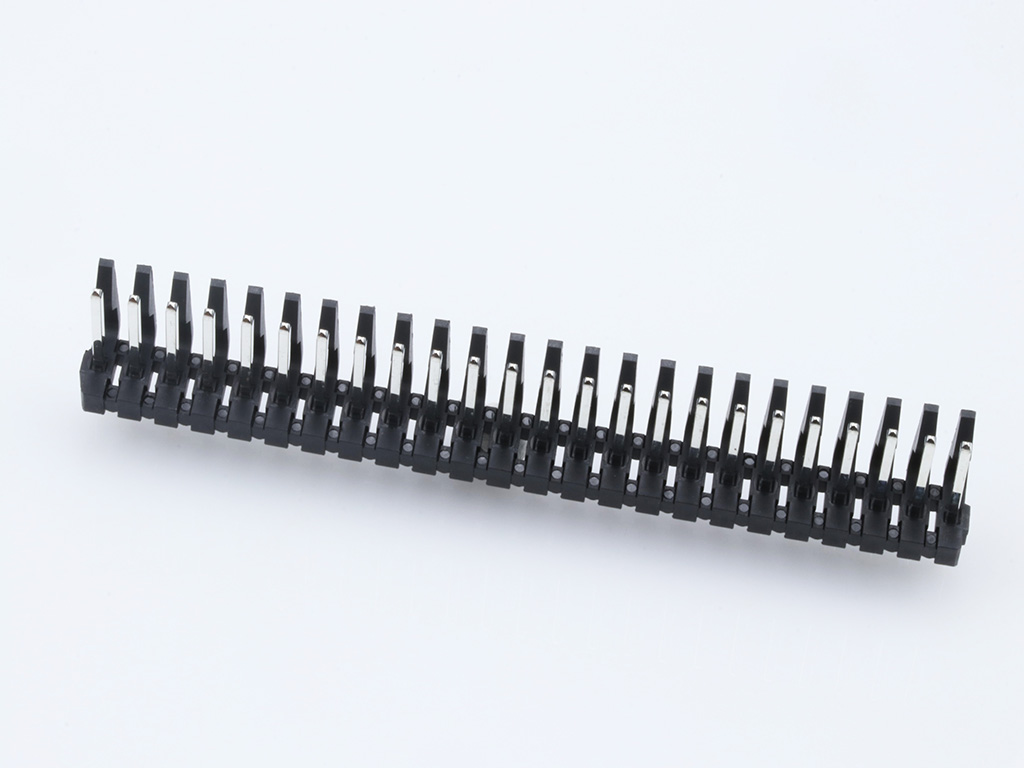

 | Molex 26-48-1245 | KK 396 Breakaway Header, Vertical, Square Pin, with Friction Lock, 24 Circuits, Tin (Sn) Plating | |
