| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 26-48-1021 |
| Color: | Black |
| Series: | 41661 - KK 396 |
| Amperage: | 7 A |
| Connector Type: | KK 396 |
| Number of Contacts: | 2 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 3.96 mm |
| Voltage: | 250 V |
| Material: | Polyester |
| Orientation: | Vertical |
| Keying: | No |
| Tail Length: | 4.37 mm |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 2 |
| Mating Cycles: | 25 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Board to Board, Wire to Board |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 235 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 005 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Termination Pitch: | 3.96 mm |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | No |
| Stackable: | No |
| Breakaway: | Yes |
| Make First / Break Last: | No |
| Shroud Type: | Partial |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0026481021 A-41661-A02A197 |
| SKU: | MOL26-48-1021 |
26-48-1021
Specifications
Detailed Description
The 26-48-1021 is a KK 396 Breakaway Header featuring a Vertical orientation, with 2 Circuits for efficient connectivity. Its durable construction includes Tin (Sn) Plating and a Black color, making it suitable for a variety of applications. With an amperage rating of 7 A and a voltage capacity of 250 V, this connector ensures reliable performance. The termination method is Through Hole, with Brass contact material and Tin plating for enhanced conductivity. Its straight body orientation and low-profile design make it ideal for space-restricted installations. RoHS compliant and suitable for lead-free soldering processes, this header is a dependable choice for board-to-board and wire-to-board connections in various electronic systems.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

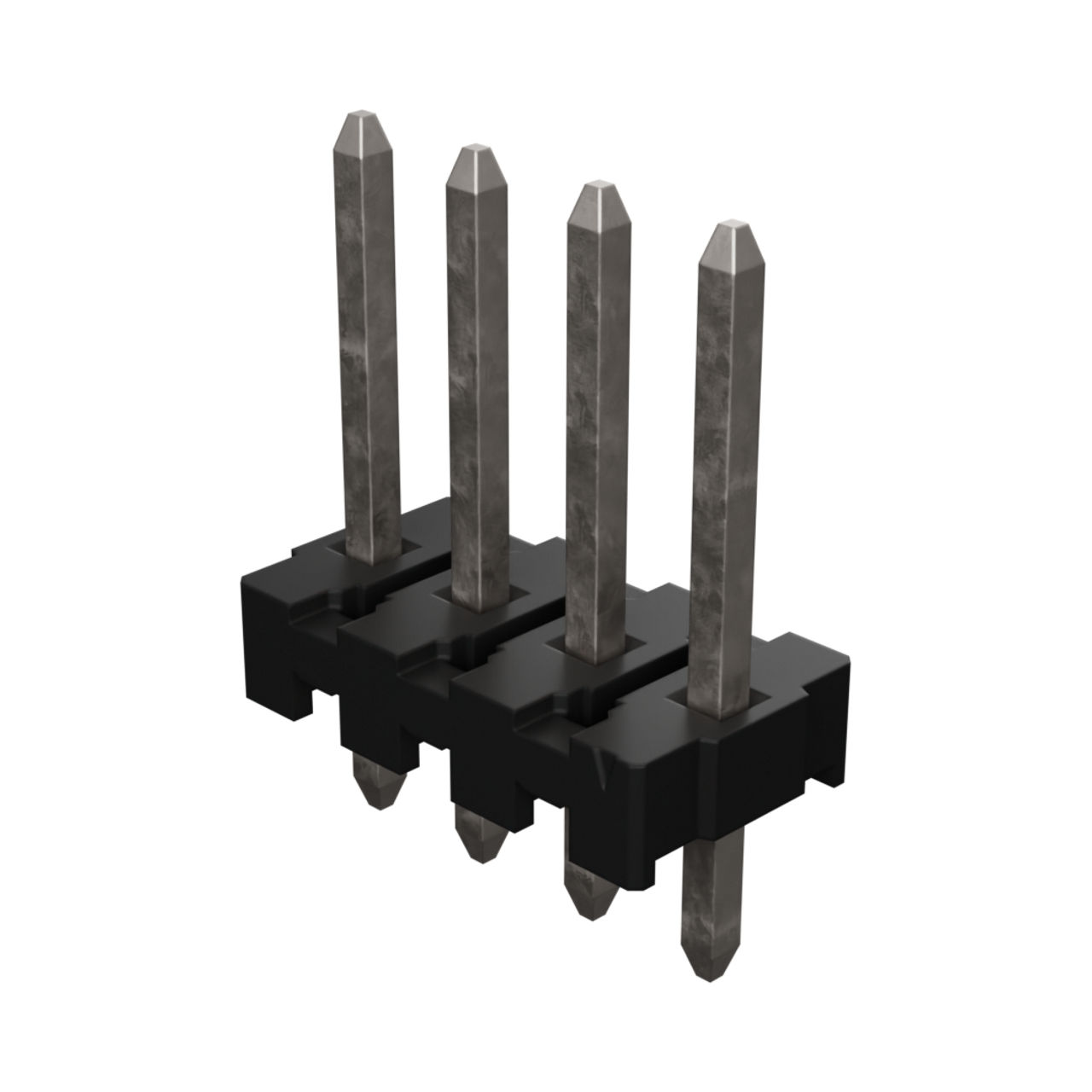

 | Molex 26-48-1041 | KK 396 Breakaway Header, Vertical, 4 Circuits, Tin (Sn) Plating |  |
 | Molex 26-48-1061 | KK 396 Breakaway Header, Vertical, 6 Circuits, Tin (Sn) Plating | |

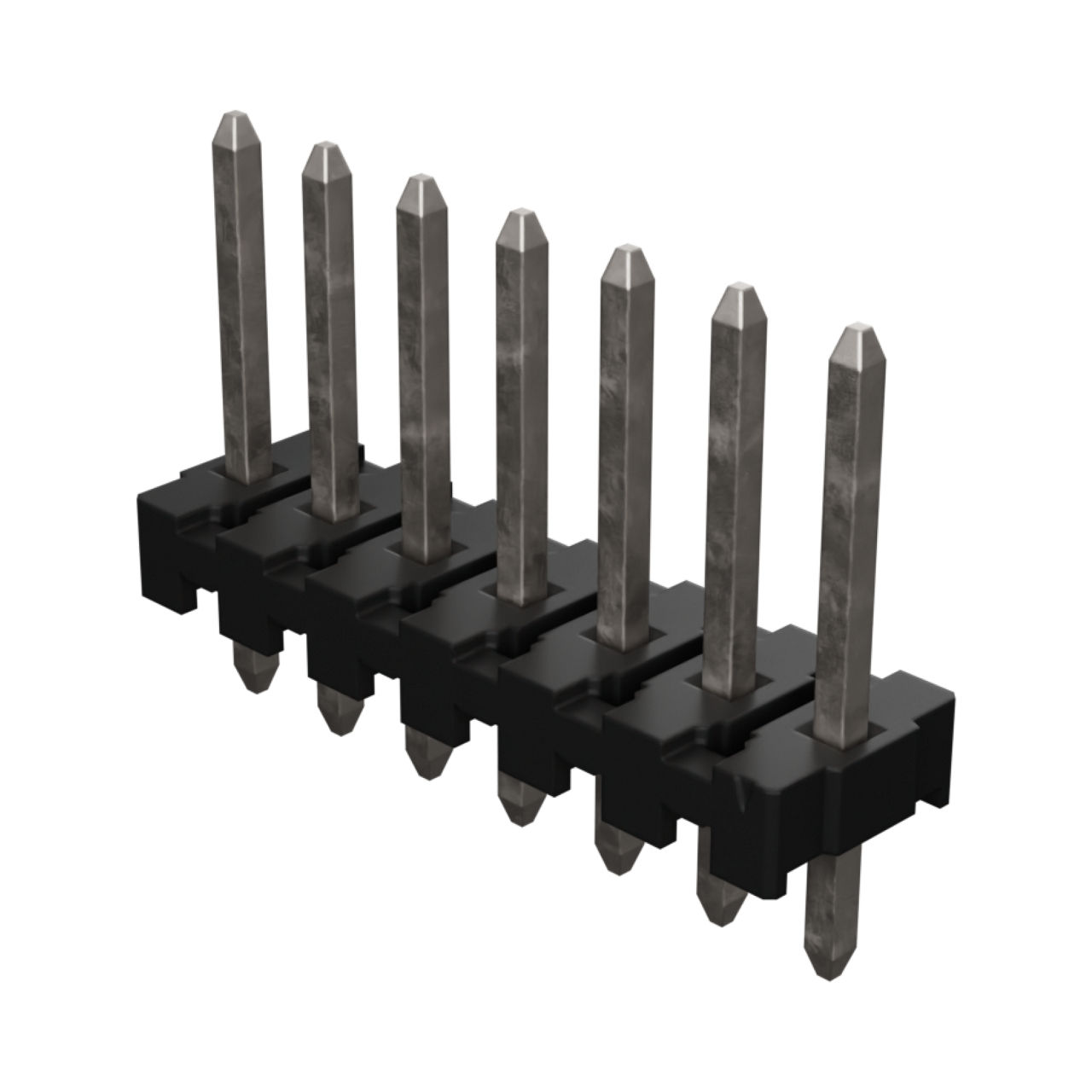

 | Molex 26-48-1071 | KK 396 Breakaway Header, Vertical, 7 Circuits, Tin (Sn) Plating | |
 | Molex 26-48-1081 | KK 396 Breakaway Header, Vertical, 8 Circuits, Tin (Sn) Plating | |
 | Molex 26-48-1091 | KK 396 Breakaway Header, Vertical, 9 Circuits, Tin (Sn) Plating | |
 | Molex 26-48-1101 | KK 396 Breakaway Header, Vertical, 10 Circuits, Tin (Sn) Plating | |

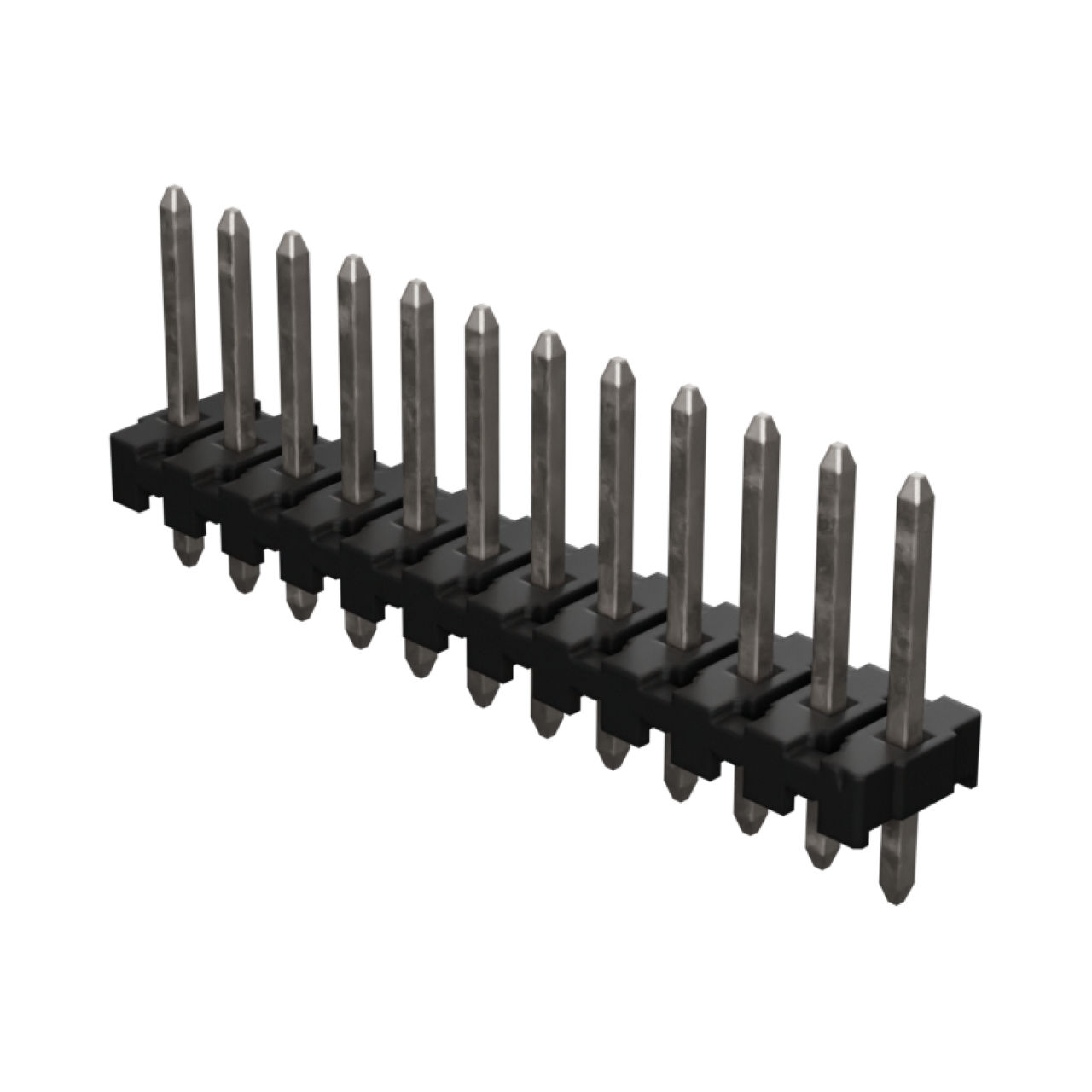

 | Molex 26-48-1121 | KK 396 Breakaway Header, Vertical, 12 Circuits, Tin (Sn) Plating | |
