22-55-2221

Heilind Number:	MOL22-55-2221
Manufacturer:	Molex
Manufacturer Number:	22-55-2221
Datasheet:	Product Specification
ECAD Model:

Description:

2.54mm Pitch SL Crimp Housing, Dual Row, Version A, Non-polarized, 22 Circuits, Black

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 22-55-2221
Color:	Black
Series:	70450
Connector Type:	SL
Gender:	Receptacle
Housing Material:	Polyester
Number of Contacts:	22
Number of Rows:	2
Pitch:	2.54 mm
Material:	Polyester
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Signal
Connector System:	Wire to Board
Glow Wire Capable:	No
Stackable:	Yes
Breakaway:	No
Product Name:	SL
Material Flammability Standard:	94V-0
Part Aliases:	0022552221 70450-0010
SKU:	MOL22-55-2221

Detailed Description

Introducing the SL series 22-55-2221 connector, a versatile and high-performance solution for your signal circuit applications. With 22 contacts arranged in 2 rows and a standard 2.54mm pitch, this black connector is designed for reliable wire-to-board connectivity. Crafted from durable polyester, it offers excellent performance in a wide operating temperature range from -40 to 105°C. RoHS compliant and stackable, the 22-55-2221 is not only environmentally friendly but also offers added convenience in assembly. Whether you're working on a new project or upgrading existing systems, this connector is a dependable choice for your high-reliability needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 03-09-1027	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 2 Circuits, with Pre-bent Mounting Ears, with Ramps, Natural
	Molex 15-04-0292	Universal Polarizing Key, Black
	Molex 15-06-0186	Mini-Fit BMI Plug Housing, 4.20mm Pitch Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 18 Circuits
	Molex 16-02-0069	SL Crimp Terminal, Series 70058, Female, 30-24 AWG, with Tin (Sn) Plated Contact, Reel

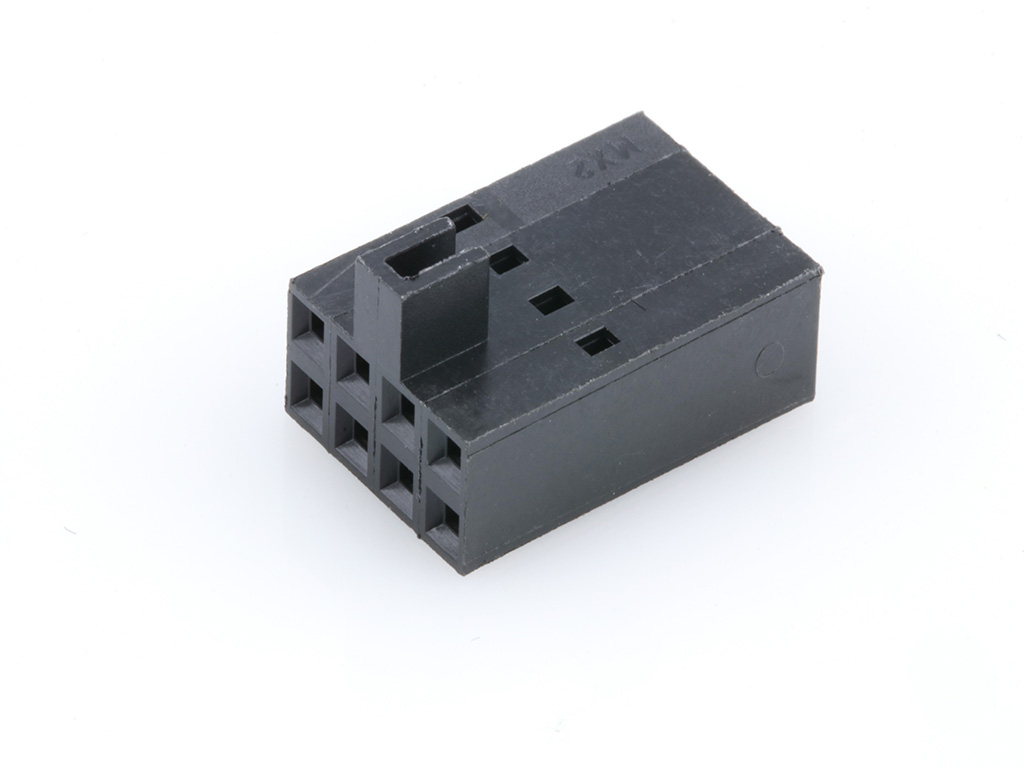

	Molex 22-55-2082	2.54mm Pitch SL Crimp Housing, Dual Row, Version B, Polarized, 8 Circuits, Black
	Molex 50-37-5033	2.50mm Pitch Mini-SPOX Wire-to-Board Crimp Housing, Friction Lock, 3 Circuits, Natural
	Molex 50-37-5083	2.50mm Pitch Mini-SPOX Wire-to-Board Crimp Housing, Friction Lock, 8 Circuits, Natural
	Molex 67582-0000	1.27mm Pitch Crimp Housing for Serial ATA Power Cable Receptacle, 15 Circuits, Black
	Molex 90327-3310	Picoflex PF-50, Low Profile, IDT Receptacle, 10 Circuits, White, Palladium Nickel with Gold (Au) Flash Plated, Bag

Product Change Notice

Effective Date	Description of Change	Download
07/12/2022	512278 - Retraction of PCN 510384. Due to global material constraints & delays on getting this material to move.	Download
02/28/2022	510396 - Packaging method/Quantity Changing. previously not following standard packaging, correct DU size following general packaging. no impact to form fit or function.	Download
08/16/2021	510384 - Supplier Change. Due to mfg constraints at the Florence Kentucky Location of one of our resin suppliers it has been determined to move the Mfg of one of the resin product families to Evansville Indiana location of that same supplier.	Download
03/31/2020	507616 - Equipment Transfer, Production Transfer or Rearrangement. This letter is to inform you that production of the part(s) identified in this notice is being moved to a different production location. No changes will be made to the product as a result of this move.	Download
08/01/2014	GCM 10629608 - Supplier Change.	Download
