| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 22-28-8042 |
| Color: | Black |
| Series: | 42377 - KK 254 |
| Amperage: | 4 A |
| Connector Type: | KK 254 |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Right Angle |
| Pitch: | 2.54 mm |
| Voltage: | 500 V |
| Material: | High Temperature Thermoplastic |
| Orientation: | Right Angle |
| Tail Length: | 3.05 mm |
| Packaging: | Bag |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .381 µm |
| Number of Contacts Loaded: | 4 |
| Mating Cycles: | 100 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Contact Termination Plating Thickness: | 2.540 µm |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Board to Board, Wire to Board |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 235 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 005 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Stackable: | No |
| Surface Mount Compatible: | Yes |
| Breakaway: | Yes |
| Shroud Type: | Partial |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0022288042 42377-0074 |
| SKU: | MOL22-28-8042 |
22-28-8042
Specifications
Detailed Description
Introducing the 22-28-8042 KK 254 Breakaway Header, a versatile and reliable connector for your PCB applications. This right-angle surface mount header is designed for seamless integration, with 4 circuits and a low profile of 0.38. Featuring a durable black housing made of high temperature thermoplastic, it ensures long-lasting performance in various environments. Each of the 4 contacts is constructed of brass with gold plating, offering excellent conductivity and corrosion resistance. With a pitch of 2.54 mm and a voltage rating of 500 V, this header is suitable for a wide range of electronic devices. RoHS compliant and UL certified, you can trust in its quality and safety. Whether you're a professional manufacturer or a hobbyist, the KK 254 Breakaway Header is the perfect choice for your next project.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

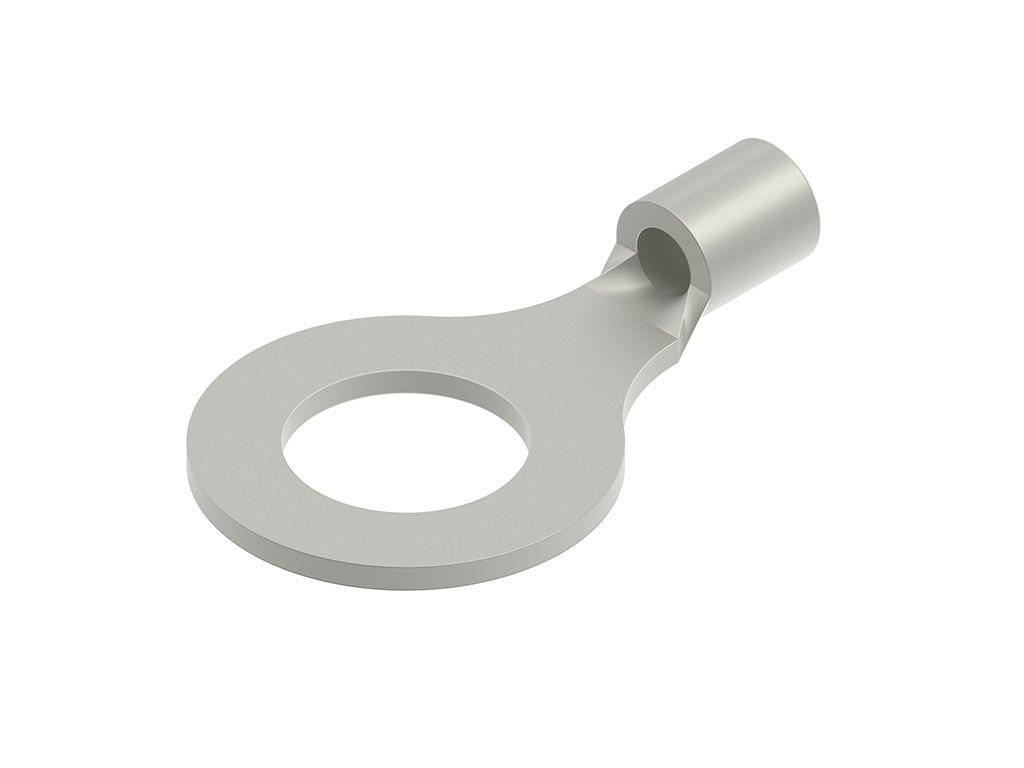

 | Molex 19193-0073 | VersaKrimp Ring Tongue Terminal for 14-16 AWG Wire |  |
