| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 22-10-2041 |
| Color: | Natural (White) |
| Series: | 4030 - KK 254 |
| Amperage: | 4 A |
| Connector Type: | KK 254 |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 2.54 mm |
| Voltage: | 500 V |
| Material: | Nylon |
| Orientation: | Vertical |
| Tail Length: | 3.43 mm |
| Packaging: | Bag |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .508 µm |
| Number of Contacts Loaded: | 4 |
| Mating Cycles: | 100 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Polarized to Mate: | No |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Board to Board, Wire to Board |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 235 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 005 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Termination Pitch: | 2.54 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Stackable: | Yes |
| Surface Mount Compatible: | No |
| Breakaway: | No |
| Shroud Type: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0022102041 A-4030-04A241 |
| SKU: | MOL22-10-2041 |
22-10-2041
| Heilind Number: | MOL22-10-2041 |
| Manufacturer: | Molex |
| Manufacturer Number: | 22-10-2041 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:
KK 254 Wire-to-Board Header, Single Row, Vertical, 4 Circuits, PA Polyamide Nylon, Gold (Au) Plating
More >>Specifications
Detailed Description
Introducing the Molex KK 254 Wire-to-Board Header, a reliable connectivity solution for your PCB projects. This single-row header features a vertical orientation, with 4 circuits for efficient signal transmission. Constructed from durable PA Polyamide Nylon and boasting Gold (Au) Plating, it ensures excellent conductivity and corrosion resistance. The natural (white) color and straight body orientation make it versatile for various applications. With a pitch of 2.54 mm and a voltage rating of 500 V, this connector is suitable for high-density designs. Its through-hole termination method and brass contact material guarantee secure and stable connections. RoHS compliant and with UL agency certification, you can trust in the quality and safety of this component for your projects. Available for immediate shipping.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 22-10-2021 | KK 254 Wire-to-Board Header, Single Row, Vertical, 2 Circuits, PA Polyamide Nylon, Gold (Au) Plating |  |
 | Molex 22-10-2031 | KK 254 Wire-to-Board Header, Single Row, Vertical, 3 Circuits, PA Polyamide Nylon, Gold (Au) Plating | |
 | Molex 26-60-3040 | KK 396 Header, Right-Angle, without Peg, 4 Circuits, Tin (Sn) Plating | |
 | Molex 26-60-6050 | KK 396 Solid Vertical Header, Friction Lock, with Snap-in Plastic Peg PCB Lock, 5 Circuits, Tin (Sn) Plating | |
 | Molex 39-00-0039 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 24-18 AWG | |
 | Molex 39-29-6048 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural | |
 | Molex 44144-0003 | Modular Jack, Right Angle, Low Profile, Surface Mount, 8/8 | |

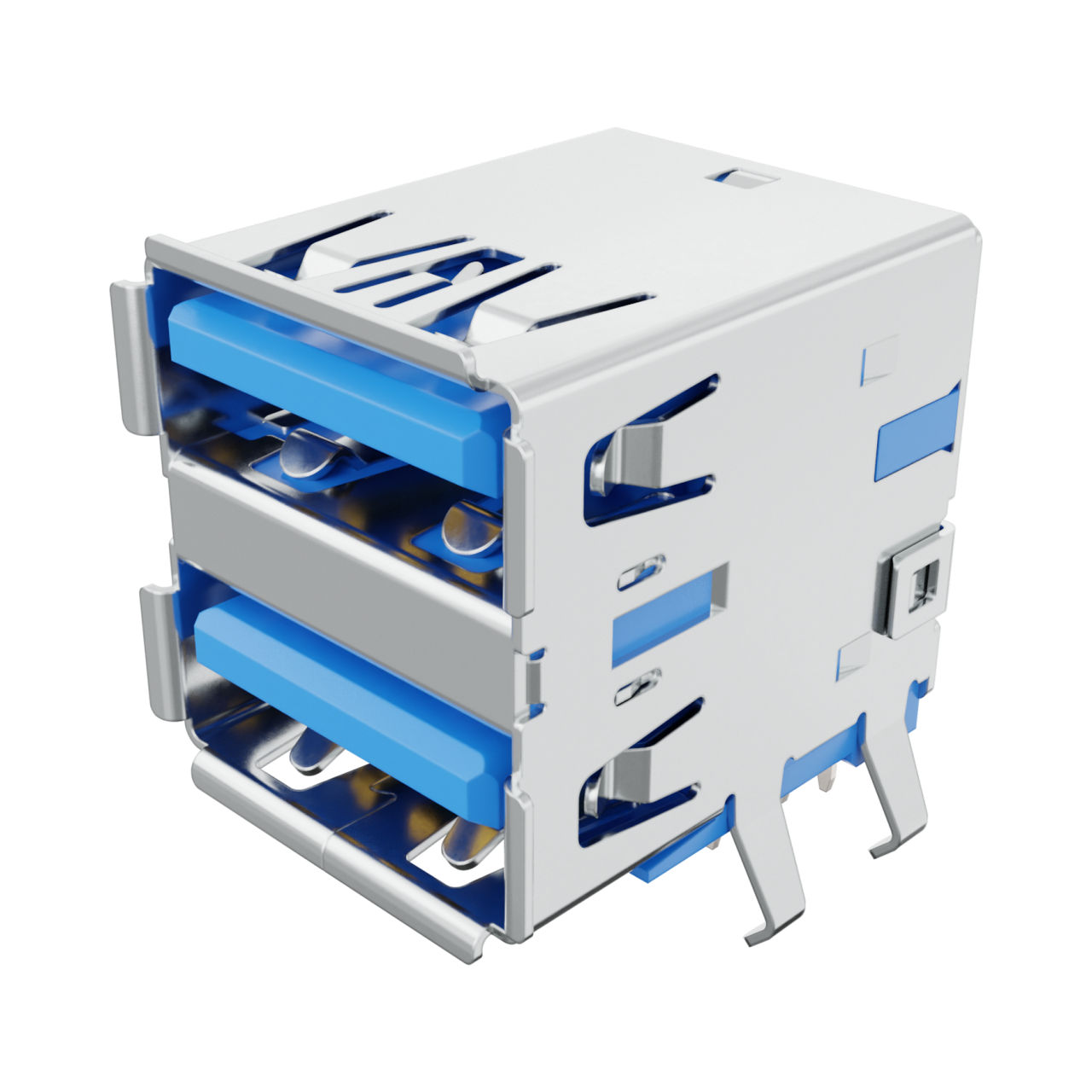

 | Molex 48406-0003 | Universal Serial Bus (USB 3.0) I/O Receptacle, Dual Port Stacked, Right-Angle, Type A, High-Temperature Blue Nylon, 15 | |
