| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 212528-0200 |
| Series: | 212528 - Micro-Fit+ |
| Amperage: | 12.5 A |
| Housing Material: | Liquid Crystal Polymer |
| Number of Rows: | 2 |
| Contact Plating: | Matte Tin |
| Pitch: | 3 mm |
| Voltage: | 600 V AC/DC |
| Orientation: | Right Angle |
| Number of Positions: | 2 |
| Housing Color: | Black |
| Termination Type: | Through Hole |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Power |
| Connector System: | Wire to Board |
| PCB Tail Length: | 3.18 mm |
| Part Aliases: | 2125280200 |
| SKU: | MOL212528-0200 |
| Series: | 212528 |
| Product Name: | Micro-Fit+ |
| Breakaway: | No |
| Circuits (maximum): | 2 |
| Durability (mating cycles max): | 25 |
| First Mate / Last Break: | No |
| Glow-Wire Capable: | Yes |
| Keying to Mating Part: | Yes |
| Lock to Mating Part: | Yes |
| Material - Metal: | High Copper Alloy |
| Material - Plating Termination: | Matte Tin |
| Net Weight: | 0.380/g |
| PCB Thickness - Recommended: | 1.57mm |
| Pitch - Termination Interface: | 3.00mm |
| Polarized to Mating Part: | Yes |
| Polarized to PCB: | Yes |
| Shrouded: | Yes |
| Surface Mount Compatible (SMC): | No |
212528-0200
| Heilind Number: | MOL212528-0200 |
| Manufacturer: | Molex |
| Manufacturer Number: | 212528-0200 |
| ECAD Model: | |
Description:
Micro-Fit+ Right-Angle Header, 3.00mm Pitch, Dual Row, 2 Circuits, Matte Tin (Sn) Plating, UL 94V-0, Glow-Wire Capable, Black
More >>Specifications
Detailed Description
Introducing the 212528-0200, a high-performance Micro-Fit+ Right-Angle Header designed for robust power applications. With a 3.00mm pitch and dual-row configuration, this header ensures secure and reliable connections in demanding environments. Featuring matte tin (Sn) plating and UL 94V-0 certification, it guarantees safety and durability. The glow-wire capable housing, made of black liquid crystal polymer, further enhances its reliability. With 2 circuits and a 12.5A amperage rating, this connector is suitable for a wide range of power-intensive applications. Its through-hole termination and 600V AC/DC voltage rating provide easy installation and excellent electrical performance. Operating in temperatures ranging from -40 to 105°C, the 212528-0200 is a dependable solution for your power connectivity needs. This product is RoHS compliant.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

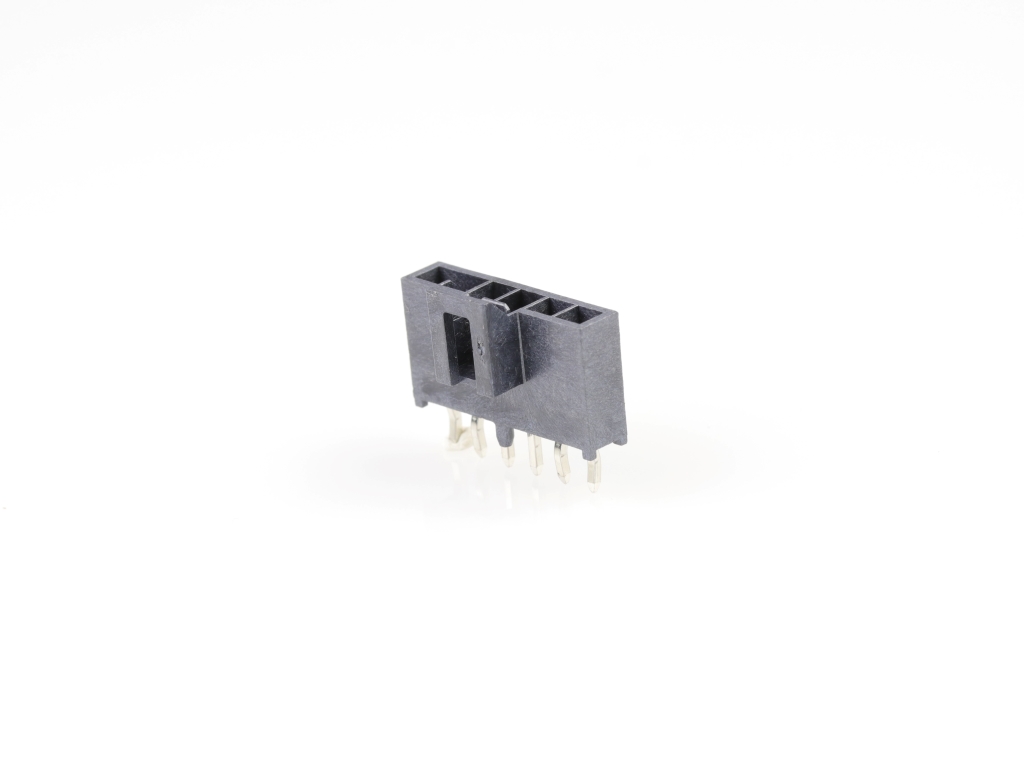

 | Molex 105309-1106 | Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Single Row, 6 Circuits, with Kinked Pins, Tin (Sn) Plating, Black |  |
