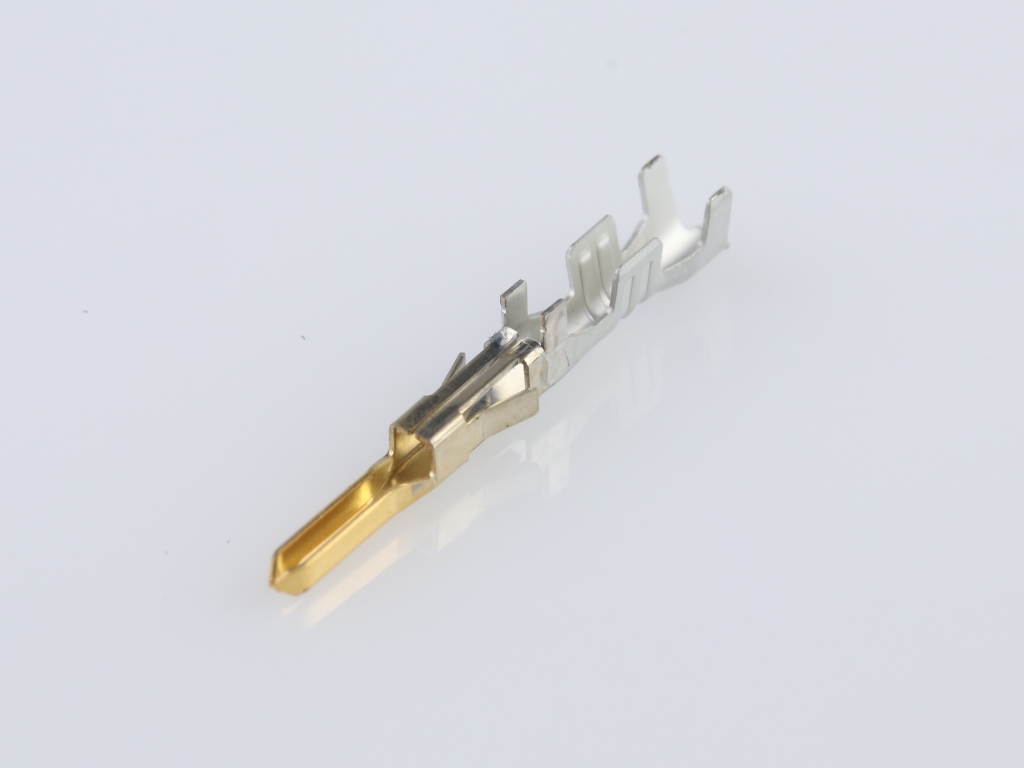

203070-4141
Mini-Fit TPA2 Male Crimp Terminal, Copper Alloy, Post-Plated Gold (Au), 18-20 AWG, 2.10-2.85mm Insulation Diameter, Reel
Part Aliases: Molex 2030704141
The Mini-Fit Sigma, a high-performance male crimp terminal designed for Mini-Fit TPA2 connectors. Constructed from durable copper alloy and featuring post-plated gold (Au) for enhanced conductivity, this terminal is suitable for 18-20 AWG wires with insulation diameters ranging from 2.10-2.85mm. With a current rating of 13 A and a voltage capacity of 600 V AC/DC, it is ideal for power applications. The gold-plated contact mating area ensures reliable connections, with a mating cycle of 30 for extended durability. RoHS compliant and available in a convenient reel packaging, the Mini-Fit Sigma is a dependable solution for your connectivity needs.
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 203070-4141 |
| Series: | 203070 - Mini-Fit TPA2 |
| Amperage: | 13 A |
| Connector Type: | Mini-Fit TPA2 |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | Copper Alloy |
| Voltage: | 600 V AC/DC |
| Packaging: | Reel |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | 2.5 µm |
| Mating Cycles: | 30 |
| Contact Termination Plating Thickness: | 2.5 µm |
| Wire Size: | 18 AWG, 20 AWG |
| Contact Termination Plating: | Gold |
| Wire Insulation Diameter: | 2.1 - 2.85 mm |
| Product Name: | Mini-Fit Sigma |
| Part Aliases: | 2030704141 |
| SKU: | MOL203070-4141 |
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
