| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 201846-0040 |
| Series: | 201846 - MultiCat |
| Amperage: | 40 A |
| Connector Type: | MultiCat |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel |
| Voltage: | 1000 V AC |
| Packaging: | Bag |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold over Nickel Phosphorus |
| Contact Mating Area Plating Thickness: | .1 µm |
| Mating Cycles: | 500 |
| Contact Termination Plating Thickness: | .2 µm |
| Wire Size: | 10 AWG, 5.26 - 8.36 mm², 8 AWG |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Gold over Nickel |
| Wire Insulation Diameter: | 4.03 - 5.84 mm |
| Part Aliases: | 2018460040 FPG003S204 |
| SKU: | MOL201846-0040 |
201846-0040
| Heilind Number: | MOL201846-0040 |
| Manufacturer: | Molex |
| Manufacturer Number: | 201846-0040 |
| Datasheet: | Test Summary |
| ECAD Model: | |
Specifications
Detailed Description
The MultiCat Receptacle Terminal 201846-0040 is a high-performance female connector designed for 8-10 AWG wires, offering secure crimp or compression termination. With a durable copper alloy construction and gold over nickel phosphorus plating, this terminal ensures reliable conductivity in power applications, rated for up to 40 A and 1000 V AC. Its low mating cycles of 500 guarantee long-lasting performance, while accommodating wire sizes of 8-10 AWG (5.26 - 8.36 mm²) with insulation diameters of 4.03 - 5.84 mm. RoHS compliant and suitable for wire-to-wire or wire-to-board connections, this MultiCat terminal is a versatile and dependable solution for various industrial needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19070-0009 | InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire |  |

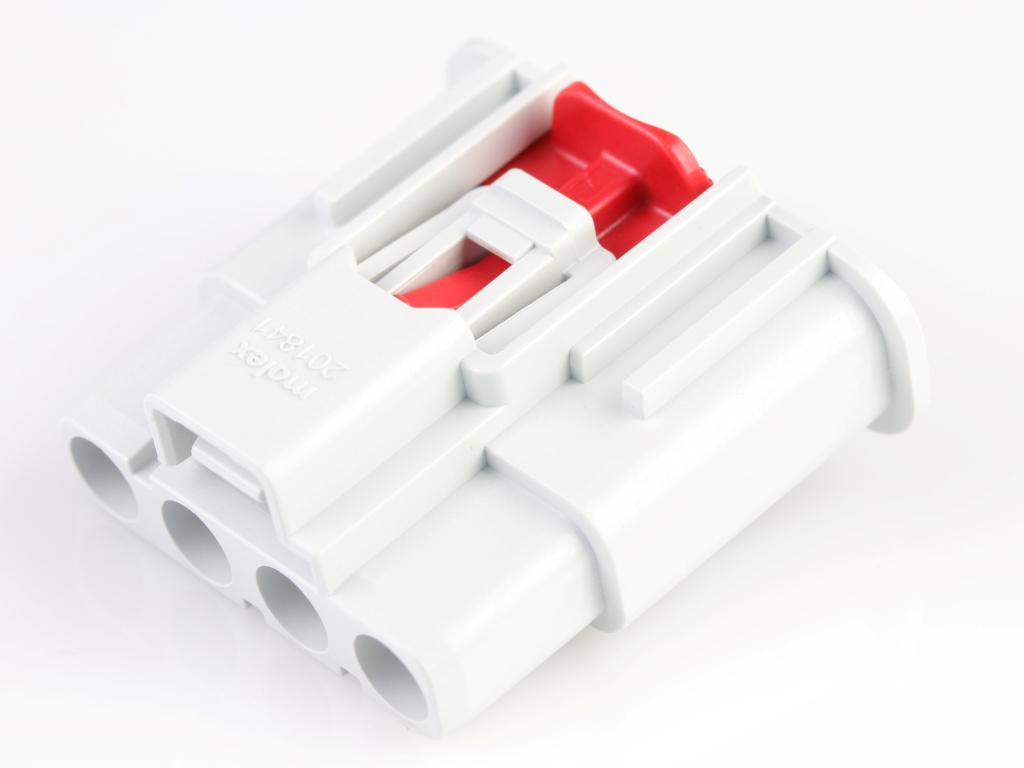

 | Molex 201841-0141 | MultiCat Inline Receptacle Housing with CPA, 4 Circuits, Gray, Key B | |

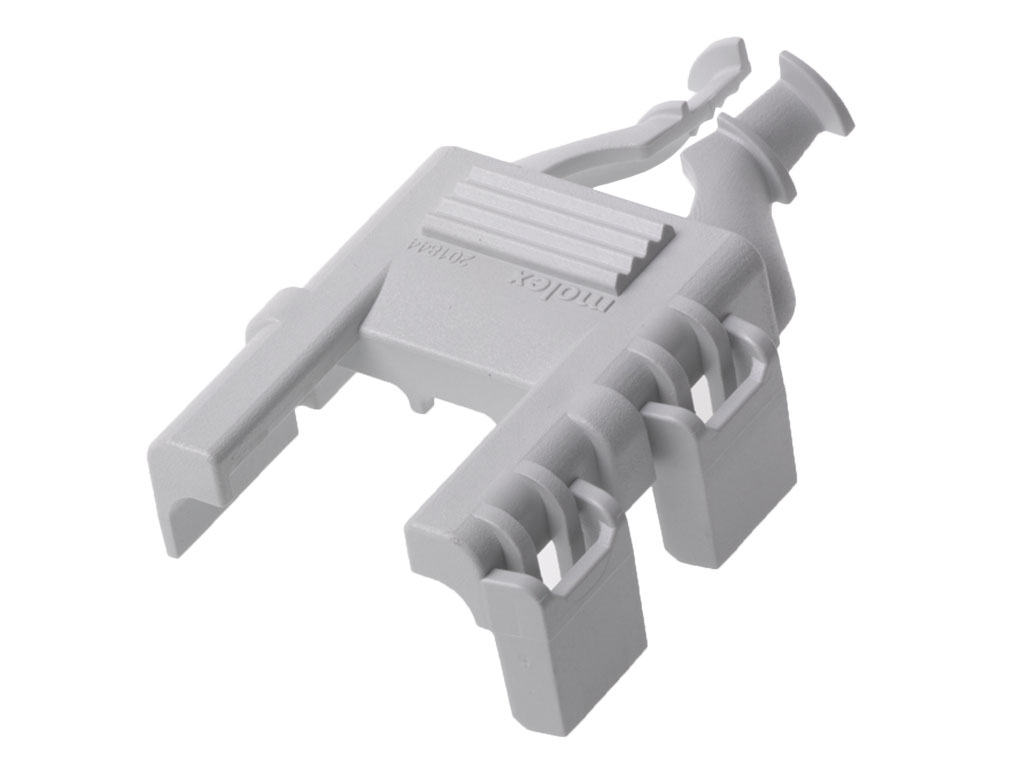

 | Molex 201844-0041 | MultiCat Hermaphroditic Backshell, 4 Circuits, 8-10 AWG, Gray | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 07/15/2023 | 513774 - Packaging Method/Quantity Changing. The purpose of the change is to align , commanise and make the MLQ and DU global. As a result there is DU change, however the Fit, Form and Function remains the same. The Reason for the change is a corrective action, in that to reduce the incoherence caused between DU and MLQ. The Change is implemented by standardizing the MLQ and DU. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 201846-0040 |
| Other Names: | 2018460040 FPG003S204 |
