19602-0006

MOL19602-0006
Heilind Number:MOL19602-0006
Manufacturer:Molex
Manufacturer Number:19602-0006
Datasheet:Drawing
ECAD Model:
3D Model

Description:

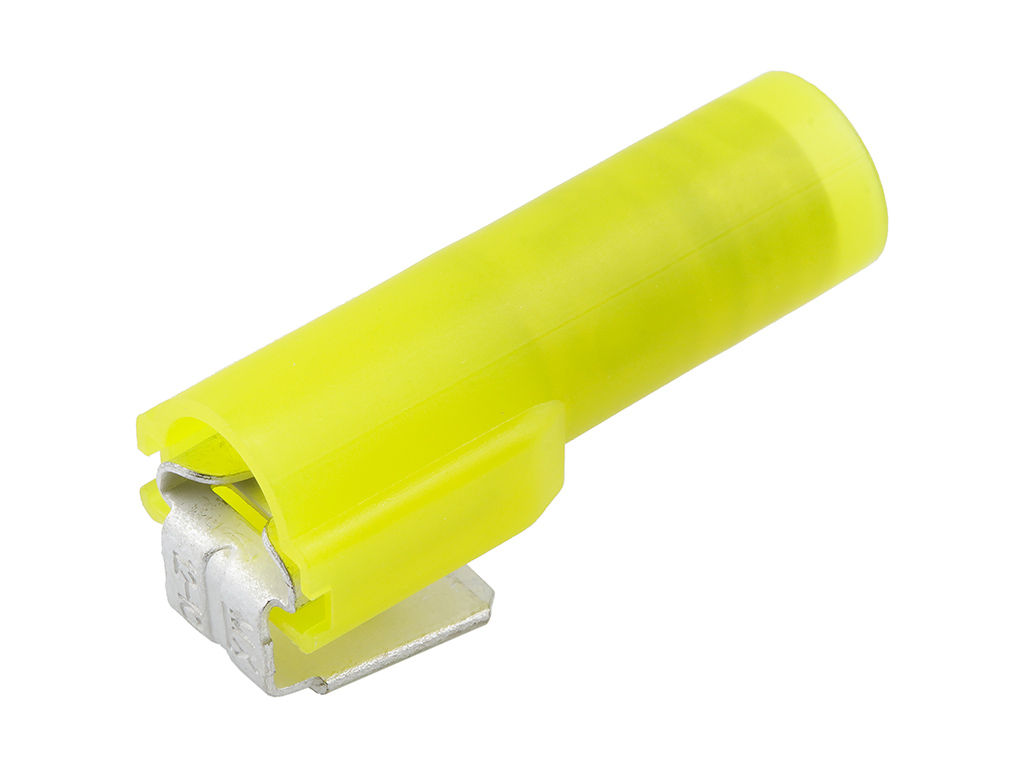

Avikrimp Fully Insulated Piggyback Quick Disconnect, Tab 6.35 x 0.81mm, 10-12 AWG, Loose Piece in Bag

More >>

Specifications

AttributeValue
Product Category:
Crimp Terminals, Housings, Splices, & Lugs Crimp Terminals, Housings, & Splices
Manufacturer:Molex
Manufacturer Part Number:Molex 19602-0006
Color:Yellow
Series:19602 - Avikrimp
Connector Type:Avikrimp, Quick Disconnect
Gender:Female
Contact Material:Brass
Contact Plating:Tin
Voltage:600 V
Material:Brass
Insulation Material:Nylon (PA)
Compatible Tab Width:6.35mm
Compatible Tab Thickness:0.81mm
Orientation:Straight
Insulation Type:Full
Packaging:Bag
Contact Mating Area Plating:Tin
Polarized to Mate:No
Wire Size:10 AWG, 12 AWG, 1.3 - 2 mm²
UL Agency Certification:E79133
Contact Termination Plating:Tin
Wire Insulation Diameter:3.53 mm
Glow Wire Capable:No
Lock to Mating Part:No
Material Flammability Standard:94V-2
Part Aliases:0196020006 C-5319
SKU:MOL19602-0006

Detailed Description

Introducing the 19602-0006 Avikrimp Fully Insulated Piggyback Quick Disconnect Tab, a high-quality female connector designed for 10-12 AWG wires. Constructed with durable brass and tin plating, this yellow connector ensures reliable conductivity up to 600V. Featuring a nylon insulation for added safety, it accommodates a 6.35 x 0.81mm tab with a straight orientation. With UL agency certification E79133 and RoHS compliance, this product guarantees quality and environmental responsibility. Perfect for various applications, from automotive to industrial, the 19602-0006 offers efficient wire termination with easy installation, making it a essential component in any electrical system.
