| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19418-0008 |
| Color: | Black |
| Series: | 19418 - MX150L |
| Amperage: | 18 A |
| Connector Type: | MX150L |
| Gender: | Receptacle |
| Number of Contacts: | 2 |
| Number of Rows: | 1 |
| Pitch: | 5.84 mm |
| Packaging: | Bag |
| Operating Temperature Range: | -40 - 125 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board, Wire to Wire |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E152602 |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0194180008 |
| SKU: | MOL19418-0008 |
19418-0008
| Heilind Number: | MOL19418-0008 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19418-0008 |
| Datasheet: | Application Specification |
| ECAD Model: | |
Specifications
Detailed Description
The MX150L 2 Circuit Receptacle is a high-performance connector designed for 18-22 AWG wires. Featuring a CPA for secure connections, this black receptacle is rated for 18 A of power. With two contacts in a single row, it has a pitch of 5.84 mm, suitable for various applications. Certified by CSA and UL, it ensures reliable performance even in harsh environments with an operating temperature range of -40 to 125 °C. Its polarized design and locking feature guarantee proper mating, while its RoHS compliance reflects its environmental responsibility. Whether for wire-to-wire or wire-to-board connections, this connector is a dependable choice for your projects.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 171692-0206 | Mega-Fit Tangless TPA-Capable Receptacle Housing, Dual Row, 6 Circuit, UL 94V-0, Glow-Wire Capable, Black |  |
 | Molex 19070-0075 | RING INSULKRIMP (BB-225-14X) | |
 | Molex 19073-0190 | Avikrimp Ring Tongue Terminal for 10 to 12 AWG Wire, Stud Size 1/4 (M6), Length 31.95mm, Mylar Tape Carrier | |
 | Molex 19221-0235 | Compression Style Ring Tongue Terminal for 2 AWG Wire, Stud Size 3/8 (M9), Tin Plated | |
 | Molex 19418-0005 | MX150L 4 Circuit Receptacle for 18-22 AWG Wire, with CPA, Black | |
 | Molex 19419-0005 | MX150L 4 Circuit Plug for 18-22 AWG Wire | |
 | Molex 19419-0015 | MX150L 10 Circuit Plug for 18-22 AWG Wire | |
 | Molex 19420-0004 | MX150L Female Terminal for 18-22 AWG Wire, Gold Plated, Metal Strip Carrier | |
 | Molex 39-01-2020 | Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-2, Natural | |
 | Molex 39-01-2040 | Mini-Fit Jr. Receptacle Housing, Dual Row, 4 Circuits, UL 94V-2, Natural | |

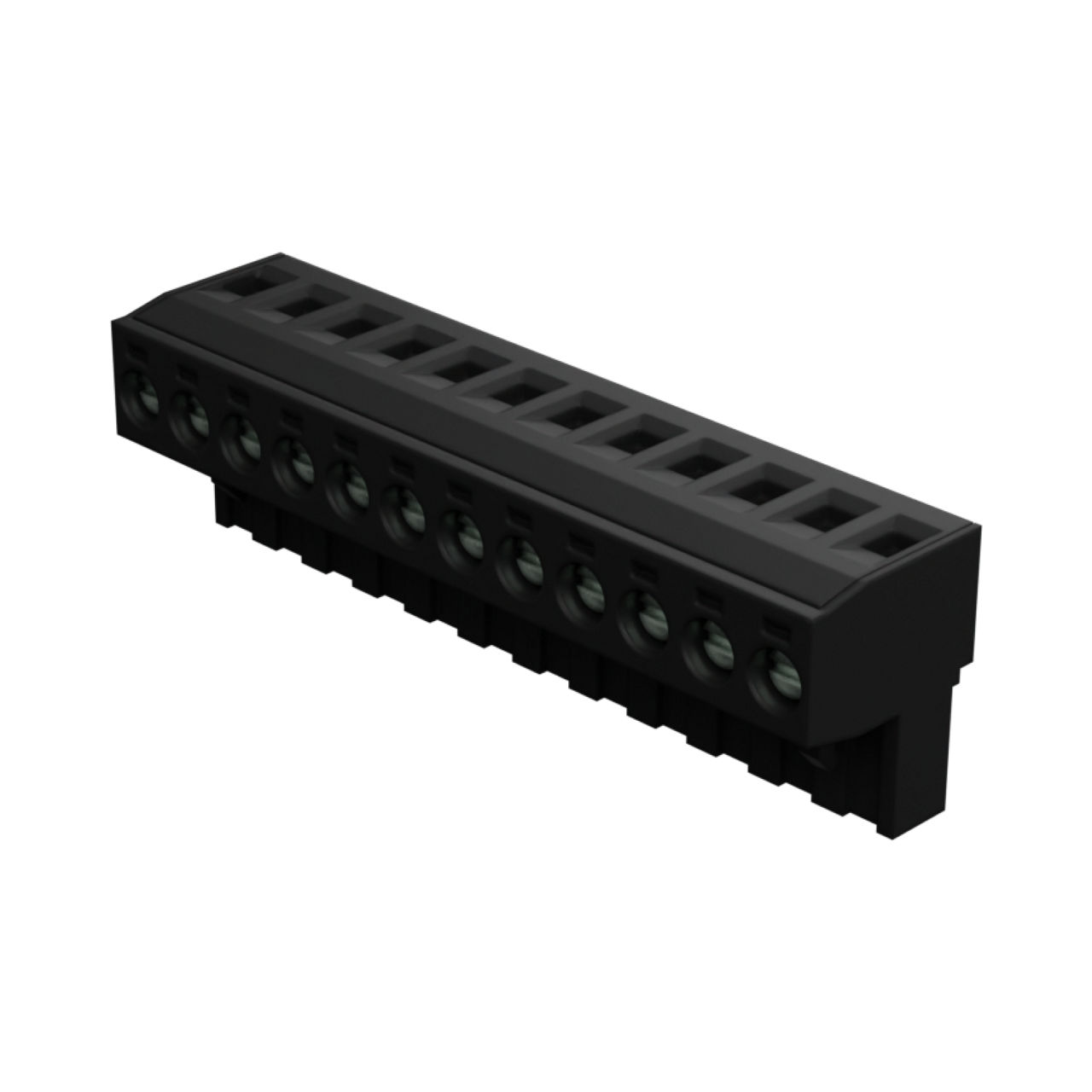

 | Molex 39530-0012 | 5.08mm Pitch Eurostyle Horizontal Plug, 12 Circuits | |
