19418-0004

Heilind Number:	MOL19418-0004
Manufacturer:	Molex
Manufacturer Number:	19418-0004
Datasheet:	Application Specification
ECAD Model:

Description:

MX150L 4 Circuit Receptacle for 14-16 AWG Wire, with CPA, Black

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 19418-0004
Color:	Black
Series:	19418 - MX150L
Amperage:	18 A
Connector Type:	MX150L
Gender:	Receptacle
Number of Contacts:	4
Number of Rows:	2
Pitch:	5.84 mm
Packaging:	Bag
Operating Temperature Range:	-40 - 125 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Board, Wire to Wire
CSA Agency Certification:	LR18689
UL Agency Certification:	E152602
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Material Flammability Standard:	94V-0
Part Aliases:	0194180004
SKU:	MOL19418-0004

Detailed Description

Introducing the Molex MX150L 4 Circuit Receptacle, a high-performance connector designed for 14-16 AWG wires. Featuring a CPA for added security, this black receptacle is UL and CSA certified, ensuring quality and reliability. With a current rating of 18 A and operating temperature range of -40 to 125 °C, it is perfect for power applications. The polarized design and locking feature guarantee a secure connection. Ideal for wire-to-wire or wire-to-board setups, this connector is RoHS compliant and in stock for immediate shipping. Trust the MX150L for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 19054-0063	InsulKrimp Ring Tongue Terminal for 14-16 AWG Heavy Duty Wire
	Molex 19070-0109	InsulKrimp Ring Tongue Terminal for 10-12 AWG Wire

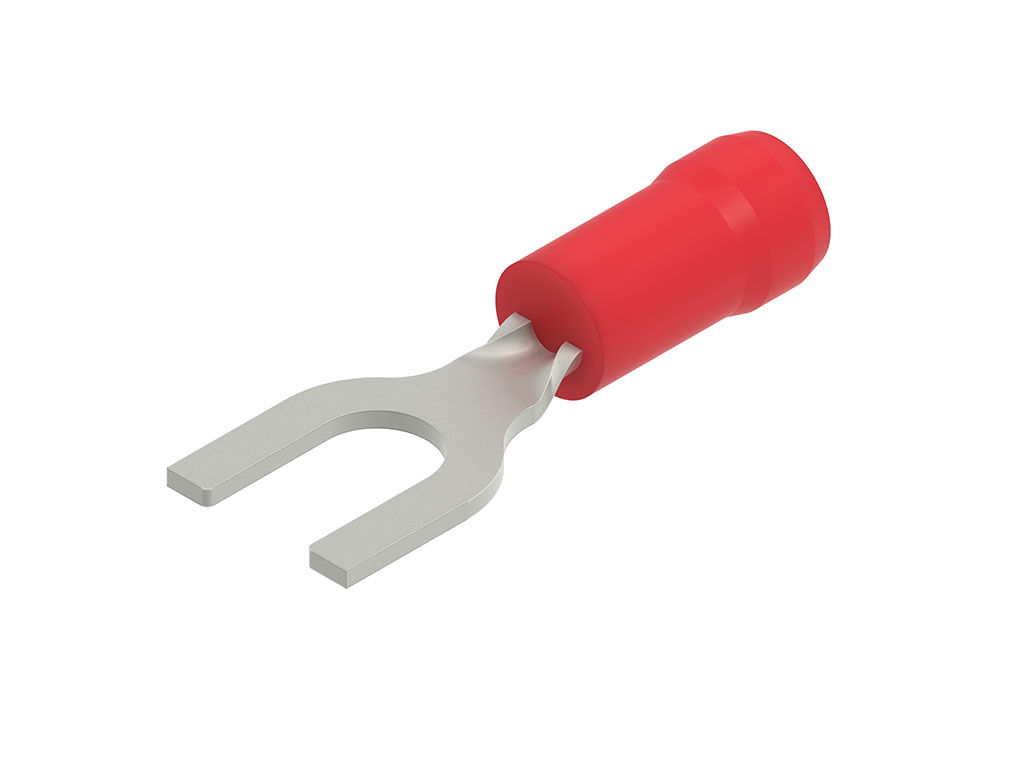

	Molex 19198-0005	Avikrimp Spade Tongue Terminal for 22-18 AWG Wire, Stud Size 8 (M4)
