| Attribute | Value |
|---|---|
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19417-0024 |
| Part Aliases: | 0194170024 |
| SKU: | MOL19417-0024 |
19417-0024
| ICC Number: | MOL19417-0024 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19417-0024 |
| ECAD Model: | |
Description:

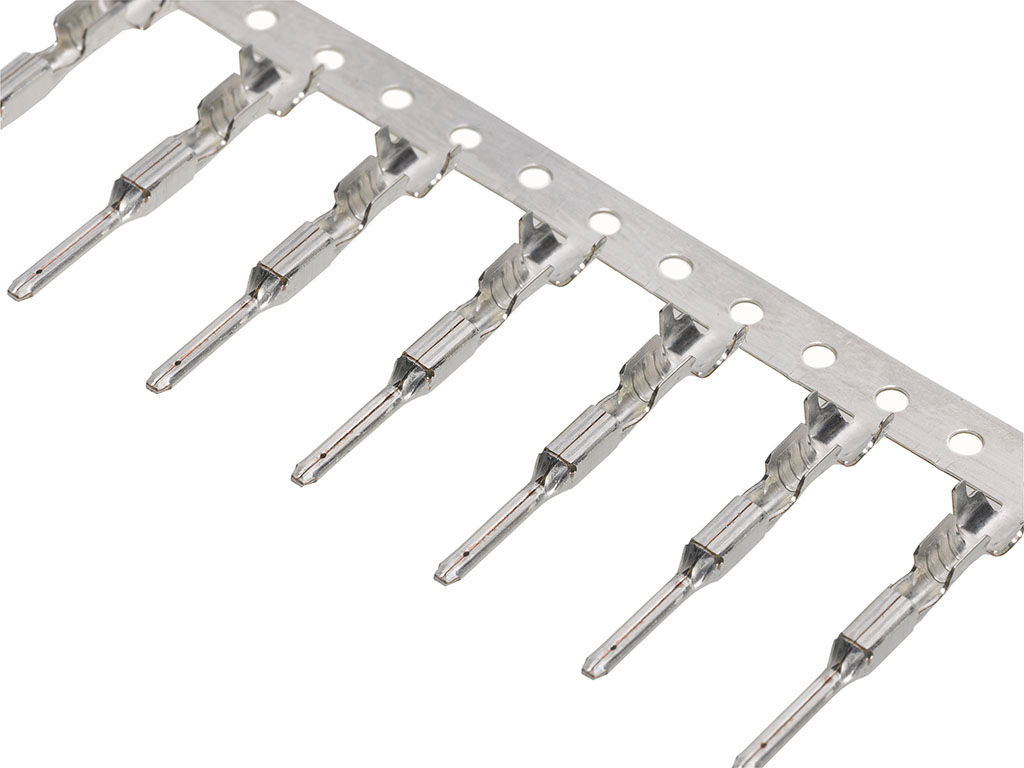

MX150L Male Terminal for 22-18 AWG Wire, Length 25.40mm, Tin Plated, Metal Strip Carrier
More >>Specifications
Detailed Description
Introducing the Molex MX150L Male Terminal, designed for secure and efficient power connections in automotive applications. With a Metal Strip Carrier for easy handling, this terminal is compatible with 18-22 AWG wires, featuring a crimp or compression termination method for reliable contact. Constructed with High Performance Alloy (HPA) and Tin plating, it ensures durability and excellent conductivity. Measuring 25.40mm in length, it accommodates wire insulation diameters ranging from 2.36 to 2.74mm. Certified by LR18689 and E152602, this RoHS-compliant terminal guarantees quality and safety. Perfect for wire-to-wire connections, it is ideal for use in various power circuit applications. With 25 mating cycles and in-stock availability, the MX150L is the perfect choice for your automotive connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

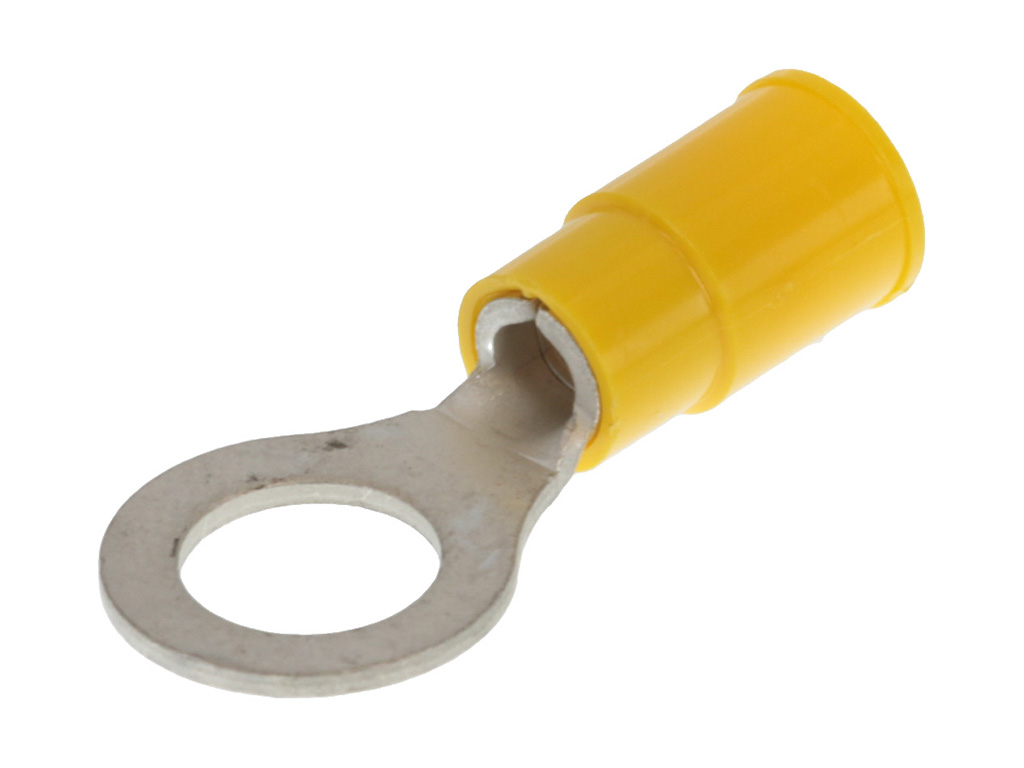

 | Molex 19070-0137 | InsulKrimp Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 5/16" (M8), Length 31.60mm, Yellow, Tape |  |
 | Molex 19099-0010 | InsulKrimp Snap Spade Terminal for 22-18 AWG Wire, Stud Size 5 (M3)-6, Mylar Tape Carrier, Red | |
 | Molex 19099-0028 | InsulKrimp Snap Spade for 16-14 AWG Wire, Stud Size 6 (M3.5), Mylar Tape Carrier, Blue | |

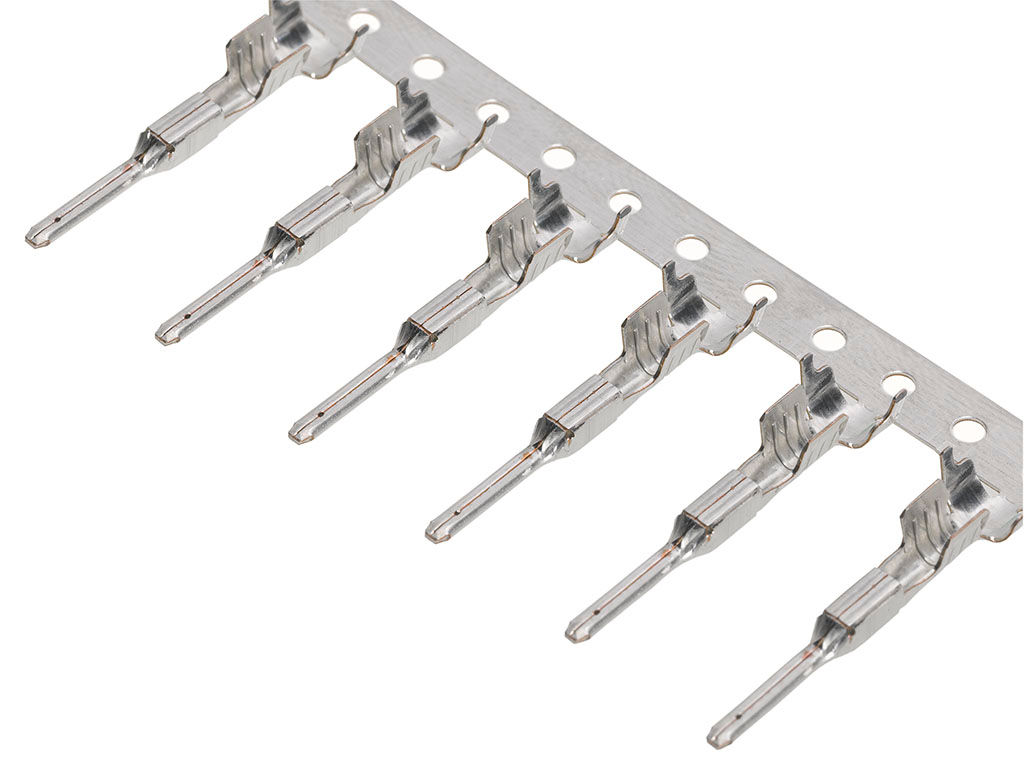

 | Molex 19417-0011 | MX150L Male Terminal for 16-14 AWG Wire, Length 25.40mm, Tin Plated, Metal Strip Carrier | |

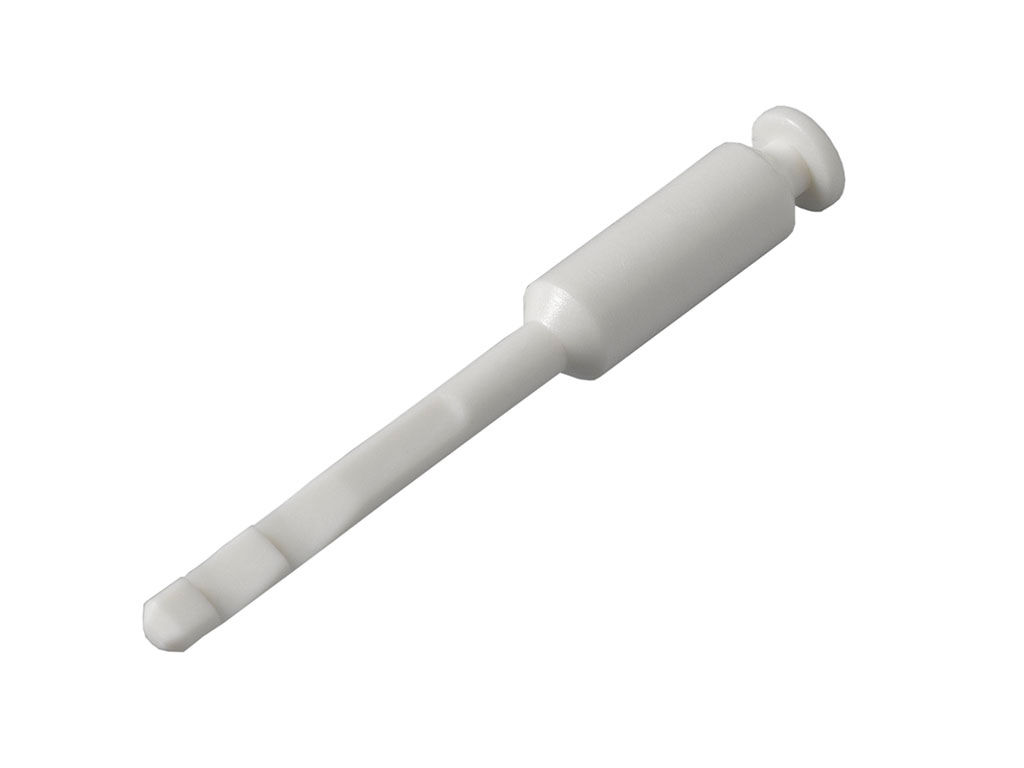

 | Molex 19417-0119 | MX150L Circuit Voiding Key for 22-14 AWG Housings, 38.30mm Length | |
 | Molex 19418-0005 | MX150L 4 Circuit Receptacle for 22-18 AWG Wire, with CPA, Black | |
 | Molex 19418-0018 | MX150L 4 Circuit Receptacle for 22-18 AWG Wire, without CPA, Black | |
 | Molex 19418-0024 | MX150L 10 Circuit Receptacle for 22-18 AWG Wire, without CPA, Black | |
 | Molex 19418-0038 | MX150L 12 Circuit Receptacle for 22-18 AWG Wire, without CPA, Black | |
 | Molex 19419-0015 | MX150L 10 Circuit Plug for 22-18 AWG Wire | |
 | Molex 19420-0002 | MX150L Female Terminal for 22-18 AWG Wire, Tin Plated, Metal Strip Carrier | |

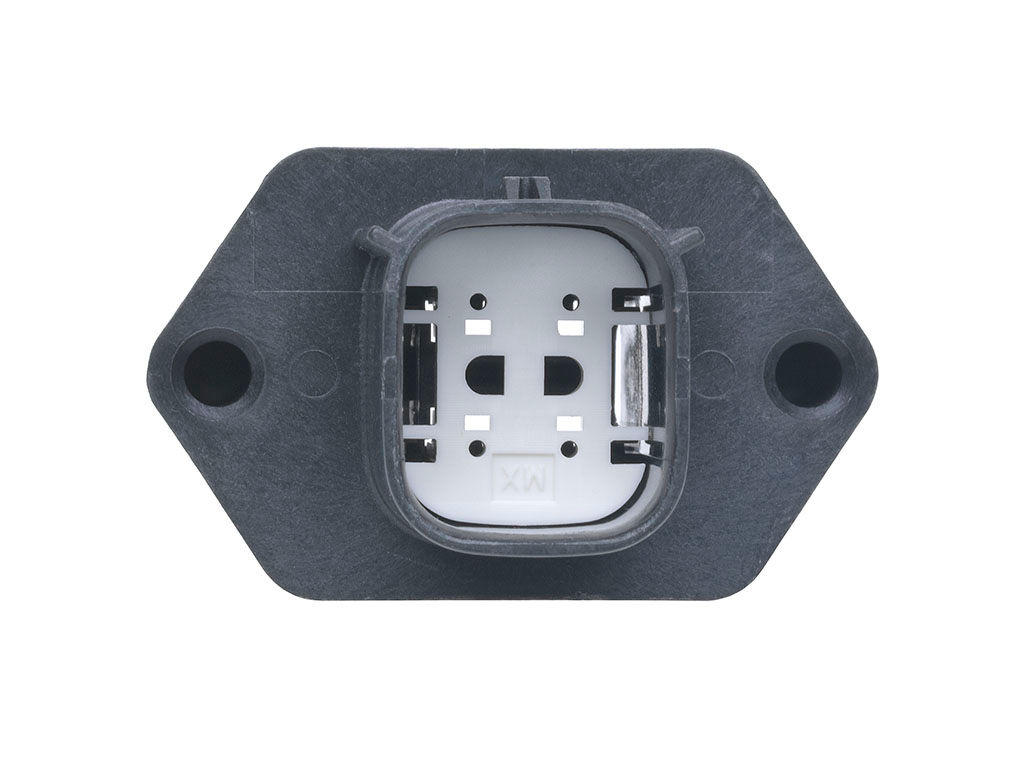

 | Molex 19429-0009 | MX150L 4 Circuit Panel Mount Plug for 22-14 AWG Wire, Rear Mount Flange Assembly, without Gasket, Black | |
 | Molex 19429-0035 | MX150L 4 Circuit Panel Mount Plug for 22-14 AWG Wire, Rear Mount Flange Assembly, with Gasket, Black | |

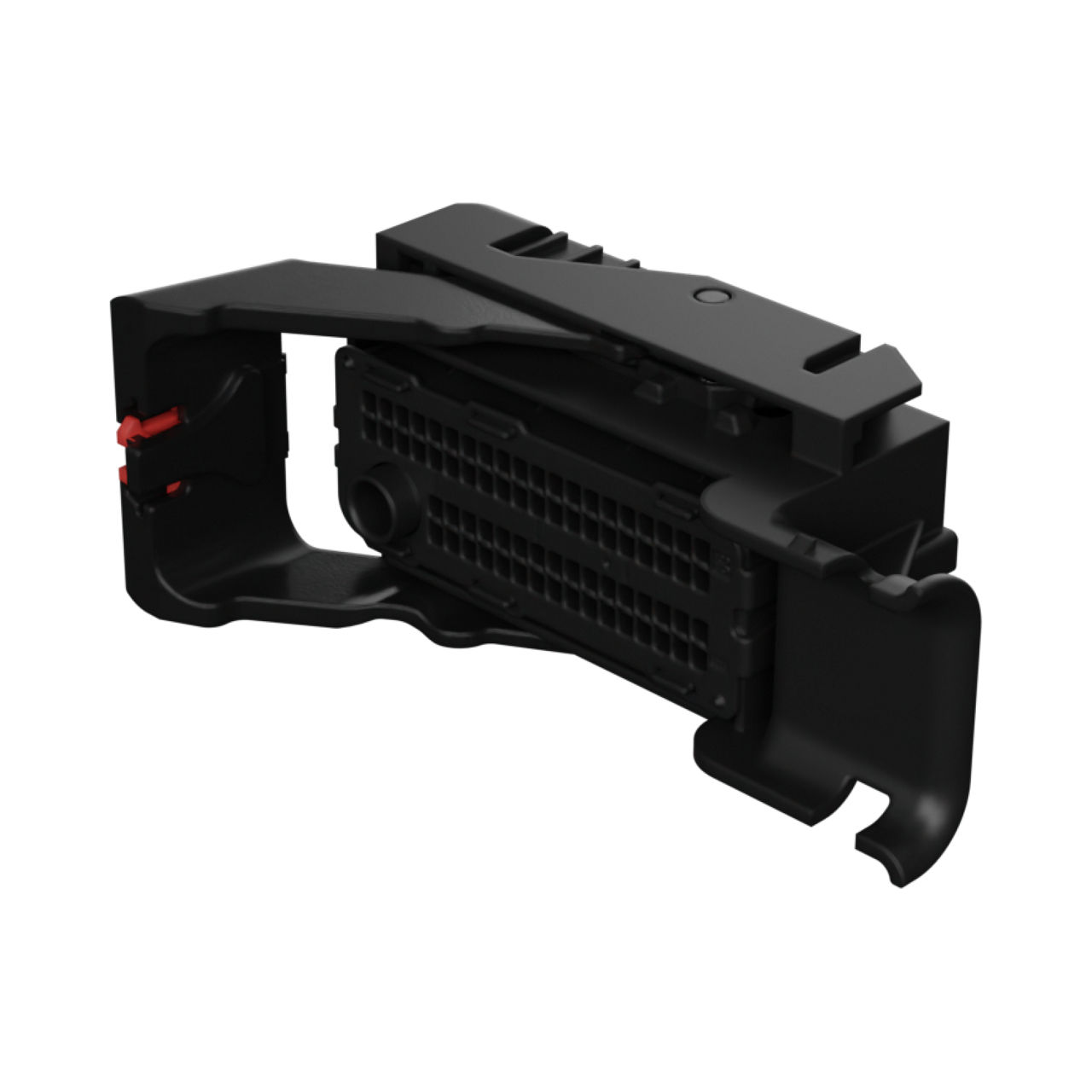

 | Molex 34566-0103 | 2.54mm Pitch, MX123 Female Receptacle Housing, Keying Option A, Wire Dress Option 0, 73 Circuits, Black TPA | |

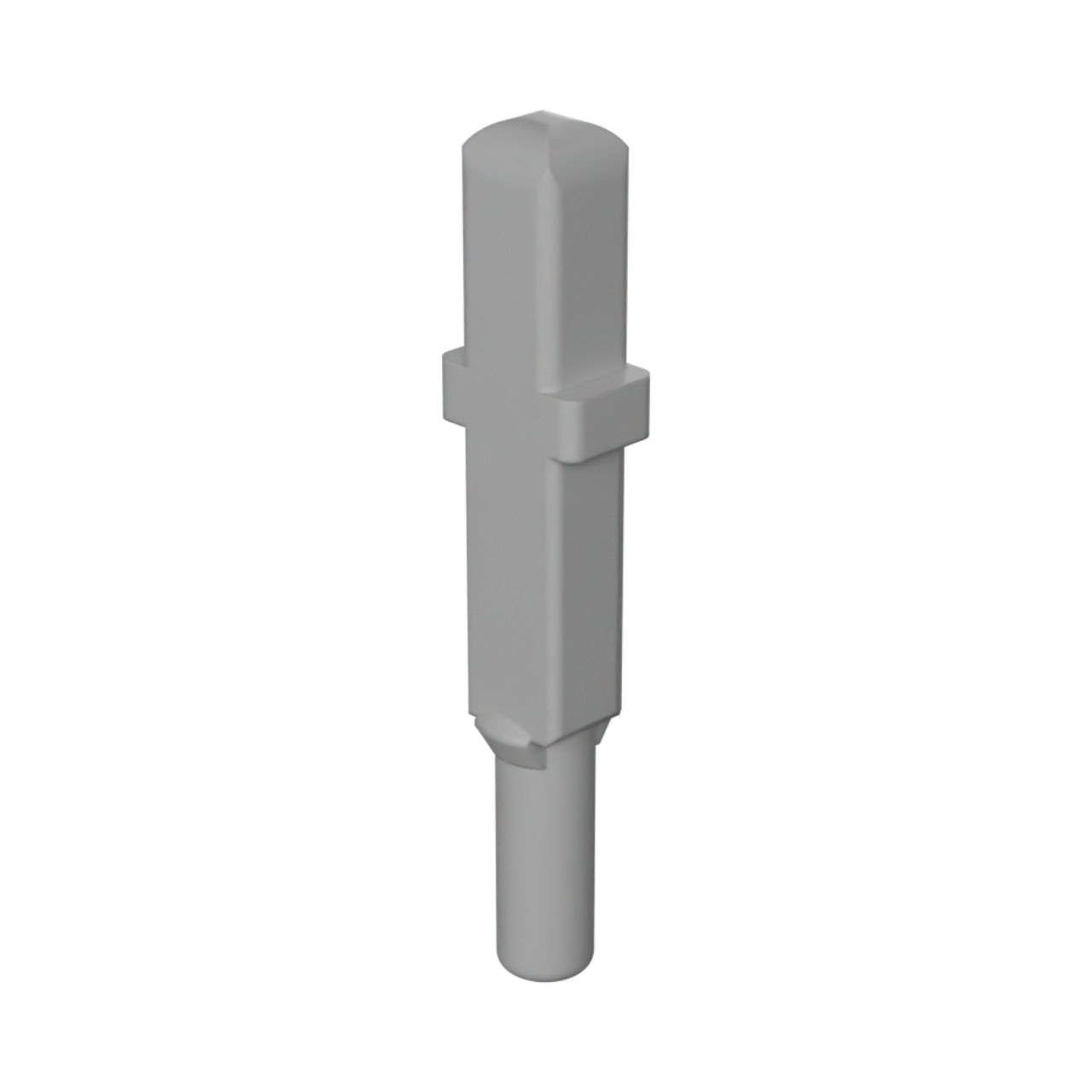

 | Molex 34586-0001 | MX123 0.64mm Grommet Seal Plug | |

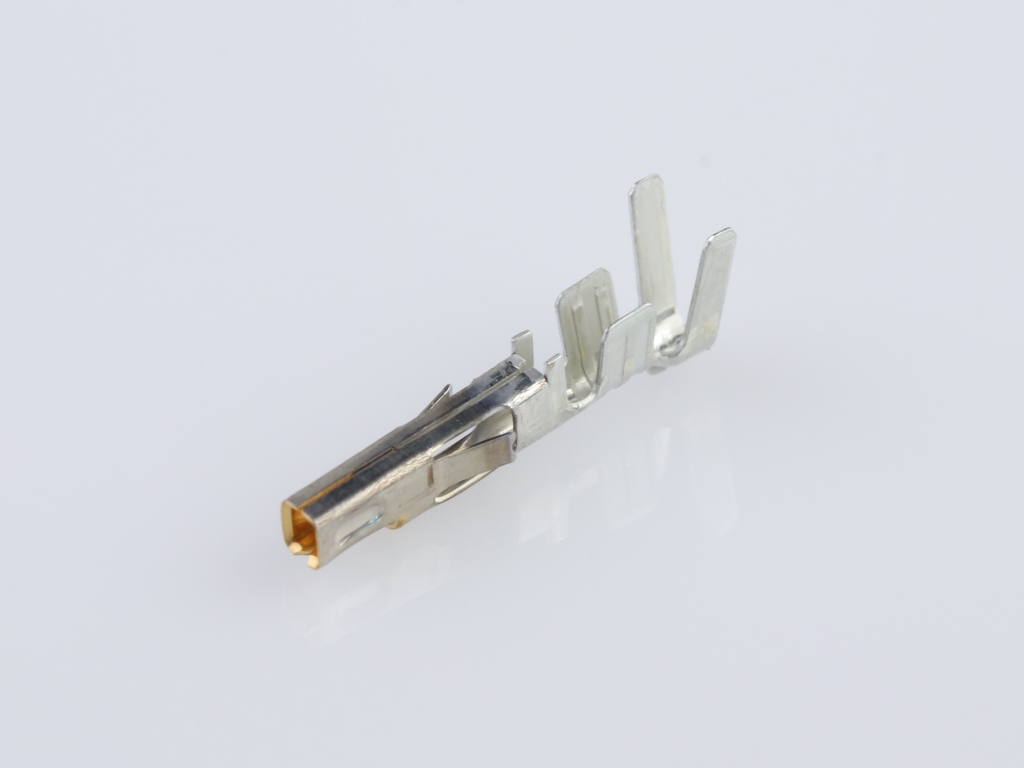

 | Molex 45750-1211 | Mini-Fit Plus Female Crimp Terminal, 20-18 AWG, Copper Alloy, 0.76µm Gold (Au) Selective Plating, Reel | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19417-0024 |
| Other Names: | 0194170024 |
