19276-0009

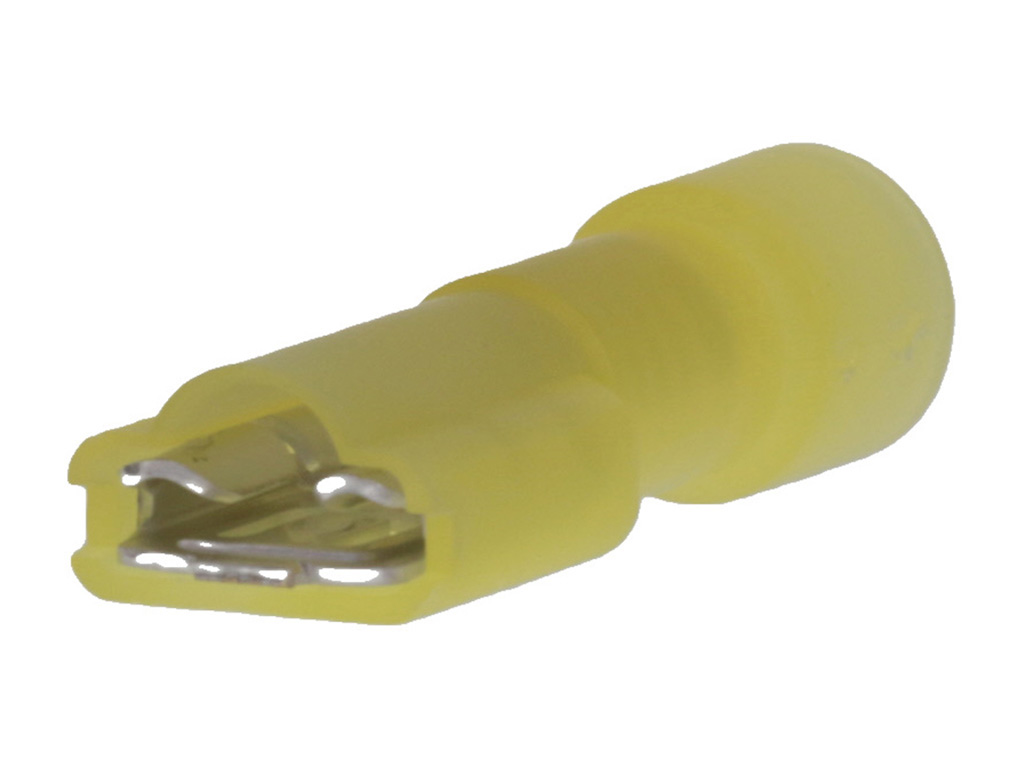

Quixon Quick Disconnect, InsulKrimp Style, Female, Fully Insulated Yellow, 10-12 AWG, Mylar Tap
Part Aliases: Molex 0192760009 Molex C-2293T-LIF
The Quixon Quick Disconnect is a reliable and efficient solution for your electrical connection needs. This InsulKrimp Style Female connector is fully insulated in a vibrant yellow casing, suitable for 10-12 AWG wires with a Mylar Tap. Crafted from durable brass with a tin plating, it ensures a secure and low-resistance contact. With a maximum voltage rating of 600 V, it guarantees safe and reliable performance. Its straight orientation and full insulation make it easy to install in various applications. Certified by CSA and UL, this connector meets high safety and quality standards. Packaged in an embossed tape on reel, it is convenient for bulk installations. Trust the Quixon Quick Disconnect for seamless and durable electrical connections.
Details
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19276-0009 |
| Color: | Yellow |
| Series: | 19276 - InsulKrimp - Quixon |
| Connector Type: | InsulKrimp, Quick Disconnect, Quixon |
| Gender: | Female |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Material: | Brass |
| Insulation Material: | Nylon (PA) |
| Compatible Tab Width: | 7.87 mm |
| Compatible Tab Thickness: | .41 mm |
| Orientation: | Straight |
| Insulation Type: | Full |
| Packaging: | Embossed Tape on Reel |
| Operating Temperature Range: | -55 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 10 AWG, 12 AWG |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E79133 |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 5.97 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0192760009 C-2293T-LIF |
| SKU: | MOL19276-0009 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
Product Change Notice
Product Change Notice
| Effective Date | Description of Change | Download |
|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download |
