| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19216-0011 |
| Color: | Natural |
| Series: | 19216 - Wire Tap |
| Connector Type: | Wire Tap |
| Number of Contacts: | 1 |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 105 °C |
| Voltage: | 600 V |
| Material: | Nylon |
| Insulation Material: | Nylon |
| Operating Temperature Range: | 105 °C |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 1 |
| Mating Cycles: | 25 |
| Polarized to Mate: | Yes |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Stackable: | No |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0192160011 WT-2218 |
| SKU: | MOL19216-0011 |
19216-0011
Specifications
Detailed Description

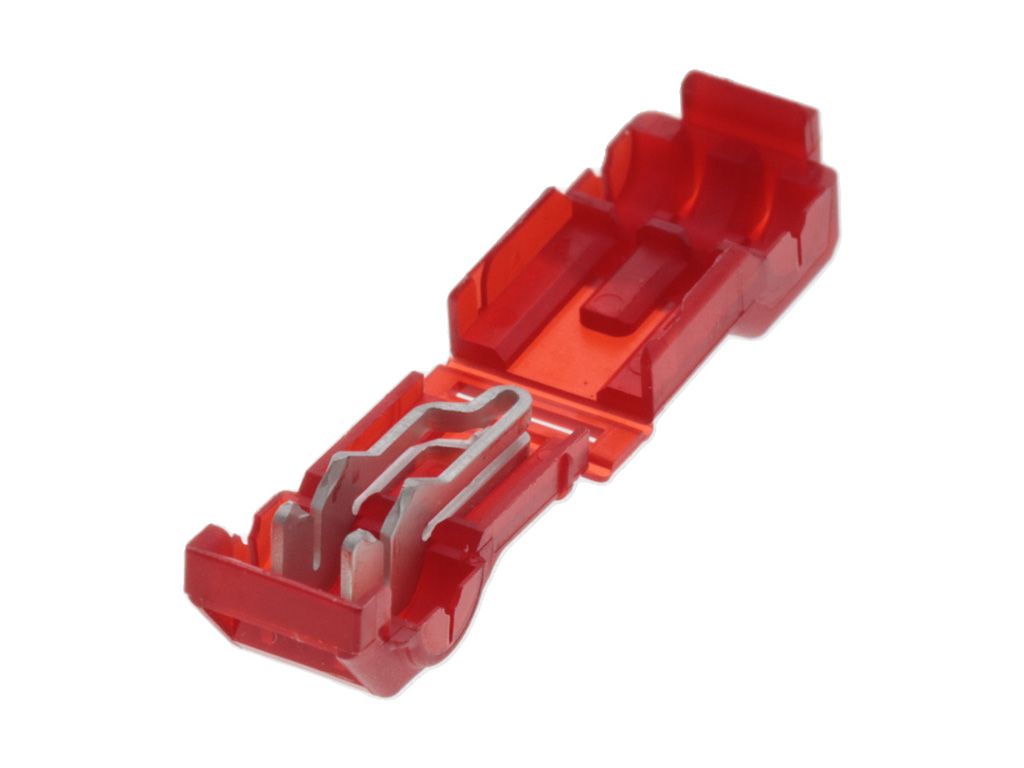

Introducing the 19216-0011 Ultimate Wire Tap, a must-have for your electrical connections. This red wire tap is designed for 18-22 AWG wires, providing a secure and reliable connection for your projects. With a contact material of Phosphor Bronze and contact plating of Tin, you can trust in its durability and conductivity. Operating at a maximum temperature of 105 °C and a voltage of 600 V, this wire tap is suitable for a wide range of applications. Its nylon construction offers excellent insulation, and with RoHS compliance, you can be sure of its environmental responsibility. Don't settle for subpar wire taps - choose the 19216-0011 for professional results every time.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19001-0001 | Avikrimp Quick Disconnect, Male, for 18-22 (0.80-0.35mm?), Box, Tab 6.35 x 0.81mm |  |
 | Molex 33482-4001 | MX150 Sealed Male Connector, Dual Row, 4 Circuits, Polarization A, without Connector Position Assurance, Black | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
| 06/30/2016 | 500550 - Capacity change or tool replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19216-0011 |
| Other Names: | 0192160011 WT-2218 |
