| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19203-0469 |
| Contact Material: | Steel |
| Contact Plating: | Nickel |
| Overall Length: | 0.666 in |
| Terminal Type: | Quick Disconnect |
| Thickness: | 0.016 in |
| Wire Size: | 16 to 14 AWG |
| Barrel Type: | Closed |
| Insulated: | No |
| Operating Temperature: | 483 °C |
| Mounting Angle: | Straight |
| SKU: | MOL19203-0469 |
19203-0469
| ICC Number: | MOL19203-0469 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19203-0469 |
| ECAD Model: | |
Description:

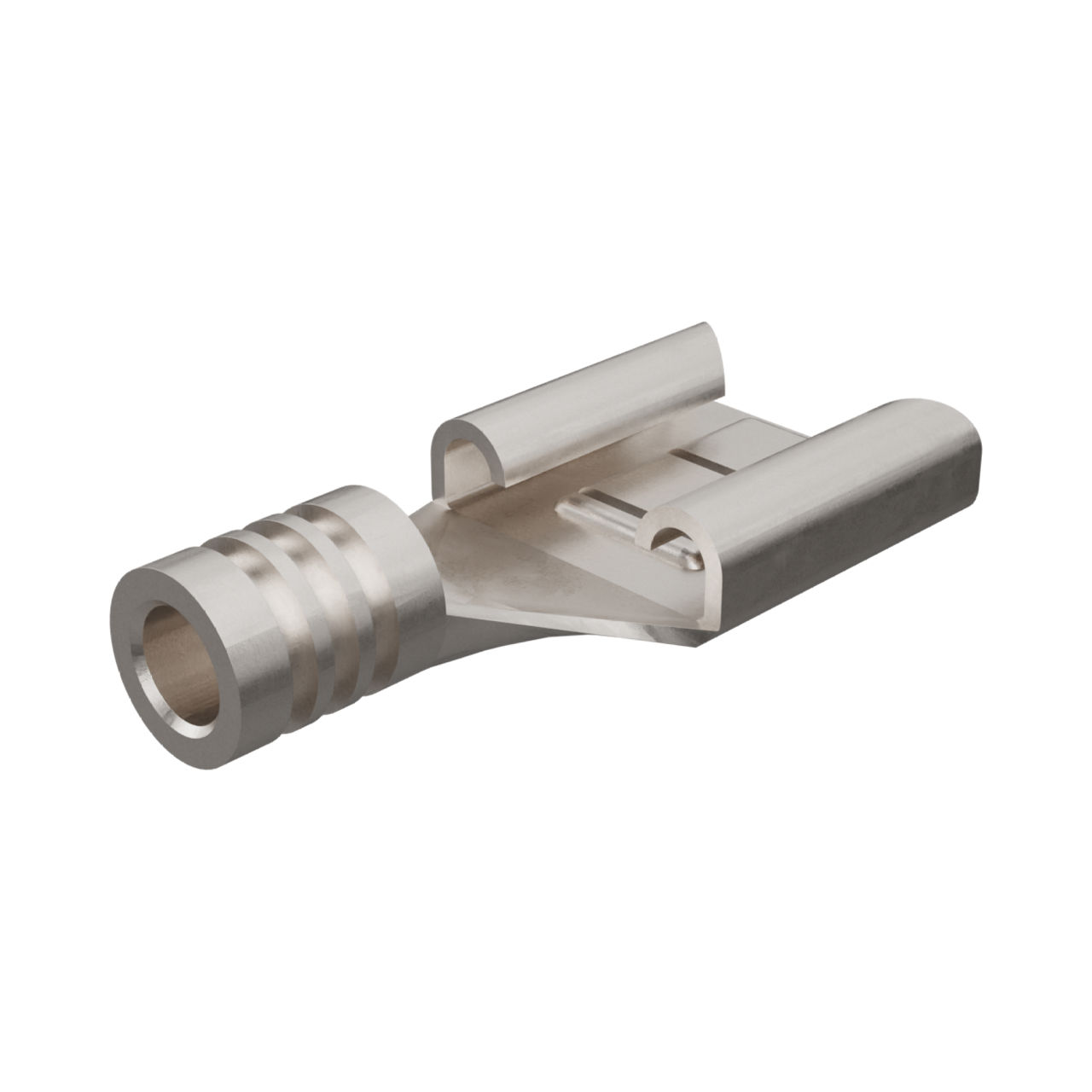

Krimptite Quick Disconnect, Female, Steel, 483°C (900° F), 16-14 AWG, Tab 6.35mm
More >>Specifications
Detailed Description
Introducing the 19203-0469 Krimptite Quick Disconnect, a high-performance female connector designed for durability in extreme environments. Constructed from nickel-plated steel, this connector is rated for temperatures up to 483°C (900°F), making it ideal for industrial applications. With a contact termination plating of nickel and a compatible tab width of 7.7mm, it ensures reliable and secure connections. Suitable for 14-16 AWG wires, this straight orientation connector is tape and reel packaged for convenience. RoHS compliant and not glow wire capable, it guarantees safety and quality. Upgrade your connectivity with the 19203-0469 Krimptite Quick Disconnect.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
