| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19202-0021 |
| Color: | Blue |
| Series: | 19202 - Butt - Funnel Entry |
| Connector Type: | Butt - Funnel Entry |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Insulation Material: | Nylon (PA) |
| Packaging: | Adhesive Tape on Reel |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 14 AWG, 16 AWG |
| UL Agency Certification: | E32244 |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 4.7 mm, 5.05 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0192020021 B-931-DKT |
| SKU: | MOL19202-0021 |
19202-0021
| Heilind Number: | MOL19202-0021 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19202-0021 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Specifications
Detailed Description

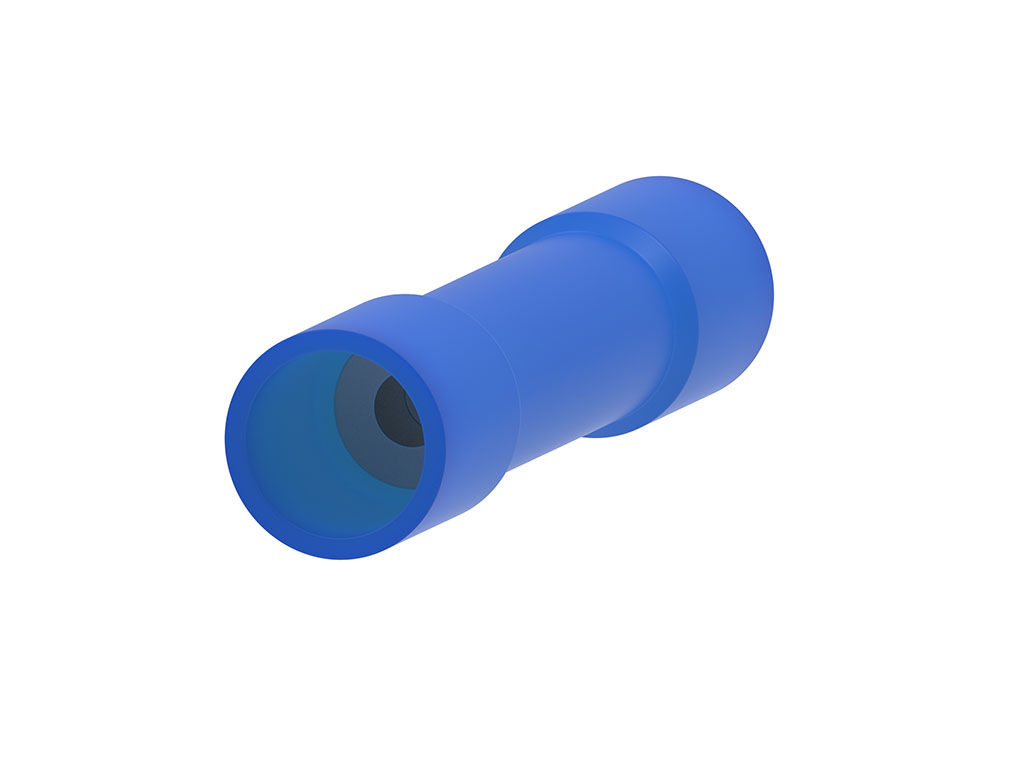

The 19202-0021 Butt-Funnel Entry Splice is a reliable and efficient connector for 14-16 AWG wires, offering a seamless tape and reel packaging for convenience. With a durable copper contact material and tin plating, this blue nylon-insulated splice ensures optimal conductivity and longevity. UL agency certified and featuring a closed barrel design, it guarantees safety and secure connections. Suitable for a wire insulation diameter of 4.7-5.05mm, this splice is a versatile solution for various applications, though not RoHS compliant. Upgrade your crimping setup with the 19202-0021 for professional-grade performance.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19202-0021 |
| Other Names: | 0192020021 B-931-DKT |
