19198-0044

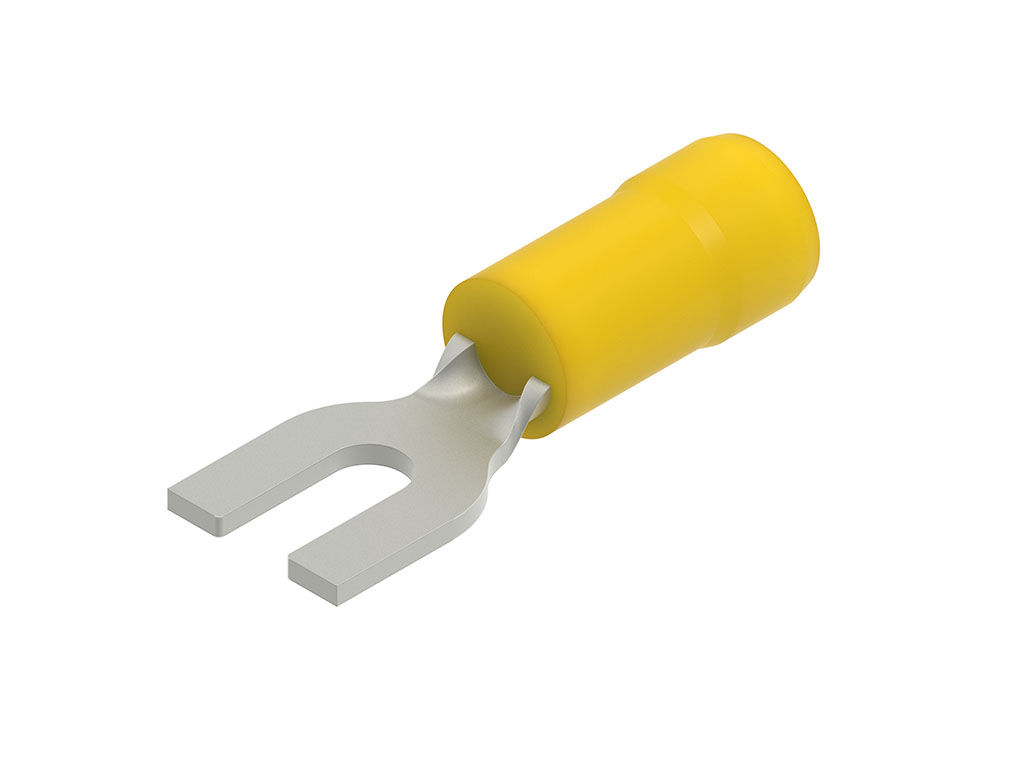

Avikrimp Spade Tongue Terminal for 10-12 AWG Wire

Part Aliases: Molex 0191980044   Molex C-841-06
The Avikrimp Spade Tongue Terminal is a reliable and versatile connector for 10-12 AWG wires, featuring a durable tin contact plating for enhanced conductivity. With a stud size of 5-6 (M3-3.5) and insulation made of Nylon (PA), this terminal is suitable for a wide range of applications. It is UL and CSA agency certified, ensuring safety and quality compliance. The closed barrel design provides secure wire termination, accommodating wire sizes ranging from 12 AWG to 10 AWG. With RoHS compliance and a 2.54 µm tin plating thickness in the contact mating area, this terminal guarantees both performance and environmental responsibility. Elevate your wire connection needs with the Avikrimp Spade Tongue Terminal.
AVAILABILITY
Immediate Shipment:NA
Stock Location:In Stock
Factory Stock:Call for Stock
Factory Lead:
Unit Of Measure:
Minimum/Multiple:1/1
Pricing
CALL: 800.422.3911
Invalid quantity value
Details
Product Category:
Manufacturer:Molex
Manufacturer Part Number:Molex 19198-0044
Series:19198 - Avikrimp
Connector Type:Avikrimp
Contact Plating:Tin
Stud Size:5-6 (M3-3.5)
Insulation Material:Nylon (PA)
Packaging:Bag
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:2.54 µm
Contact Termination Plating Thickness:2.540 µm
Wire Size:10 AWG, 12 AWG, 3.3 - 5 mm²
CSA Agency Certification:LR18689
UL Agency Certification:E32244
Wire Insulation Diameter:5.7 mm
Barrel Type:Closed
Material Flammability Standard:94V-0
Part Aliases:0191980044 C-841-06
SKU:MOL19198-0044

Environmental Initiative Details

Environmental Initiative:RoHS
Compliant:Unknown
Date of this Information:Unknown
Notes:
