| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19193-0222 |
| Series: | 19193 - VersaKrimp |
| Connector Type: | VersaKrimp |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Stud Size: | 5/16" (M8) |
| Insulation Material: | None |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 6 AWG |
| Barrel Type: | Closed - Brazed |
| Part Aliases: | 0191930222 E-357-56T |
| SKU: | MOL19193-0222 |
19193-0222
Specifications
Detailed Description
The 19193-0222 is a high-quality VersaKrimp Ring Tongue Terminal designed for 6 AWG wire connections. Featuring a durable construction with a tin contact plating, this terminal ensures reliable performance. It is suitable for use with 5/16" (M8) studs and is UL and CSA certified for added safety and quality assurance. The barrel is closed and brazed for enhanced durability. This terminal is RoHS compliant and comes in convenient packaging with embossed tape on a reel, making it easy to handle and store. Perfect for a wide range of applications, the 19193-0222 is a dependable solution for your crimp or compression needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19007-0040 | Flag InsulKrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mm?) Wire, Box, Tab 6.35 x 0.81mm |  |
 | Molex 19039-0026 | Avikrimp Snap Plug Receptacle for 22-18 AWG Wire, PVC, Fits Male Plug Diameter 3.96mm, Mylar Tape Carrier | |
 | Molex 19073-0024 | Avikrimp Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 1/4 (M6), Length 26.90mm | |
 | Molex 19193-0155 | VersaKrimp Ring Tongue Terminal for 8 AWG Wire, Stud Size 1/4 (M6), Mylar Tape Carrier | |

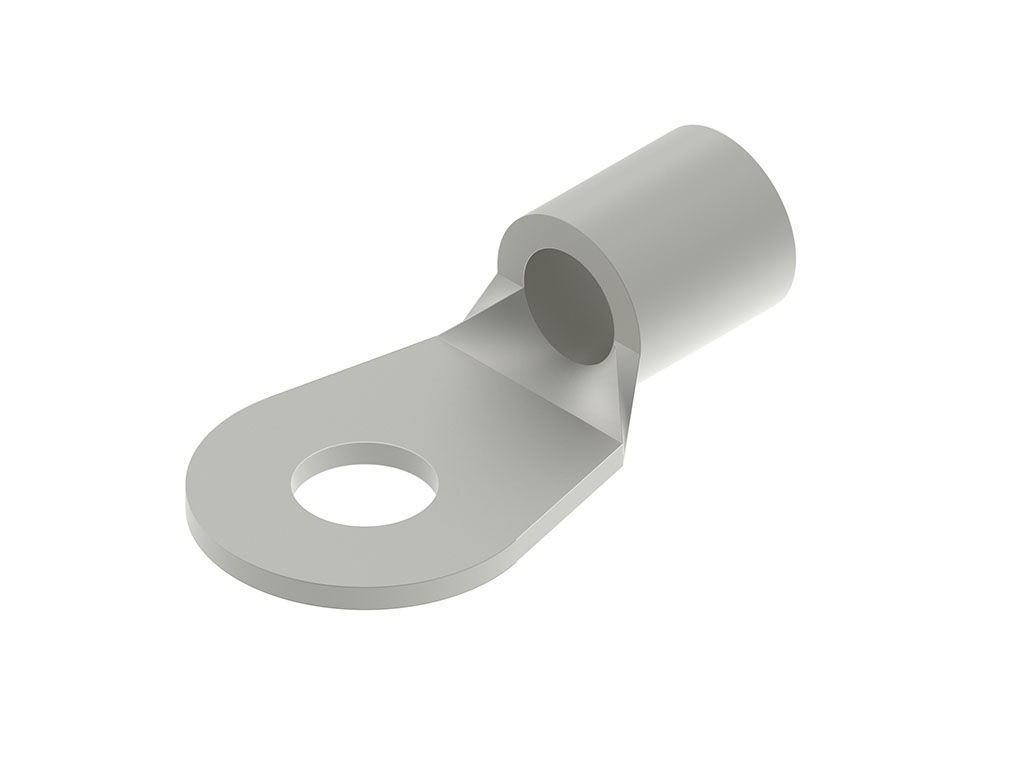

 | Molex 19193-0215 | VersaKrimp Ring Tongue Terminal for 6 AWG Wire | |
 | Molex 19193-0216 | VersaKrimp Ring Tongue Terminal for 6 AWG Wire | |
 | Molex 19193-0226 | VersaKrimp Ring Tongue Terminal for 6 AWG Wire | |

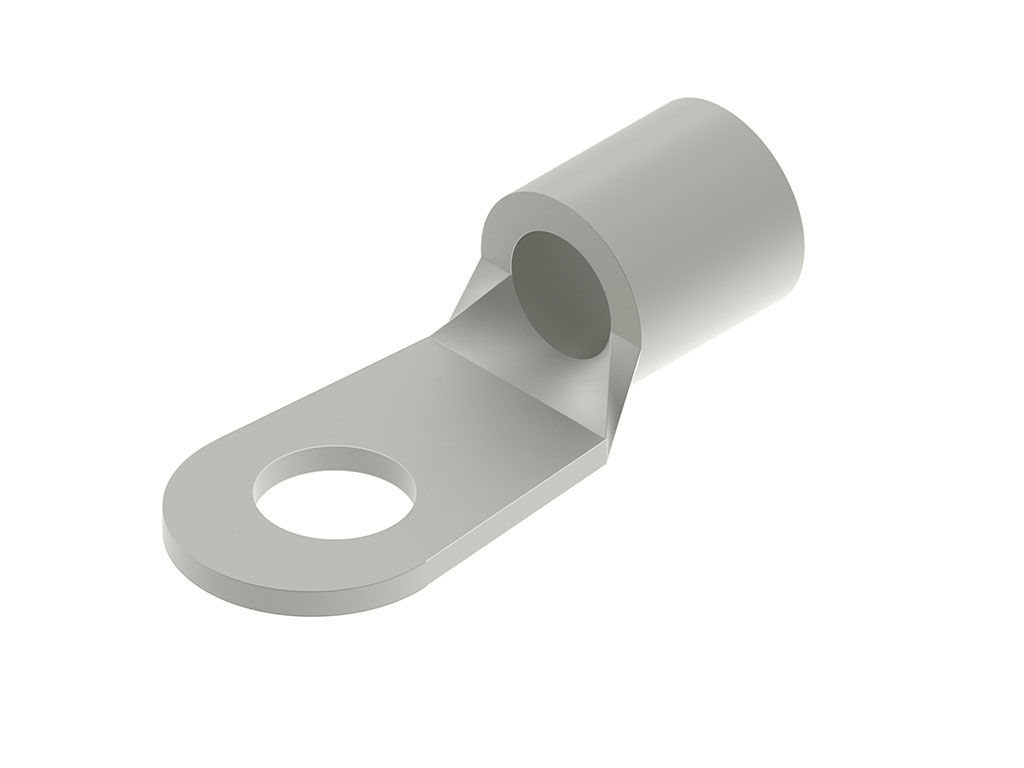

 | Molex 19193-0250 | VersaKrimp Ring Tongue Terminal for 6 AWG Wire, Stud Size M6, Mylar Tape Carrier | |
