| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19193-0203 |
| Military Specification: | AS20659-107, MS20659-107 |
| Series: | 19193 - VersaKrimp |
| Connector Type: | VersaKrimp |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Stud Size: | 10 (M5) |
| Insulation Material: | None |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 8 AWG |
| Barrel Type: | Closed - Brazed |
| Part Aliases: | 0191930203 D-356-10T |
| SKU: | MOL19193-0203 |
19193-0203
| Heilind Number: | MOL19193-0203 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19193-0203 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 19193-0203, a high-quality VersaKrimp Ring Tongue Terminal designed for 8 AWG wires. This military-spec AS20659-107 and MS20659-107 compliant terminal features a durable tin contact plating, suitable for M5 (10) studs. With a versatile crimp or compression termination method, it offers reliable connectivity in various applications. The closed-brazed barrel construction ensures secure wire attachment, while its RoHS compliance underscores its environmental responsibility. Trust in the performance and quality of this tin-plated terminal for your industrial or commercial needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19069-0212 | Krimptite Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 10 (M5), Length 19.94mm, Mylar Tape Carrier |  |

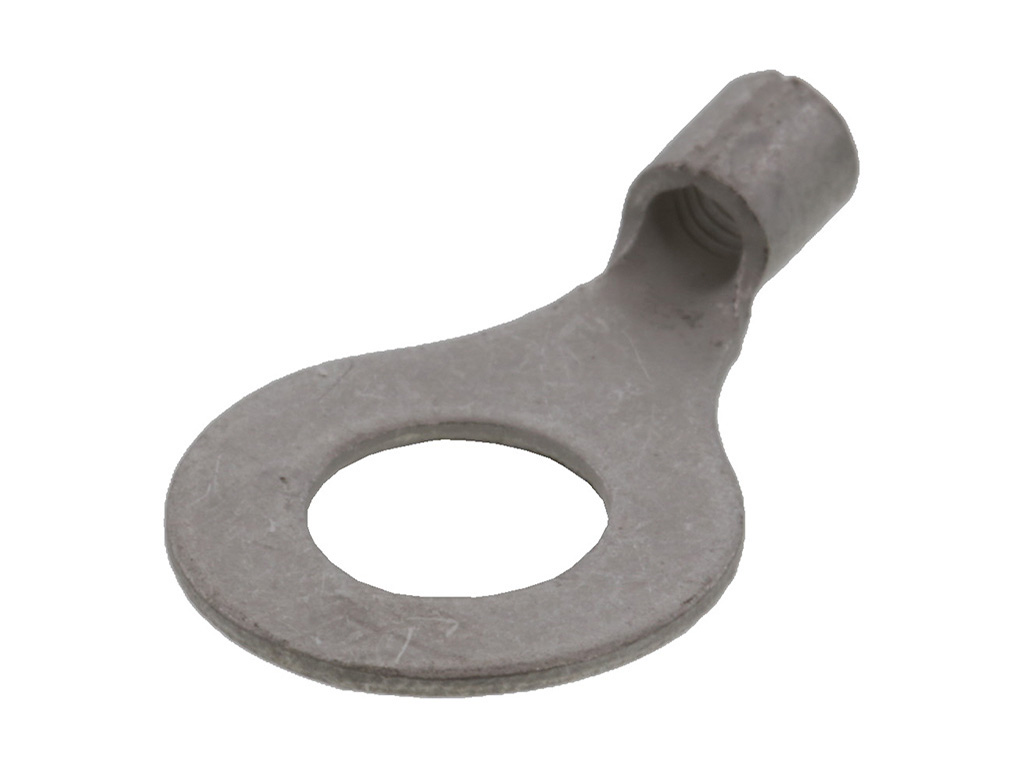

 | Molex 19193-0097 | VersaKrimp Ring Tongue Terminal for 10-12 AWG Wire | |
 | Molex 19193-0273 | VersaKrimp Ring Tongue Terminal for 4 AWG Wire | |
 | Molex 33012-2002 | MX150 Female Terminal Sealed, Tin Plating, 18 and 20 AWG, Right Reel Payoff | |
 | Molex 39-00-0038 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel | |
 | Molex 39-01-2065 | Mini-Fit Jr. Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-2066 | Mini-Fit Jr. Plug Housing, Dual Row, 6 Circuits, UL 94V-0, with Panel Mounting Ears, Natural | |
 | Molex 39-01-3029 | Mini-Fit Jr. Plug Housing, Dual Row, 2 Circuits, UL 94V-0, without Panel Mounting Ears, Natural | |
 | Molex 39-01-3049 | Mini-Fit Jr. Plug Housing, Dual Row, 4 Circuits, UL 94V-0, without Panel Mounting Ears, Natural | |
 | Molex 39-01-4031 | Mini-Fit Jr. Receptacle Housing, Single Row, 3 Circuits, UL 94V-0, Natural | |
 | Molex 42815-0144 | Cut Strip - Mini-Fit Sr. Crimp Terminal, Female, 14-16 AWG, Silver (Ag) | |
 | Molex 43640-0200 | Micro-Fit 3.0 Plug Housing, Single Row, 2 Circuits, UL 94V-0, Panel Mount Ears, Low-Halogen, Black | |
 | Molex 43640-0300 | Micro-Fit 3.0 Plug Housing, Single Row, 3 Circuits, UL 94V-0, Panel Mount Ears, Low-Halogen, Black | |
 | Molex 43640-0301 | Micro-Fit 3.0 Plug Housing, Single Row, 3 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43645-0400 | Micro-Fit 3.0 Receptacle Housing, Single Row, 4 Circuits, UL 94V-0, Black | |

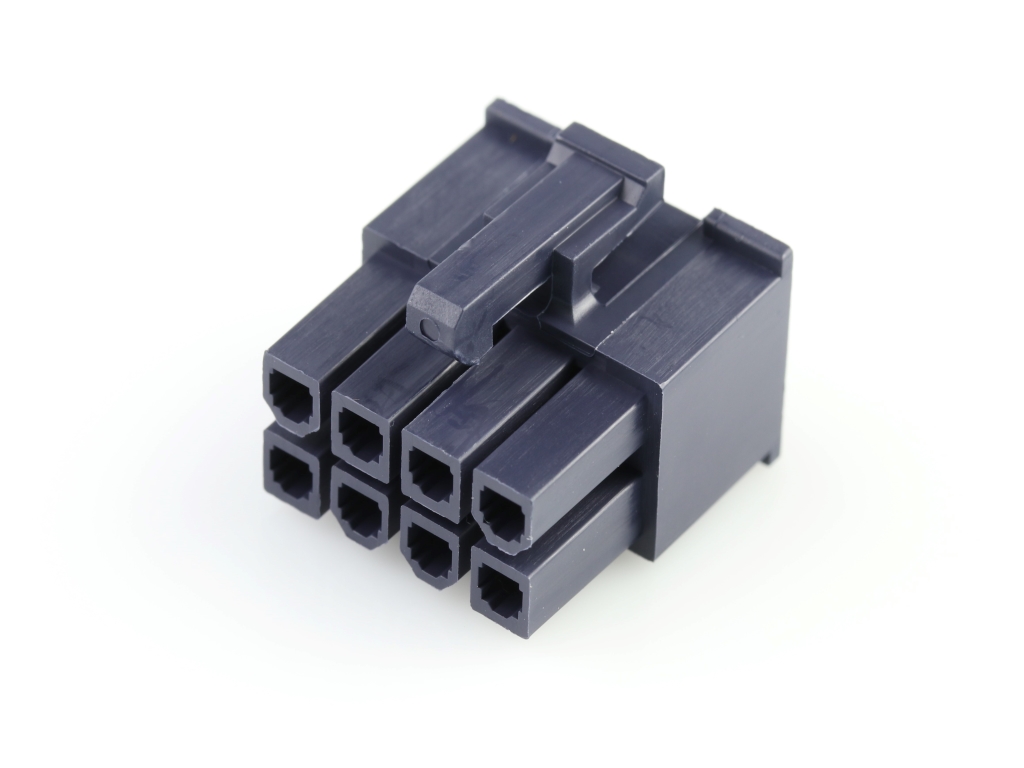

 | Molex 46992-0810 | Mini-Fit Jr. Receptacle Housing, Dual Row, Nylon 6/6, UL 94V-2, 8 Circuits, Glow-Wire Capable, Black | |
 | Molex 87439-0400 | 1.50mm Pitch Pico-SPOX Wire-to-Board Housing, 4 Circuits, Off-White Housing | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19193-0203 |
| Other Names: | 0191930203 D-356-10T |
