| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19164-1141 |
| Series: | 19164 - Perma-Seal |
| Connector Type: | Perma-Seal |
| Termination Method: | Crimp or Compression |
| Stud Size: | 6 (M3.5) |
| Insulation Material: | NiAc |
| Packaging: | Embossed Tape on Reel |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG, .38 - .96 mm² |
| Wire Insulation Diameter: | 5.97 mm |
| Barrel Type: | Closed |
| Part Aliases: | 0191641141 SA-221-06T |
| SKU: | MOL19164-1141 |
19164-1141
Specifications
Detailed Description

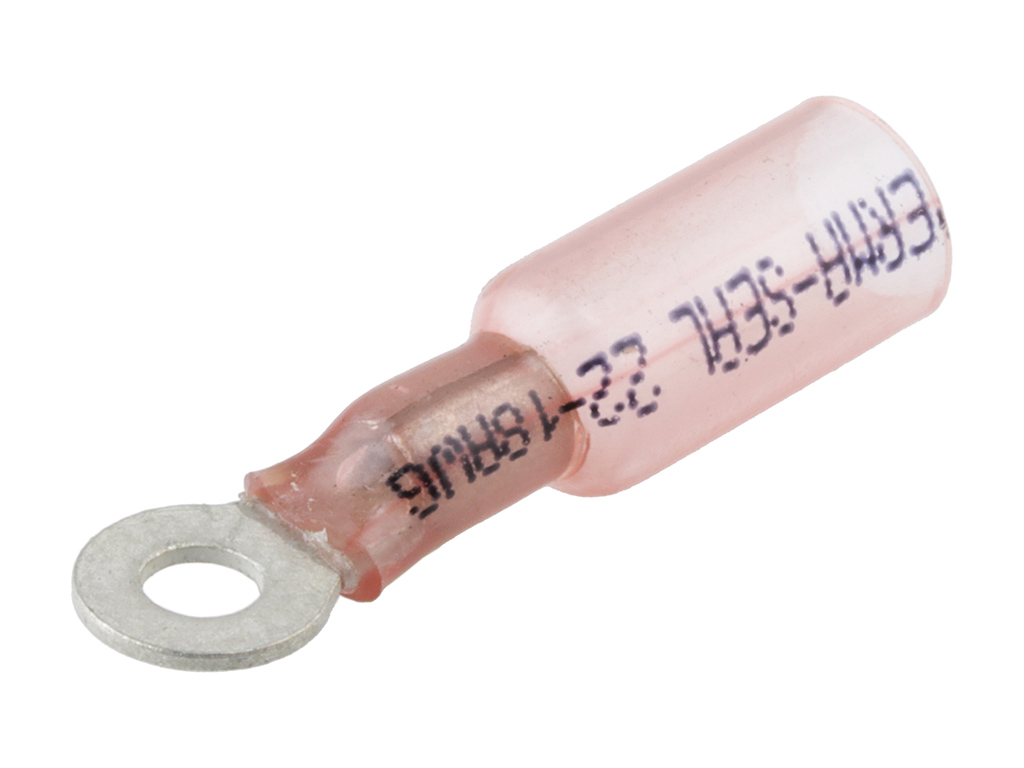

The 19164-1141 is a Perma-Seal Ring Tongue Terminal designed for 18-22 AWG wires, featuring a stud size of 6 (M3.5) and packaged conveniently in Tape and Reel format. Part of the 19164 Perma-Seal series, this crimp or compression termination connector boasts an insulation material of NiAc and a contact mating area plating of Tin, ensuring reliable performance. Suitable for wire sizes ranging from 22 AWG to 18 AWG, or .38 to .96 mm², with a maximum wire insulation diameter of 5.97 mm, this terminal is versatile for various applications. With RoHS compliance and being In Stock, it guarantees both environmental and availability standards.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19164-0034 | Perma-Seal Ring Tongue Terminal for 14-16 AWG Wire, Stud Size 10 (M5) |  |
 | Molex 19164-0063 | RING PERMA-SEAL (SC-228-10) | |
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19164-1141 |
| Other Names: | 0191641141 SA-221-06T |
