| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19164-0939 |
| Series: | 19164 - Perma-Seal |
| Connector Type: | Perma-Seal |
| Contact Plating: | Tin |
| Stud Size: | 10 (M5) |
| Insulation Material: | NiAc |
| Packaging: | Adhesive Tape on Reel |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 10 AWG, 12 AWG, 4 - 6 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Wire Insulation Diameter: | 11.91 mm |
| Barrel Type: | Closed |
| Part Aliases: | 0191640939 SC-228-10T |
| SKU: | MOL19164-0939 |
19164-0939
| Heilind Number: | MOL19164-0939 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19164-0939 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:
Perma-Seal Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 10 (M5), Mylar Tape Carrier
More >>Specifications
Detailed Description
The 19164-0939 is a Perma-Seal Ring Tongue Terminal designed for secure and durable connections in electrical applications. Suitable for 10-12 AWG wires, with a stud size of 10 (M5), this terminal features a Mylar Tape Carrier for added convenience during installation. Constructed with NiAc insulation and tin contact plating, it ensures reliable performance and corrosion resistance. Certified by LR18689 and E32244, it meets stringent safety standards. With a closed barrel design and compatibility with 4-6 mm² wires, it offers versatility for various projects. Available for immediate shipping, this RoHS-compliant terminal is a dependable choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 105308-1216 | Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Dual Row, 16 Circuits, Black, Glow-Wire Capable |  |

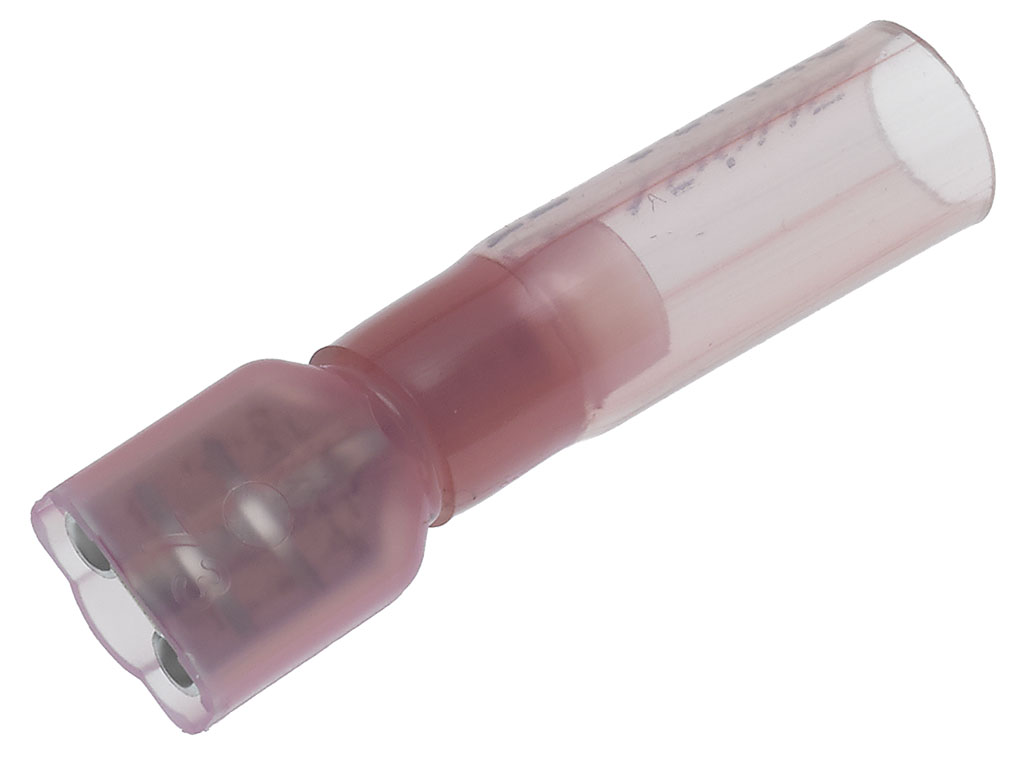

 | Molex 19164-0018 | Perma-Seal Female Quick Disconnect Receptacle for 18-22 AWG Wire, Tab Size 6.35 x 0.81mm, Mylar Tape Carrier | |
 | Molex 19164-0067 | Perma-Seal Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 5/16 (M8) | |
 | Molex 19164-0080 | Perma-Seal Ring Tongue Terminal for 8 AWG Wire, Stud Size 10 (M5) | |

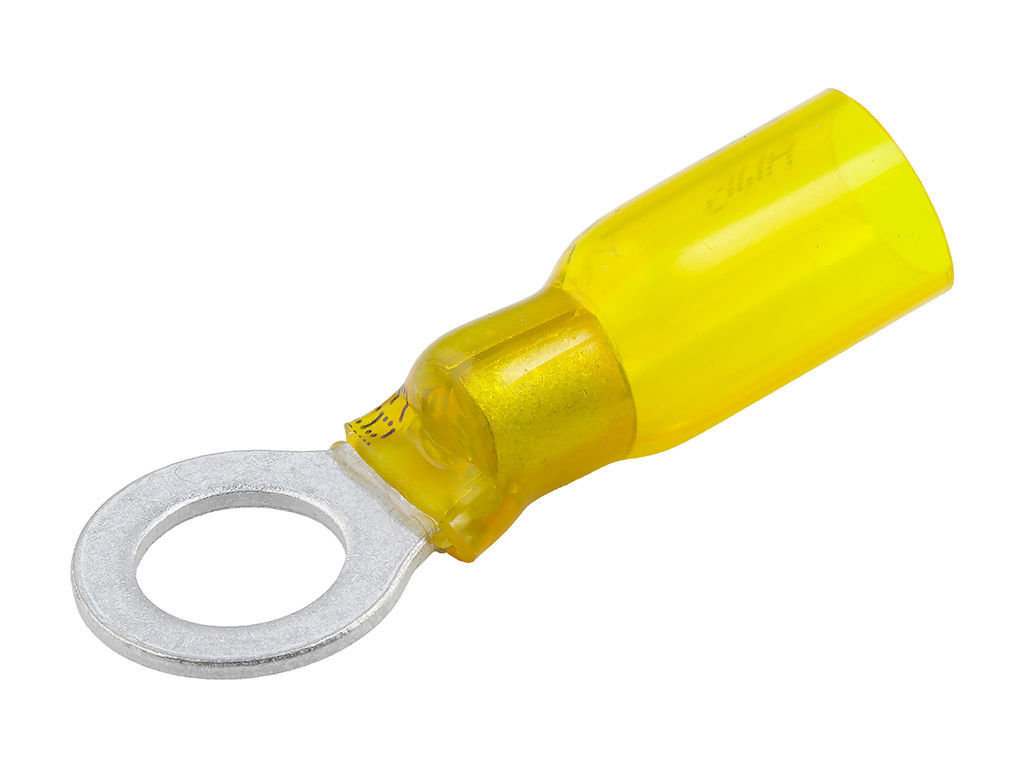

 | Molex 19164-0318 | Perma-Seal Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 5/16 (M8), Mylar Tape Carrier | |
 | Molex 19221-0232 | Compression Style Ring Tongue Terminal for 4 AWG Wire, Stud Size 3/8 (M9), Tin Plated | |
 | Molex 19221-0454 | Compression Style Ring Tongue Terminal for 4 AWG Wire, Stud Size 1/2 (M12), Tin Plated | |
 | Molex 43020-0400 | Micro-Fit 3.0 Plug Housing, Dual Row, 4 Circuits, UL 94V-0, Panel Mount Ears, Low-Halogen, Black | |
 | Molex 43020-1600 | Micro-Fit 3.0 Plug Housing, Dual Row, 16 Circuits, UL 94V-0, Panel Mount Ears, Low-Halogen, Black | |
 | Molex 43025-1600 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 16 Circuits, UL 94V-0, Black | |
 | Molex 51021-1200 | 1.25mm Pitch PicoBlade Wire-to-Wire and Wire-to-Board Housing, Female, 12 Circuits, Natural | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 12/13/2024 | 515353 - Packaging Method/Quantity Changing. going from single spaced 500 pc reel to double space 400 pc reel. This notification is to inform you about part(s) listed in this notice that will undergo changes for new Delivery unit. No changes will be made to the product as a result of this change. | Download | |||
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19164-0939 |
| Other Names: | 0191640939 SC-228-10T |
