| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19164-0076 |
| Color: | Yellow |
| Series: | 19164 - Perma-Seal |
| Connector Type: | Perma-Seal, Quick Disconnect |
| Gender: | Female |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Material: | Brass |
| Insulation Material: | NiAc |
| Compatible Tab Width: | 6.35mm |
| Compatible Tab Thickness: | 0.81mm |
| Orientation: | Straight |
| Insulation Type: | Full |
| Packaging: | Bag |
| Operating Temperature Range: | -55 - 125 °C |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 10 AWG, 12 AWG, 4 - 6 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E79133 |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 5.84 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Part Aliases: | 0191640076 SC-9281 |
| SKU: | MOL19164-0076 |
19164-0076
Specifications
Detailed Description

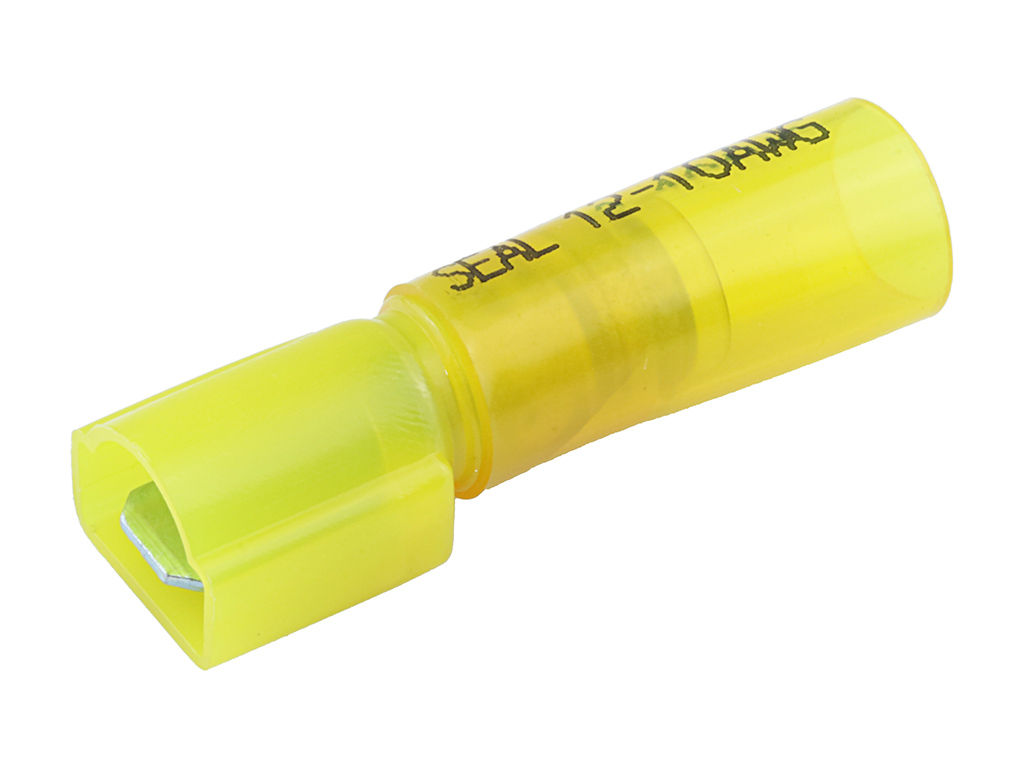

The Perma-Seal Female Quick Disconnect Receptacle is a reliable and high-performance connector designed for 10-12 AWG wires. With a tab size of 6.35 x 0.81mm, it ensures a secure and stable connection. Featuring a vibrant yellow color for easy identification, this connector is part of the 19164 Perma-Seal series, known for its durability. Constructed with brass and tin plating, it offers excellent conductivity and corrosion resistance. Rated for up to 600V, it is suitable for various industrial applications. The full insulation type with NiAc material guarantees safety and reliability even in harsh environments. With UL and CSA agency certifications, you can trust in the quality and performance of this connector. RoHS compliant and in stock for immediate shipping, it is the perfect choice for your crimp terminal needs.
