| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19164-0007 |
| Series: | 19164 - Perma-Seal |
| Connector Type: | Perma-Seal |
| Contact Plating: | Tin |
| Stud Size: | 8 (M4) |
| Insulation Material: | NiAc |
| Packaging: | Bag |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG, .38 - .96 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Wire Insulation Diameter: | 5.97 mm |
| Barrel Type: | Closed |
| Part Aliases: | 0191640007 SA-235-08 |
| SKU: | MOL19164-0007 |
19164-0007
Specifications
Detailed Description

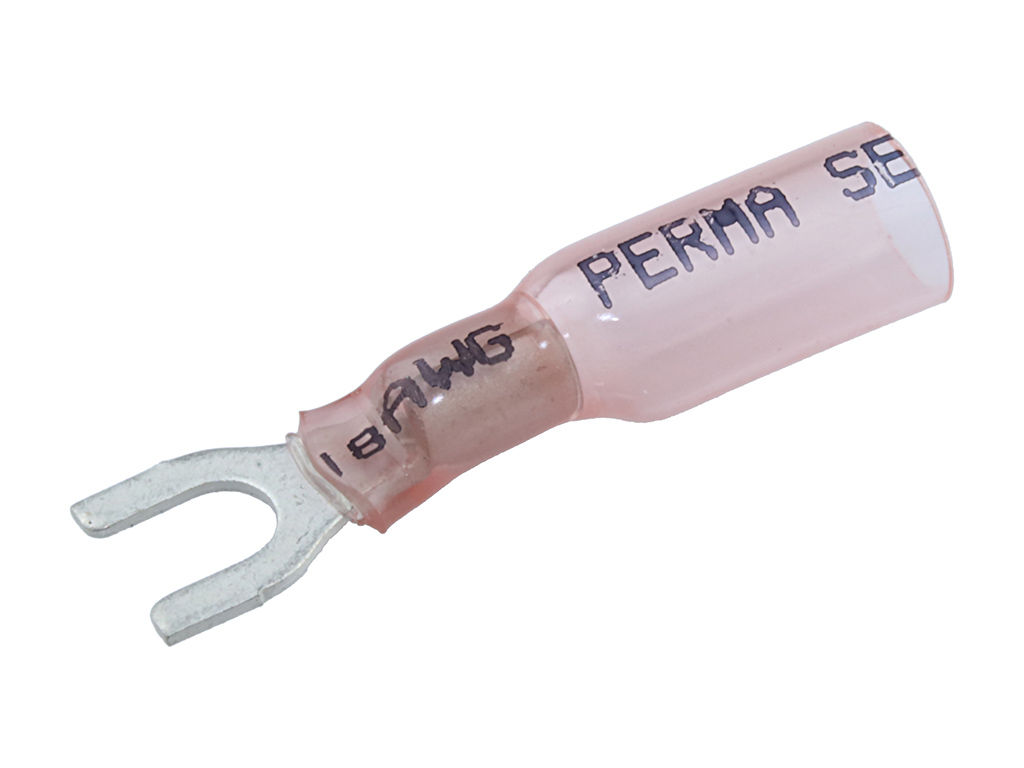

Introducing the 19164-0007 Perma-Seal Spade Tongue Terminal, a versatile connector designed for 18-22 AWG wires with a stud size 8 (M4). Featuring a durable tin contact plating and NiAc insulation material, this terminal ensures reliable performance in various applications. With CSA and UL agency certifications, it guarantees safety and quality standards compliance. The closed barrel design and 5.97 mm wire insulation diameter offer secure and efficient connections. RoHS compliant and in stock for immediate shipping, this terminal is a must-have for your crimping needs.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19164-0007 |
| Other Names: | 0191640007 SA-235-08 |
