| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |

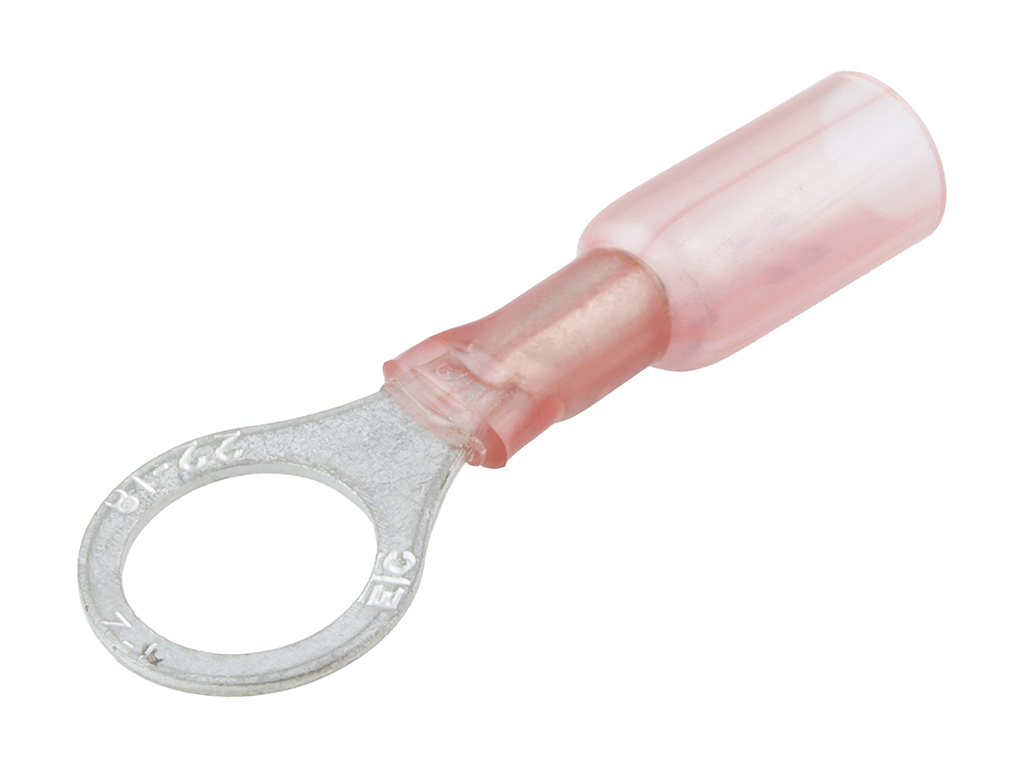

| Manufacturer Part Number: | Molex 19164-0005 |
| Series: | 19164 - Perma-Seal |
| Connector Type: | Perma-Seal |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Stud Size: | 3/8" (M9) |
| Insulation Material: | NiAc |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG, .38 - .96 mm² |
| Wire Insulation Diameter: | 5.97 mm |
| Barrel Type: | Closed |
| Part Aliases: | 0191640005 SA-226-38 |
| SKU: | MOL19164-0005 |
19164-0005
Specifications
Detailed Description
The Perma-Seal Ring Tongue Terminal 19164-0005 is a reliable and durable solution for connecting 18-22 AWG wires. With a stud size of 3/8 (M9), this terminal ensures a secure fit for various applications. Its crimp or compression termination method, along with tin contact plating, guarantees efficient conductivity and corrosion resistance. The NiAc insulation material and closed barrel design provide added protection and durability, making it suitable for a wide range of environments. RoHS compliant and with a tin contact mating area plating, this terminal is a high-quality and environmentally friendly choice for your connectivity needs.
