| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19144-0019 |
| Color: | Natural |
| Series: | 19144 - InsulKrimp |
| Connector Type: | InsulKrimp |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Stud Size: | 6 (M3.5) |
| Insulation Material: | PVC |
| Packaging: | Embossed Tape on Reel |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 14 AWG, 16 AWG, 1.3 - 2 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Wire Insulation Diameter: | 4.4 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0191440019 BB-224-06XT |
| SKU: | MOL19144-0019 |
19144-0019
| Heilind Number: | MOL19144-0019 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19144-0019 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Specifications
Detailed Description

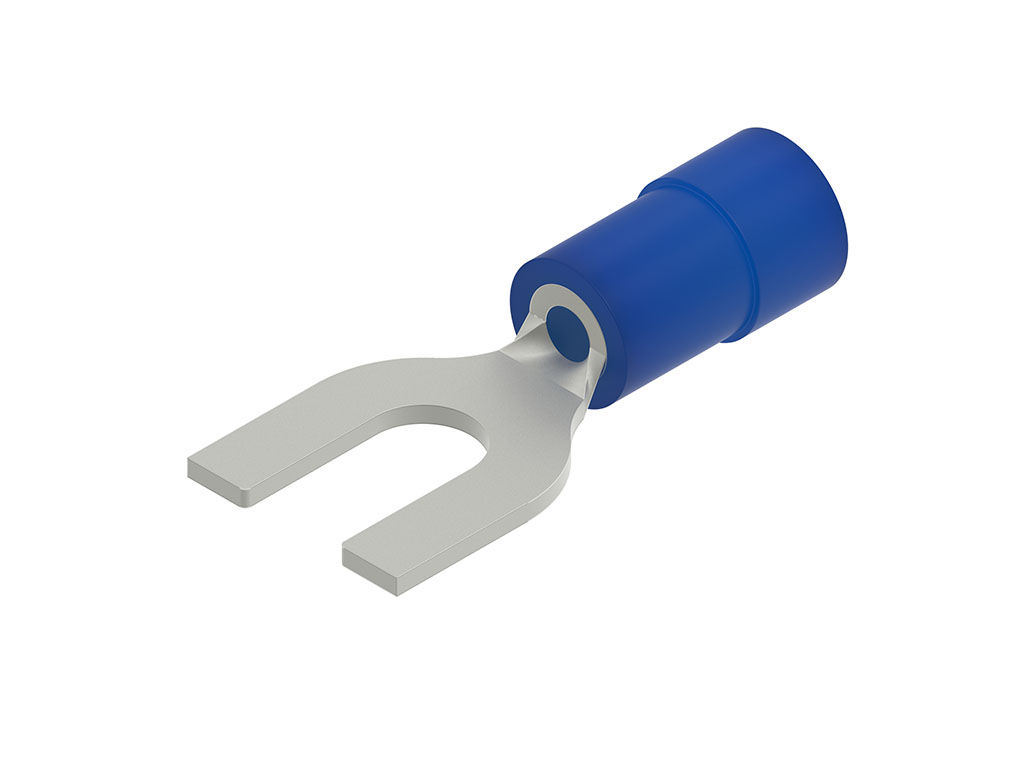

The 19144-0019 InsulKrimp Spade Tongue Terminal is designed for secure and reliable connections in electrical applications. With a termination method of crimp or compression, it ensures easy installation onto 14-16 AWG wires. Its tin contact plating and PVC insulation material guarantee durability and protection against corrosion. This terminal, part of the 19144 InsulKrimp series, is UL and CSA certified, meeting stringent quality and safety standards. It features a closed barrel design and accommodates wire insulation diameters up to 4.4mm. RoHS-compliant and available for immediate shipping, it is the ideal choice for your wire termination needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-70-1039 | 2.50mm Pitch SPOX Wire-to-Board Crimp Terminal, Reel |  |
 | Molex 19004-0004 | InsulKrimp Fully Insulated Coupler, Male, for 18-22 AWG Wire, Mylar Tape | |
 | Molex 19070-0023 | InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire | |
 | Molex 19144-0002 | InsulKrimp Spade Tongue Terminal for 18-22 AWG Wire, Tape and Reel | |
 | Molex 19144-0004 | SPADE INSULKRIMP TAPED (AA-235-08XT) | |
 | Molex 19144-0025 | InsulKrimp Spade Tongue Terminal for 14-16 AWG Wire, Tape and Reel | |
 | Molex 19144-0027 | InsulKrimp Spade Tongue Terminal for 14-16 AWG Wire, Tape and Reel | |
 | Molex 19193-0109 | VersaKrimp Ring Tongue Terminal for 10-12 AWG Wire, Loose | |
 | Molex 39-01-2060 | Mini-Fit Jr. Receptacle Housing, Dual Row, 6 Circuits, UL 94V-2, Natural | |
 | Molex 39-01-2120 | Mini-Fit Jr. Receptacle Housing, Dual Row, 12 Circuits, UL 94V-2, Natural | |
 | Molex 501646-1000 | 2.00mm Pitch iGrid Wire-to-Board Housing, Dual Row, Positive Lock, 10 Circuits | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19144-0019 |
| Other Names: | 0191440019 BB-224-06XT |
