19141-0023

MOL19141-0023
Heilind Number:MOL19141-0023
Manufacturer:Molex
Manufacturer Number:19141-0023
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

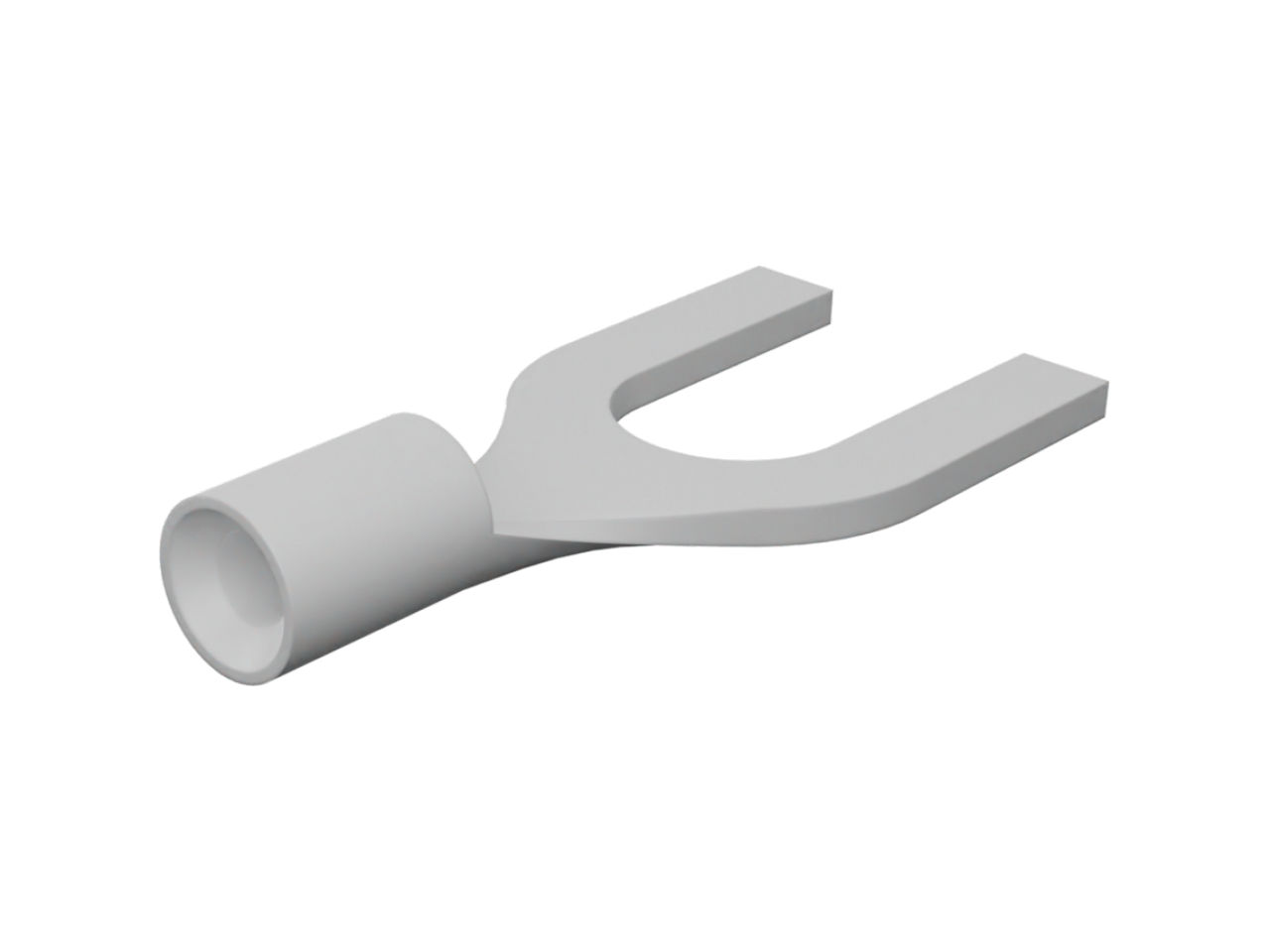

Krimptite Spade Tongue Terminal for 18-22 AWG Wire, Stud Size 8 (M4), Mylar Tape Carrier

More >>

Specifications

AttributeValue
Product Category:
Crimp Terminals, Housings, Splices, & Lugs Crimp Terminals, Housings, & Splices
Manufacturer:Molex
Manufacturer Part Number:Molex 19141-0023
Series:19141 - Krimptite
Connector Type:Krimptite
Contact Plating:Tin
Voltage:600 V
Stud Size:8 (M4)
Insulation Material:None
Packaging:Adhesive Tape on Reel
Contact Mating Area Plating:Tin
Wire Size:18 AWG, 20 AWG, 22 AWG, .25 - 1.5 mm²
CSA Agency Certification:LR18689
UL Agency Certification:E32244
Barrel Type:Closed
Part Aliases:0191410023 AA-135-08T
SKU:MOL19141-0023

Detailed Description

Introducing the 19141-0023 Krimptite Spade Tongue Terminal, designed for secure and efficient connections in electrical applications. This terminal is suitable for 18-22 AWG wires, featuring a Stud Size 8 (M4) for universal compatibility. With Tin contact plating and a voltage rating of 600 V, it ensures reliable performance. The Mylar Tape Carrier and adhesive tape on reel packaging make it convenient for industrial use. Certified by LR18689 and E32244, this terminal meets stringent quality standards. Its closed barrel design accommodates wire sizes ranging from 22 AWG to 18 AWG, catering to a wide range of needs. RoHS compliant and highly durable, the 19141-0023 is the perfect choice for your crimping requirements.
