| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19121-0006 |
| Series: | 19121 - InsulKrimp |
| Connector Type: | InsulKrimp |
| Contact Plating: | Tin |
| Stud Size: | 6 (M3.5) |
| Insulation Material: | PVC |
| Packaging: | Adhesive Tape on Reel |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG, .25 - 1.5 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Wire Insulation Diameter: | 3.68 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0191210006 AA-215-06XT |
| SKU: | MOL19121-0006 |
19121-0006
Specifications
Detailed Description
The 19121-0006 is a specialized InsulKrimp Flanged Spade Tongue Terminal designed for secure and efficient connections in electrical applications. With a precise fit for 18-22 AWG wires and a stud size of 6 (M3.5), this terminal ensures reliable conductivity. Its 19.84mm length accommodates various setups, while the Mylar Tape Carrier simplifies handling during installation. Crafted with durable PVC insulation and tin contact plating, it guarantees long-lasting performance. This UL and CSA certified terminal is suitable for use with 22 AWG to 18 AWG wires, with an insulation diameter of 3.68mm. Its closed barrel design offers added protection, and it is RoHS compliant, making it a safe and environmentally friendly choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 09-50-1041 | 3.96mm Pitch SPOX Crimp Housing, Female, with Friction Ramp, 4 Circuits, Natural |  |
 | Molex 19098-0091 | Krimptite Snap Spade Terminal, for 10-12 AWG Wire, Stud Size 10 (M5), 19.60mm Length | |

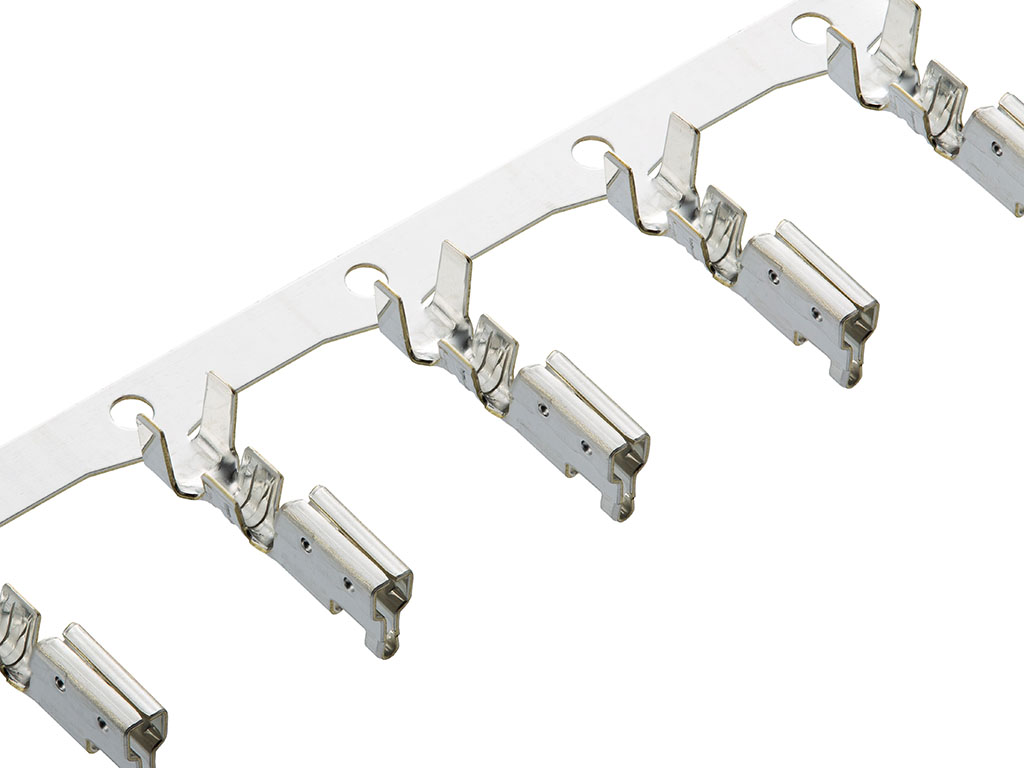

 | Molex 39-00-0021 | SPOX Crimp Terminal 5194, 18-24 AWG, Phosphor Bronze, Reel | |
 | Molex 39-01-2085 | Mini-Fit Jr. Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Natural | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19121-0006 |
| Other Names: | 0191210006 AA-215-06XT |
