| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19073-0201 |
| Series: | 19073 - Avikrimp |
| Connector Type: | Avikrimp |
| Contact Plating: | Tin |
| Stud Size: | 5/16" (M8) |
| Insulation Material: | Nylon (PA) |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 10 AWG, 12 AWG, 3.3 - 5 mm² |
| Wire Insulation Diameter: | 5.72 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190730201 C-830-56T |
| SKU: | MOL19073-0201 |
19073-0201
Specifications
Detailed Description
Introducing the Molex Avikrimp Ring Tongue Terminal, designed for reliable and efficient wire connections. This terminal is suitable for 10 to 12 AWG wires, with a stud size of 5/16 (M8) and a length of 31.95mm. Featuring a Mylar Tape Carrier, it is easy to handle and install. Constructed with high-quality materials, including Tin contact plating and Nylon insulation, this terminal ensures durability and performance. With a closed barrel design and RoHS compliance, it is suitable for a variety of applications. Upgrade your wire termination process with the Molex Avikrimp Terminal.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 03-06-1023 | 1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, 2 Circuits, without Mounting Ears, Natural |  |

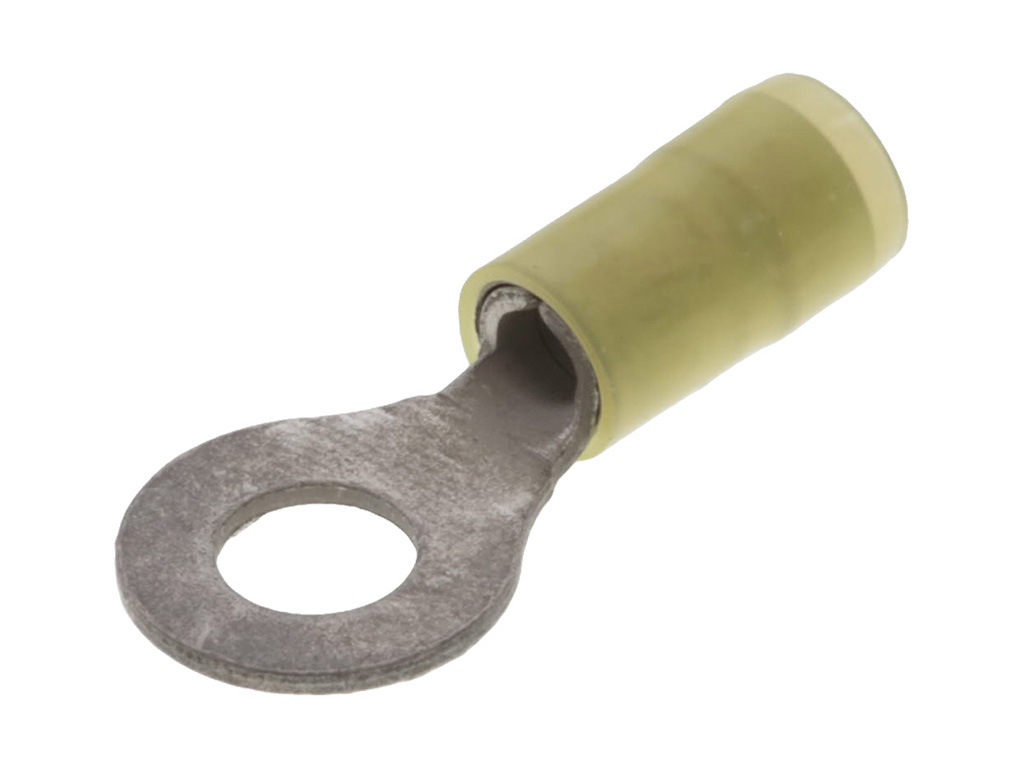

 | Molex 19073-0190 | Avikrimp Ring Tongue Terminal for 10 to 12 AWG Wire, Stud Size 1/4 (M6), Length 31.95mm, Mylar Tape Carrier | |
 | Molex 19160-0083 | Closed-End Insulated Splice for 10-16 AWG Wire, Tape and Reel | |
 | Molex 19215-0046 | VersaKrimp Butt Splice for 2 AWG Wire | |
 | Molex 19215-0047 | VersaKrimp Butt Splice for 1/0 AWG Wire | |

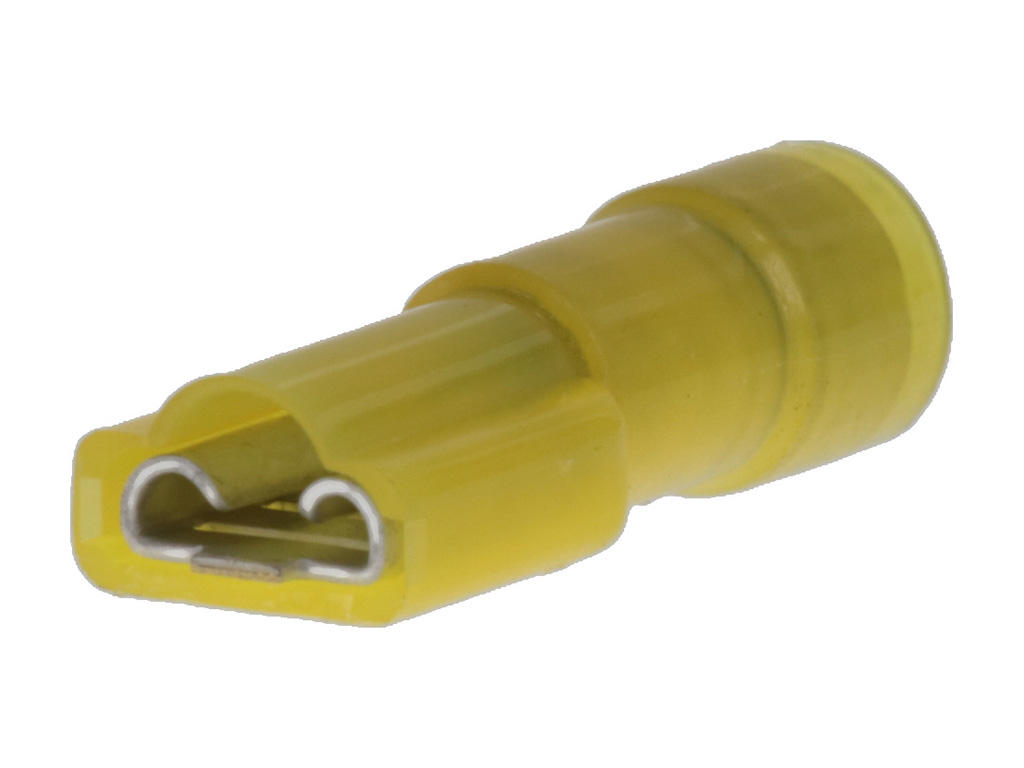

 | Molex 19606-0006 | Avikrimp Fully Insulated Quick Disconnect, Female, for 10-12 AWG Wire, Mylar Tape | |
 | Molex 42816-0412 | 10.00mm Pitch Mini-Fit Sr. Receptacle Housing, Single Row, 4 Circuit, Black | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19073-0201 |
| Other Names: | 0190730201 C-830-56T |
