| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19073-0200 |
| Series: | 19073 - Avikrimp |
| Connector Type: | Avikrimp |
| Contact Plating: | Tin |
| Stud Size: | 5/16" (M8) |
| Insulation Material: | Nylon (PA) |
| Packaging: | Bag |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 10 AWG, 12 AWG, 3.3 - 5 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Wire Insulation Diameter: | 5.72 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190730200 C-830-56 |
| SKU: | MOL19073-0200 |
19073-0200
Specifications
Detailed Description
The 19073-0200 Avikrimp Ring Tongue Terminal is designed for 10 to 12 AWG wires, with a stud size of 5/16 (M8). Measuring 31.95mm in length, this terminal is constructed with a durable nylon (PA) insulation material and features tin contact plating for enhanced conductivity. It is CSA and UL certified (LR18689 and E32244 respectively) for quality assurance. The closed barrel design ensures secure wire connections, accommodating insulation diameters up to 5.72mm. With a tin plating thickness of 2.54 µm in the contact mating area, this terminal offers reliable performance in various applications. It is RoHS compliant, making it environmentally friendly. Upgrade your crimping needs with the 19073-0200 Avikrimp Terminal.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19007-0041 | Flag InsulKrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mm?) Wire, Metal Strip, Tab 6.35 x 0.81mm |  |
 | Molex 19009-0001 | VibraKrimp Quick Disconnect Flag, Female, for 18-22 AWG Wire | |

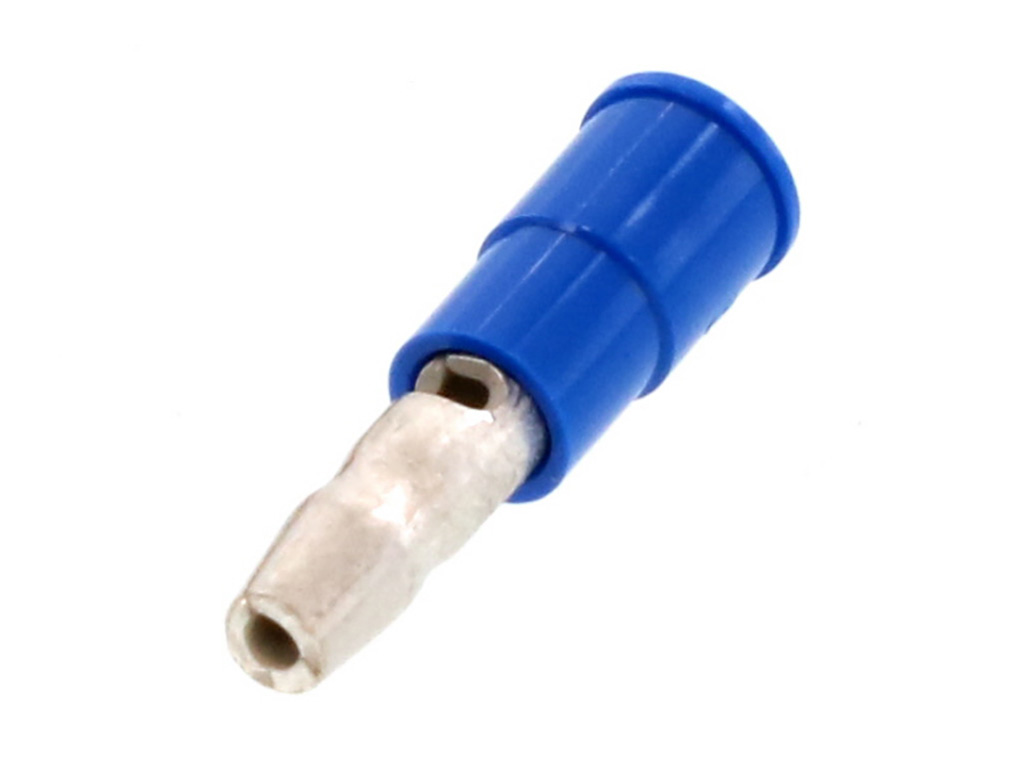

 | Molex 19034-0009 | InsulKrimp Snap Plug, for 14-16 AWG Wire, 22.61mm Length | |
 | Molex 19038-0009 | InsulKrimp Snap Plug Receptacle for 14-16 AWG Wire, Nylon, Fits Male Plug Diameter 3.96mm | |

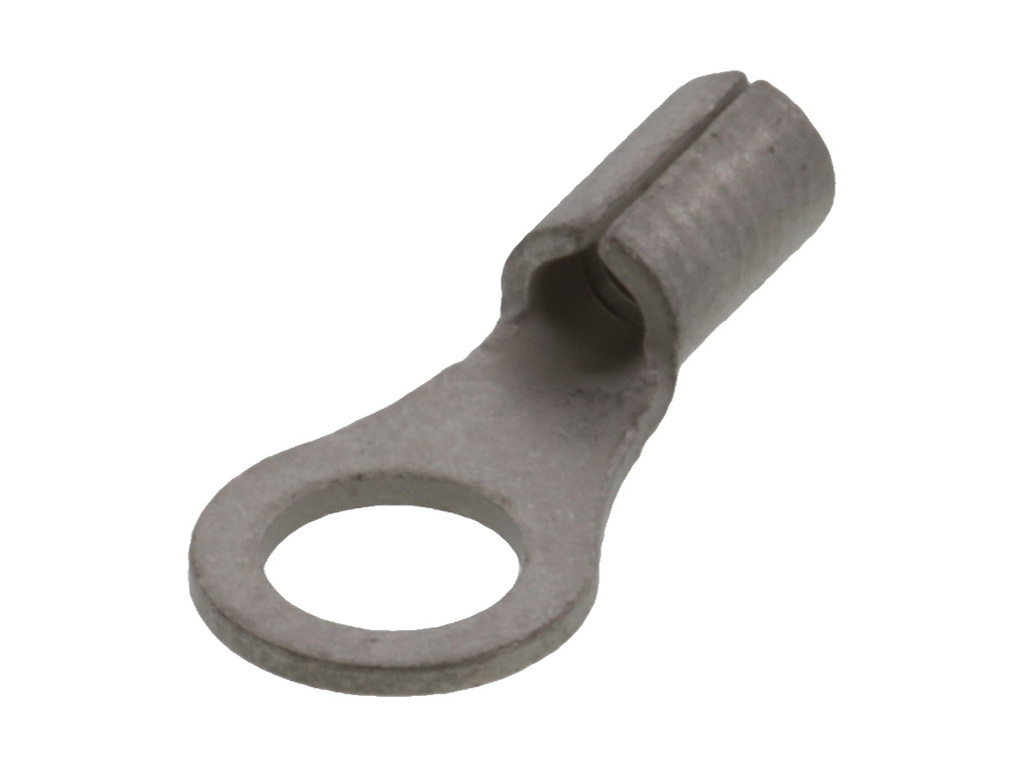

 | Molex 19044-0032 | RING KRIMPTITE (B-137-10) SPM | |
