| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19069-0093 |
| Series: | 19069 - Krimptite |
| Connector Type: | Krimptite |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Stud Size: | 3/8" (M9) |
| Insulation Material: | None |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 14 AWG, 16 AWG, 1.3 - 2 mm² |
| Contact Termination Plating: | Tin |
| Barrel Type: | Closed |
| Part Aliases: | 0190690093 BB-118-38 |
| SKU: | MOL19069-0093 |
19069-0093
Specifications
Detailed Description

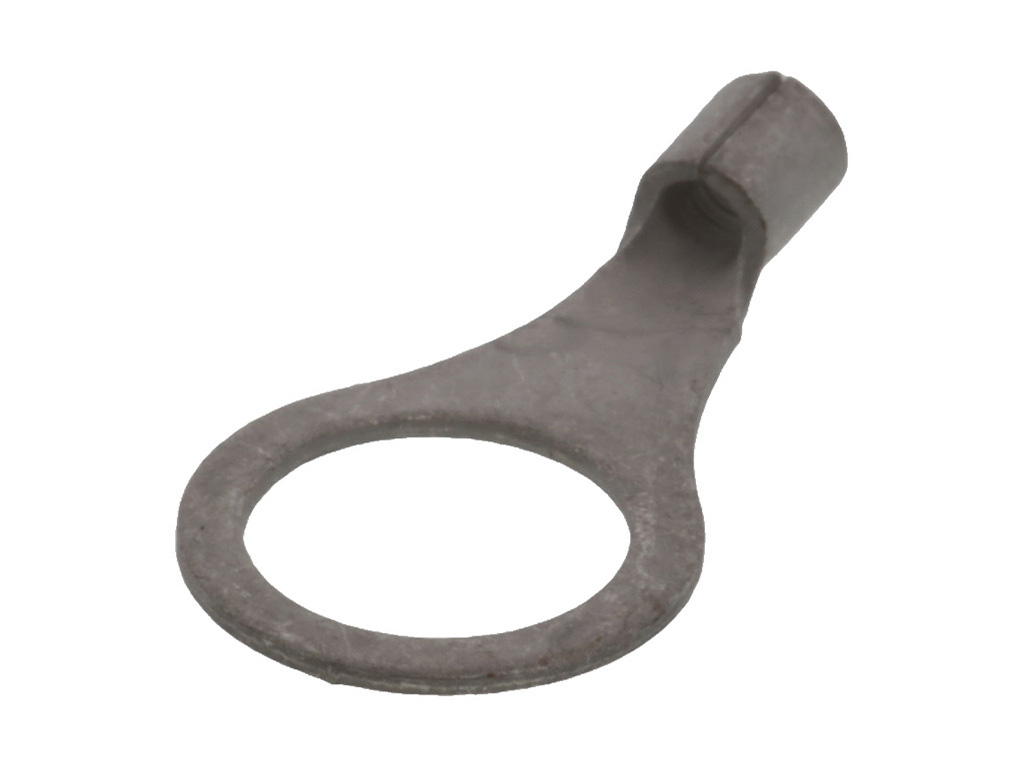

The Krimptite Ring Tongue Terminal 19069-0093 is designed for secure and reliable connections with 14-16 AWG wires. Featuring a durable tin contact plating and a 3/8" (M9) stud size, this terminal ensures efficient conductivity in various applications. With a crimp or compression termination method, installation is convenient and hassle-free. Its closed barrel design offers enhanced protection, while its RoHS compliance guarantees environmental responsibility. Suitable for wire sizes ranging from 1.3 to 2 mm², this terminal is a versatile and high-quality solution for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19069-0107 | Krimptite Ring Tongue Terminal for 14-16 AWG Wire |  |
 | Molex 19069-0109 | Krimptite Ring Tongue Terminal for 14-16 AWG Wire | |

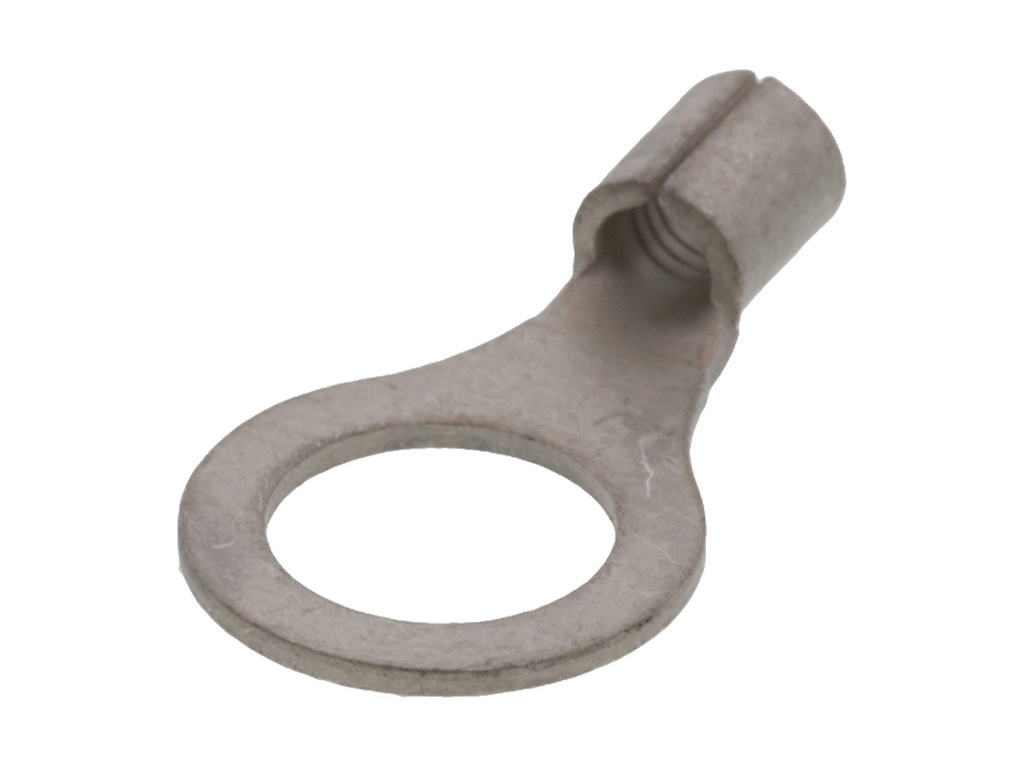

 | Molex 19069-0241 | Krimptite Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 3/8 (M9), Length 26.82mm | |

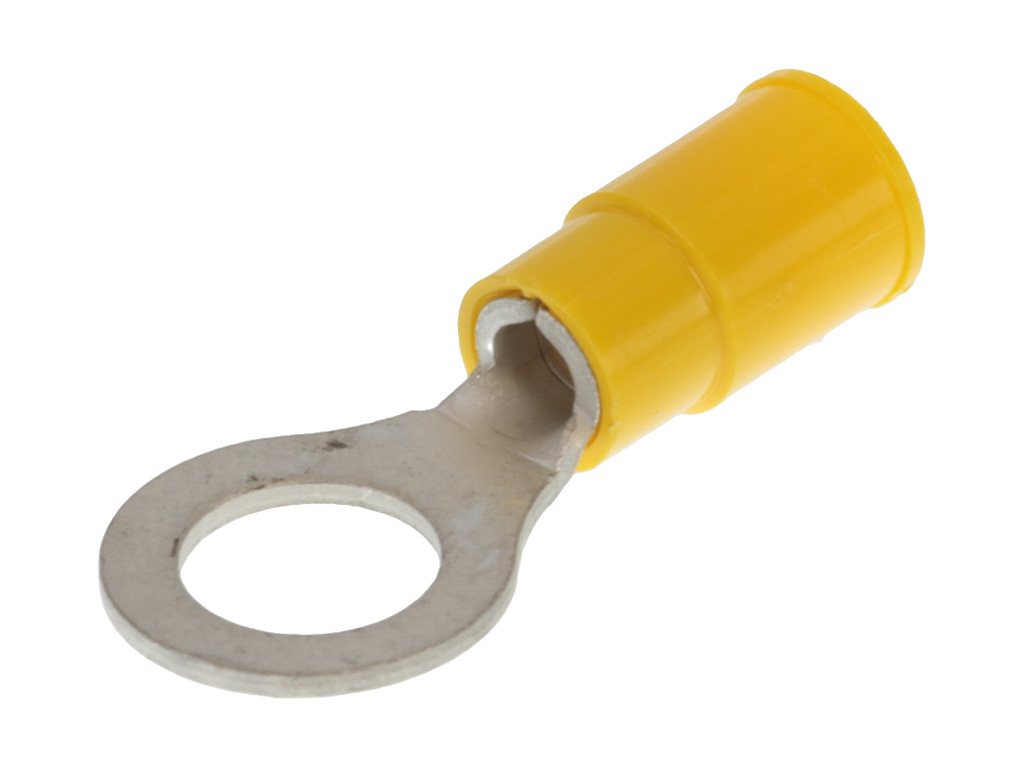

 | Molex 19070-0136 | InsulKrimp Ring Tongue Terminal for 10-12 AWG Wire | |
 | Molex 19121-0005 | InsulKrimp Flanged Spade Tongue Terminal for 18-22 AWG Wire, Stud Size 6 (M3.5), Length 19.84mm | |
 | Molex 19164-0040 | Perma-Seal Male Snap Plug for 14-16 AWG Wire, Diameter 3.96mm | |

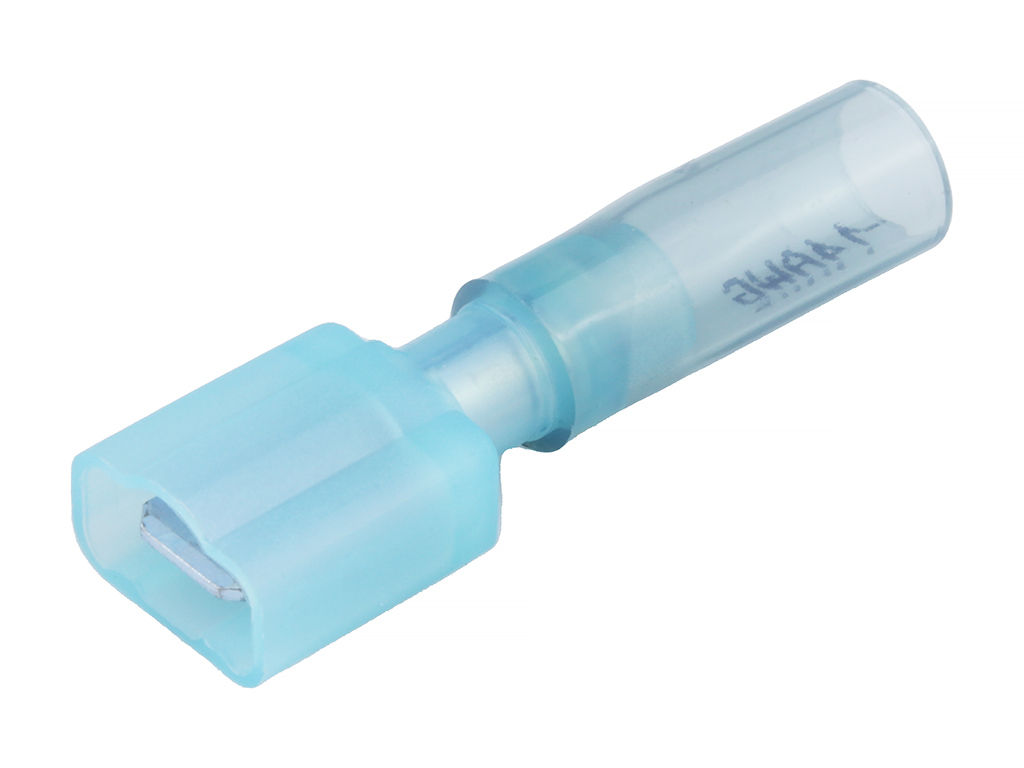

 | Molex 19164-0048 | Perma-Seal Male Quick Disconnect Tab for 14-16 AWG Wire, Tab Size 6.35 x 0.81mm, Bag | |
 | Molex 19164-0050 | Perma-Seal Female Quick Disconnect Receptacle for 14-16 AWG Wire, Tab Size 6.35 x 0.81mm | |

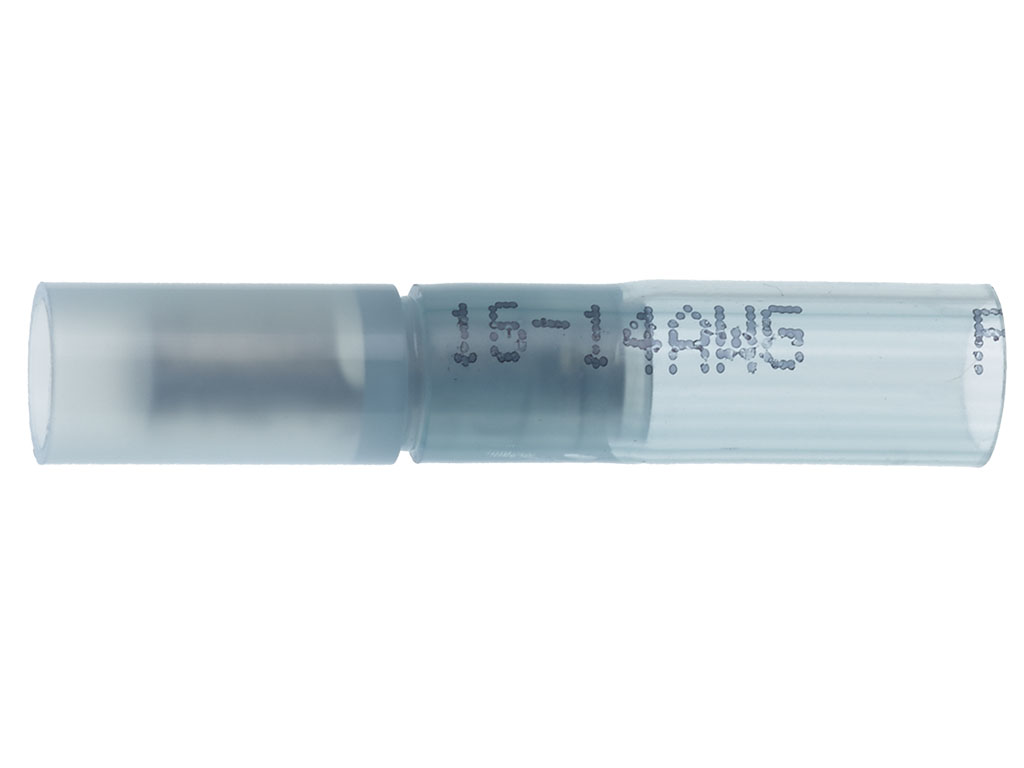

 | Molex 19164-0414 | Perma-Seal Snap Receptacle for 14-16 AWG Wire, Diameter 3.96mm, Mylar Tape Carrier | |
 | Molex 19221-0242 | Compression Style Ring Tongue Terminal for 1/0 AWG Wire, Stud Size 1/2 (M12), Plated | |
 | Molex 19221-0243 | Compression Style Ring Tongue Terminal for 2/0 AWG Wire, Stud Size 5/16 (M8), Plated | |

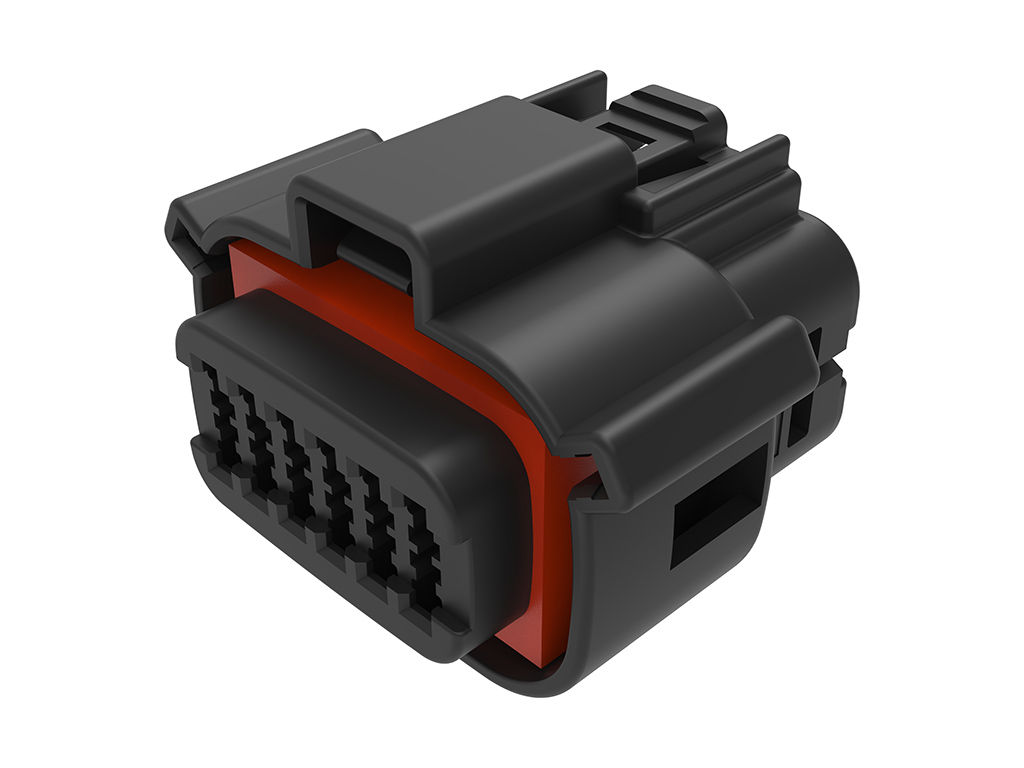

 | Molex 36792-1201 | MX120G Pitch Sealed Female Connector Assembly, Dual Row 12 Circuit, Black | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19069-0093 |
| Other Names: | 0190690093 BB-118-38 |
