| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19067-0008 |
| Series: | 19067 - NylaKrimp |
| Connector Type: | NylaKrimp |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Stud Size: | 1/4" (M6) |
| Insulation Material: | Nylon (PA) |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 8 AWG |
| Wire Insulation Diameter: | 8.98 mm |
| Barrel Type: | Closed - Brazed |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190670008 D-950-14 |
| SKU: | MOL19067-0008 |
19067-0008
Specifications
Detailed Description
The 19067-0008 NylaKrimp Funnel Entry Ring Tongue Terminal is designed for secure and reliable connections in electrical applications. With a stud size of 1/4 (M6) and suitable for 8 AWG wires, this terminal is perfect for a wide range of projects. Featuring a tin contact plating, it ensures excellent conductivity while the nylon insulation material offers durability and protection. CSA and UL agency certifications guarantee its quality and safety standards. The closed-brazed barrel type enhances stability during crimp or compression termination. This RoHS-compliant terminal, with a SKU of 19067-0008, is a must-have for professionals in need of high-performance connectors.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19002-0044 | Avikrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mm?) Wire, Box, Tab 6.35 x 0.81mm |  |
 | Molex 19039-0007 | Avikrimp Snap Plug Receptacle for 14-16 AWG Wire, Nylon, Fits Male Plug Diameter 3.96mm | |
 | Molex 19067-0006 | NylaKrimp Funnel Entry Ring Tongue Terminal for 8 AWG Wire, Stud Size 10 (M5) | |
 | Molex 19067-0025 | NylaKrimp Funnel Entry Ring Tongue Terminal for 8 AWG Wire, Stud Size 5/16 (M8) | |

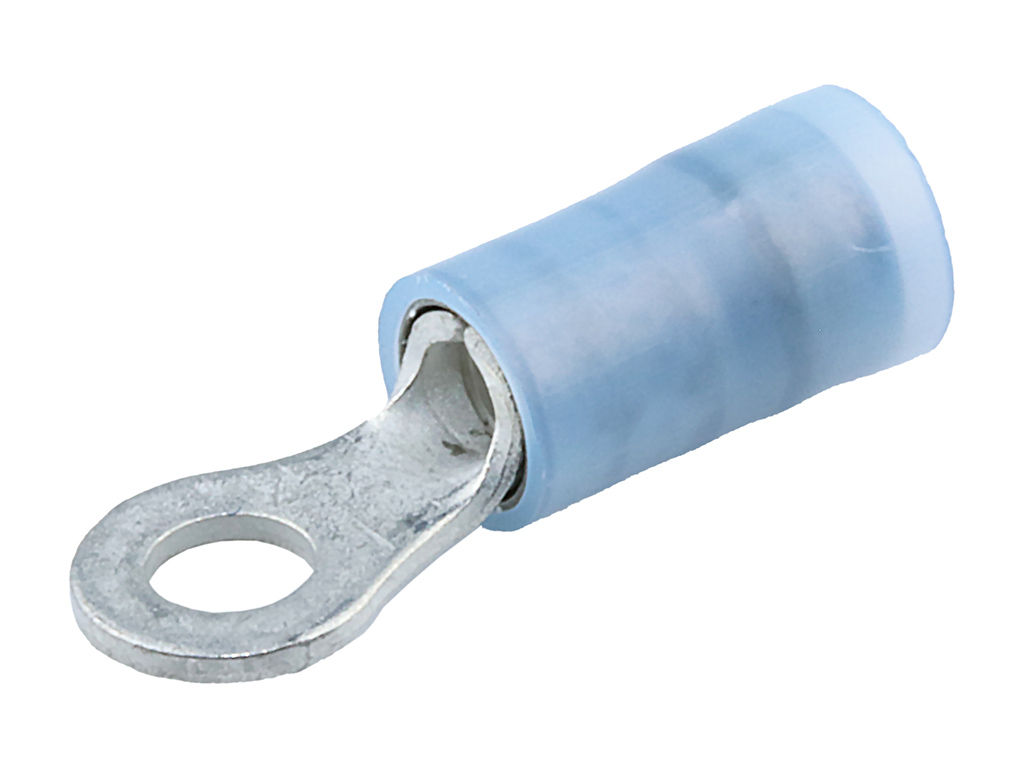

 | Molex 19324-0006 | Avikrimp Metric Ring Terminal for Stud Size 5 (M3), Insulated Barrel | |
