| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19054-0113 |
| Color: | Blue |
| Series: | 19054 - InsulKrimp |
| Connector Type: | InsulKrimp |
| Termination Method: | Crimp or Compression |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Stud Size: | 10 (M5) |
| Insulation Material: | PVC |
| Packaging: | Carton |
| Operating Temperature Range: | 105 °C |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 14 AWG, 16 AWG, 1 - 2.5 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Wire Insulation Diameter: | 4.45 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0190540113 B-237-10X |
| SKU: | MOL19054-0113 |
19054-0113
| Heilind Number: | MOL19054-0113 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19054-0113 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
The 19054-0113 InsulKrimp Ring Tongue Terminal is designed for heavy-duty 14-16 AWG wires, providing a secure and reliable connection. Featuring a durable copper construction with tin plating, it offers excellent conductivity and corrosion resistance. The blue PVC insulation sleeve not only provides added safety but also allows for easy identification. With a stud size of 10 (M5) and a closed barrel design, this terminal is suitable for a wide range of applications. Certified by CSA and UL for quality and safety, and RoHS compliant for environmental responsibility, this terminal is a dependable choice for your wiring needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 03-06-2032 | 1.57mm Diameter Standard .062 Pin and Socket Plug Housing, 3 Circuits, without Mounting Ears, Natural |  |
 | Molex 19023-0005 | InsulKrimp Quick Disconnect, Male, for 18-22 (0.80-0.35mm?) Wire, Box, Tab 6.35 x 0.81mm | |
 | Molex 19054-0086 | RING INSULKRIMP (B-225-14X) | |
 | Molex 19071-0150 | InsulKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19073-0076 | Avikrimp Ring Tongue Terminal for 14 to 16 AWG Wire, Stud Size 1/4 (M6), Length 27.36mm | |

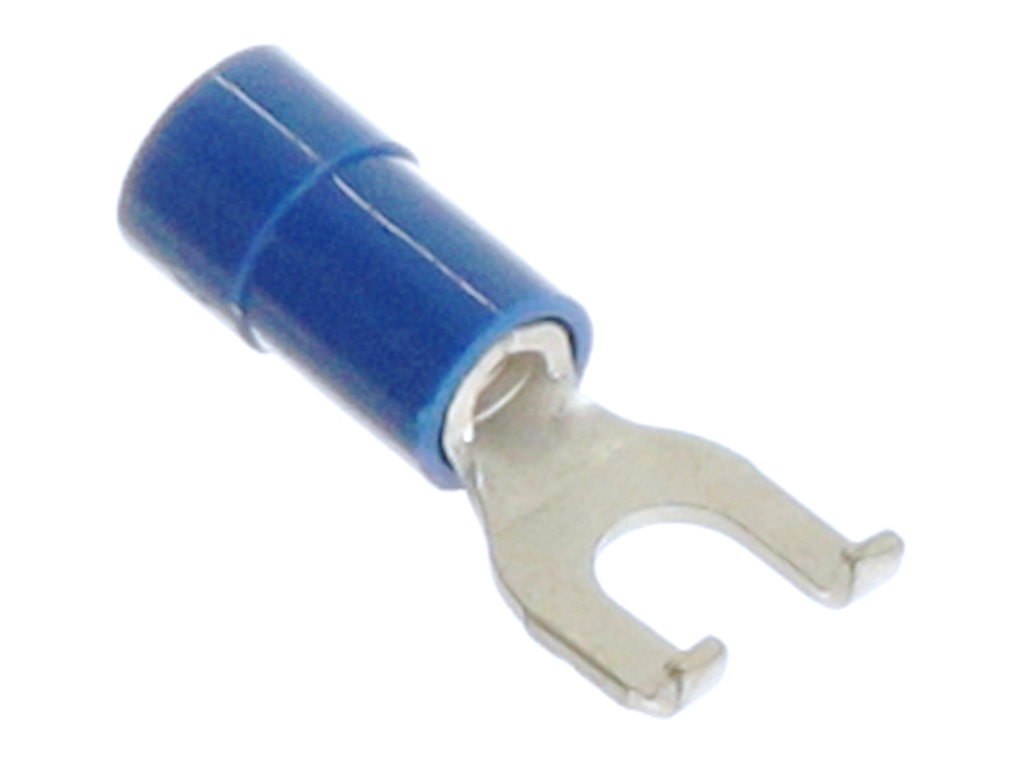

 | Molex 19121-0026 | InsulKrimp Flanged Spade Tongue Terminal for 14-16 AWG Wire, Stud Size 6 (M3.5) | |

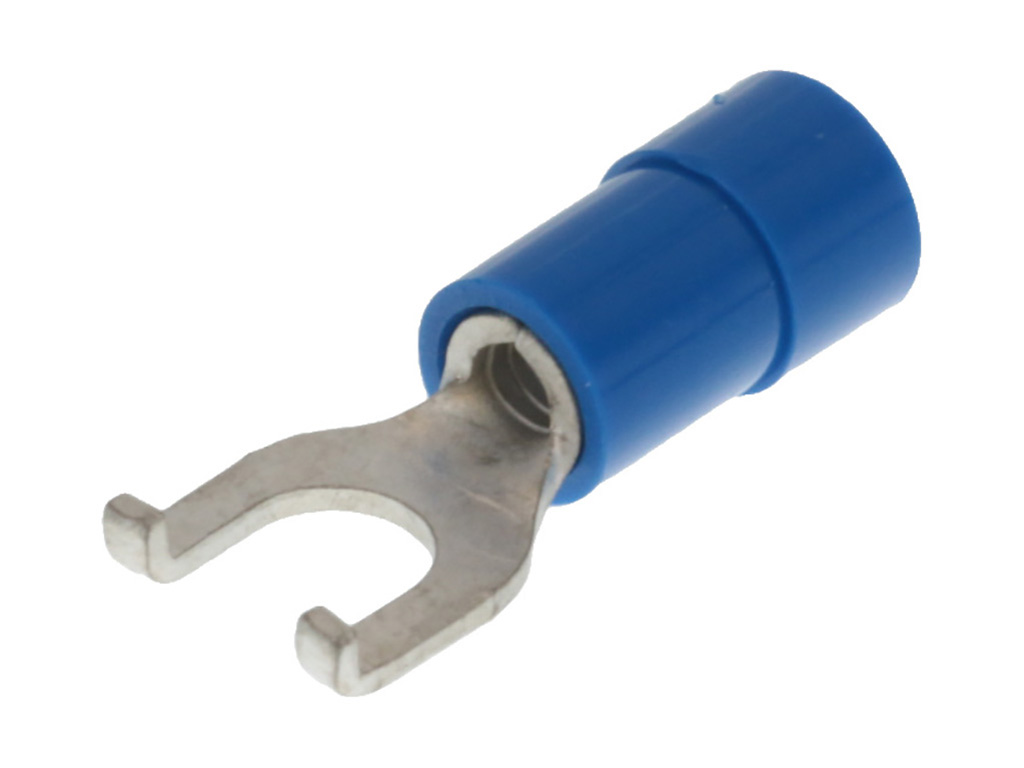

 | Molex 19121-0028 | InsulKrimp Flanged Spade Tongue Terminal for 14-16 AWG Wire, Stud Size 8 (M4) | |
