| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19039-0015 |
| Color: | Red |
| Series: | 19039 - Avikrimp |
| Connector Type: | Avikrimp, Snap Receptacle |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Material: | Brass, Nylon |
| Insulation Material: | Nylon (PA) |
| Orientation: | Straight |
| Insulation Type: | Full |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 4.064 µm |
| Contact Termination Plating Thickness: | 4.064 µm |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.25 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190390015 BRA-8156NT |
| SKU: | MOL19039-0015 |
19039-0015
Specifications
Detailed Description
The 19039-0015 is a high-quality Avikrimp Snap Plug Receptacle designed for 18-22 AWG wires. Constructed with durable red Nylon and featuring a Mylar Tape Carrier, this female connector is engineered to fit male plug diameters of 3.96mm. With a straight orientation and full insulation, it offers reliable performance in various applications. The contact material is brass with a tin plating, ensuring efficient conductivity, while the termination method can be either crimped or compressed. Operating at voltages up to 600V and temperatures ranging from -40 to 105°C, this RoHS-compliant connector guarantees safety and durability in use. Ideal for wire sizes 22 AWG to 18 AWG, it is a essential component in any electrical system.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

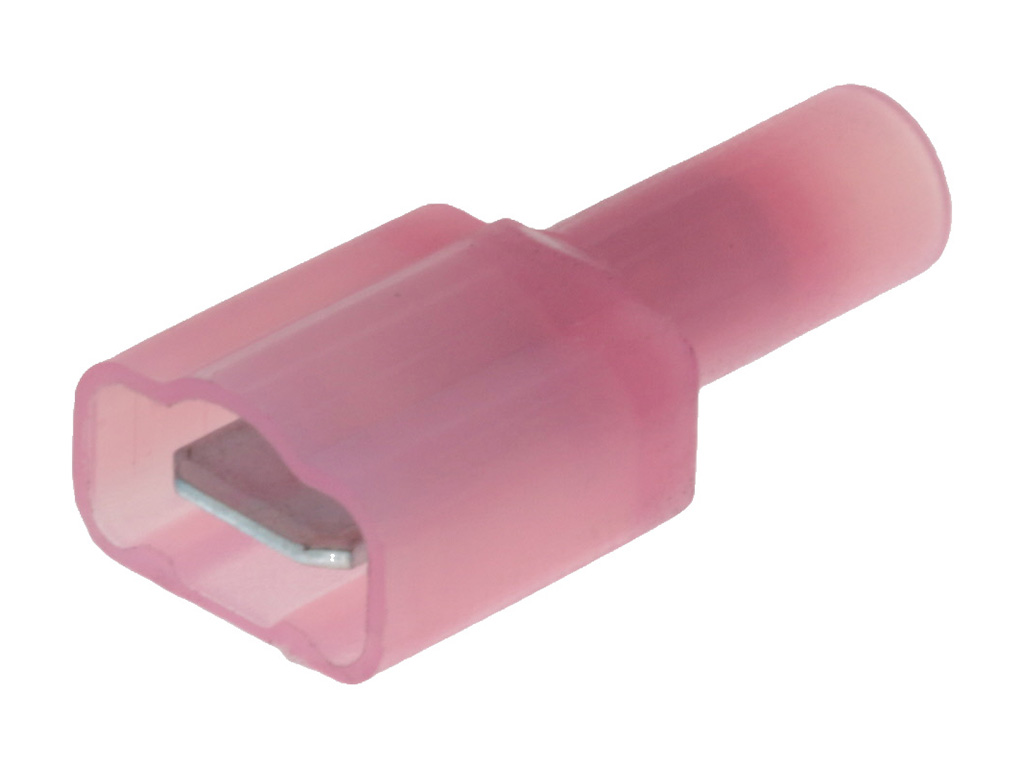

 | Molex 19004-0004 | InsulKrimp Fully Insulated Coupler, Male, for 18-22 AWG Wire, Mylar Tape |  |
 | Molex 19035-0004 | Avikrimp Snap Plug, for 18-22 AWG Wire, Mylar Tape, 22.55mm Length | |

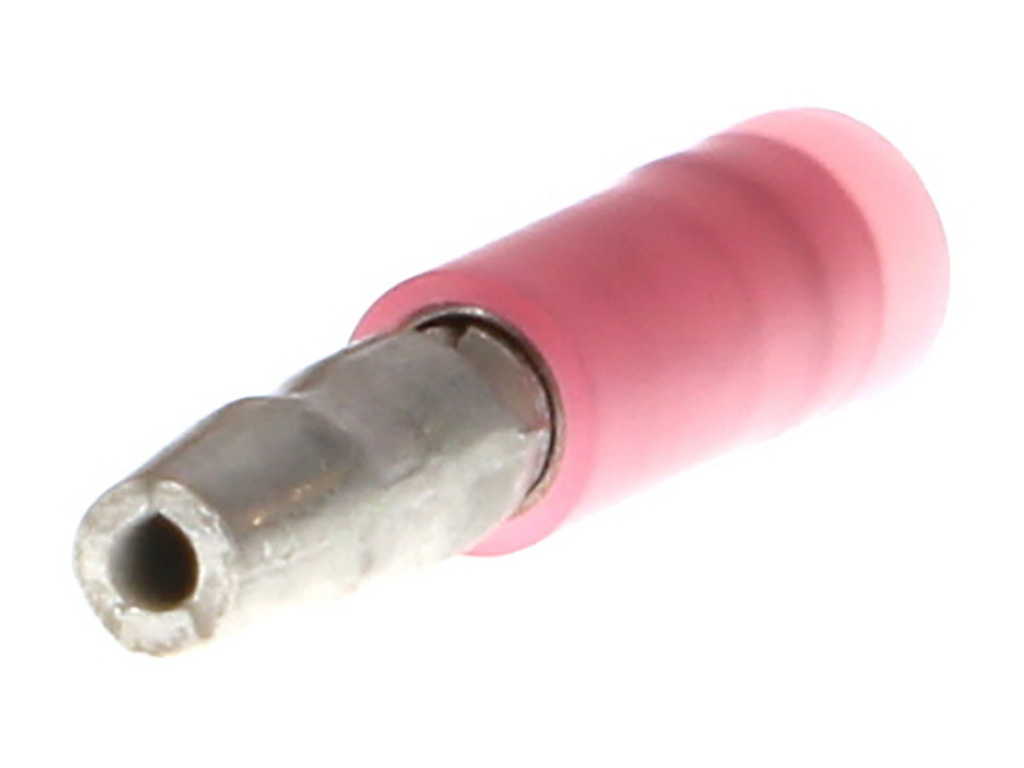

 | Molex 19036-0005 | Avikrimp Snap Plug, for 18-22 AWG Wire, Mylar Tape, 22.78mm Length | |
 | Molex 19036-0009 | Avikrimp Snap Plug, for 14-16 AWG Wire, Mylar Tape, 22.78mm Length | |

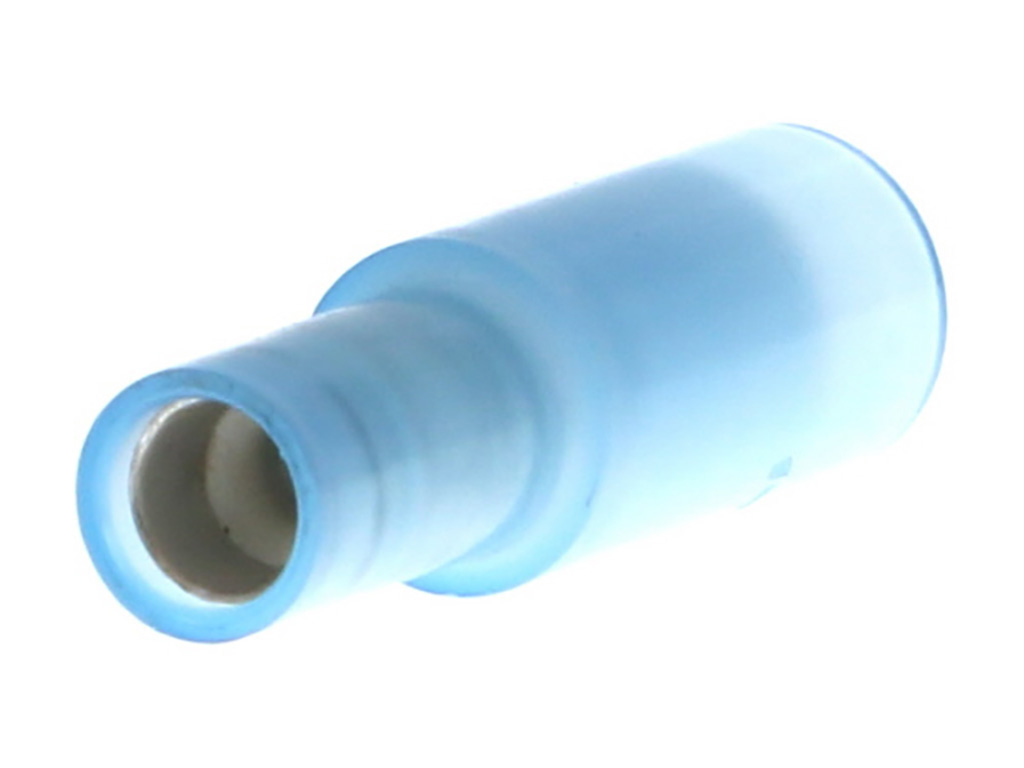

 | Molex 19039-0016 | Avikrimp Snap Plug Receptacle for 14-16 AWG Wire, Nylon, Fits Male Plug Diameter 3.96mm, Mylar Tape Carrier | |
 | Molex 19067-0040 | D-956-10T RING NYLA F.E. TAPE DBL SPACE | |
 | Molex 19164-0014 | Perma-Seal Butt Splice for 18-22 AWG Wire, Mylar Tape Carrier | |

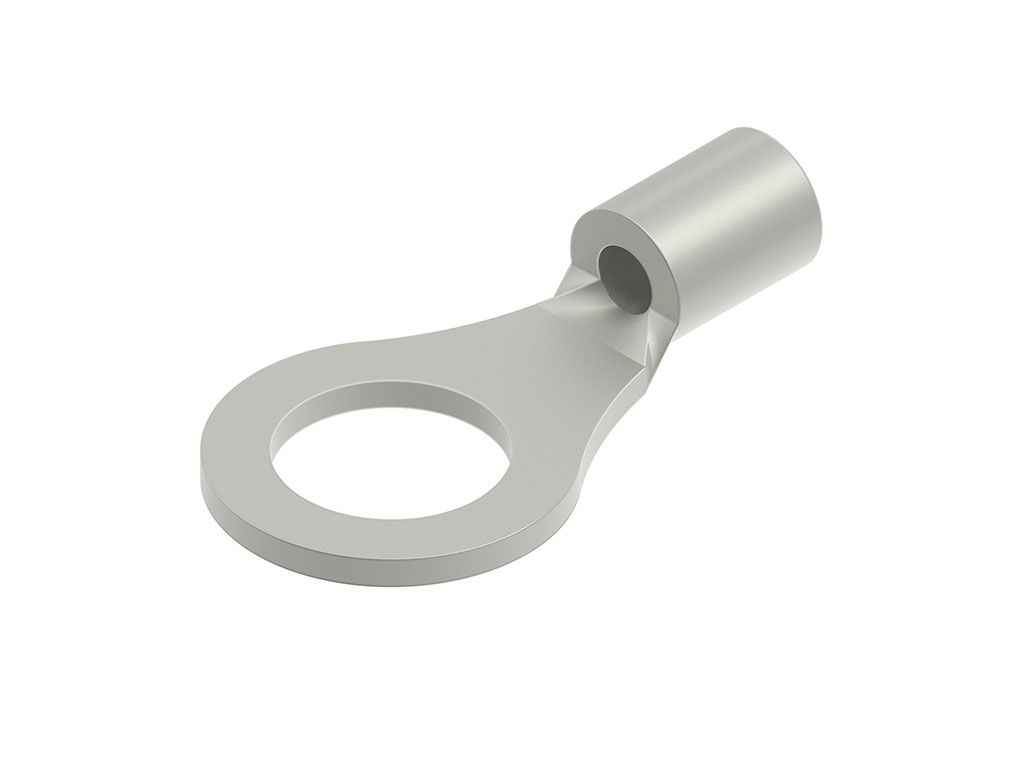

 | Molex 19193-0017 | VersaKrimp Ring Tongue Terminal for 18-22 AWG Wire | |

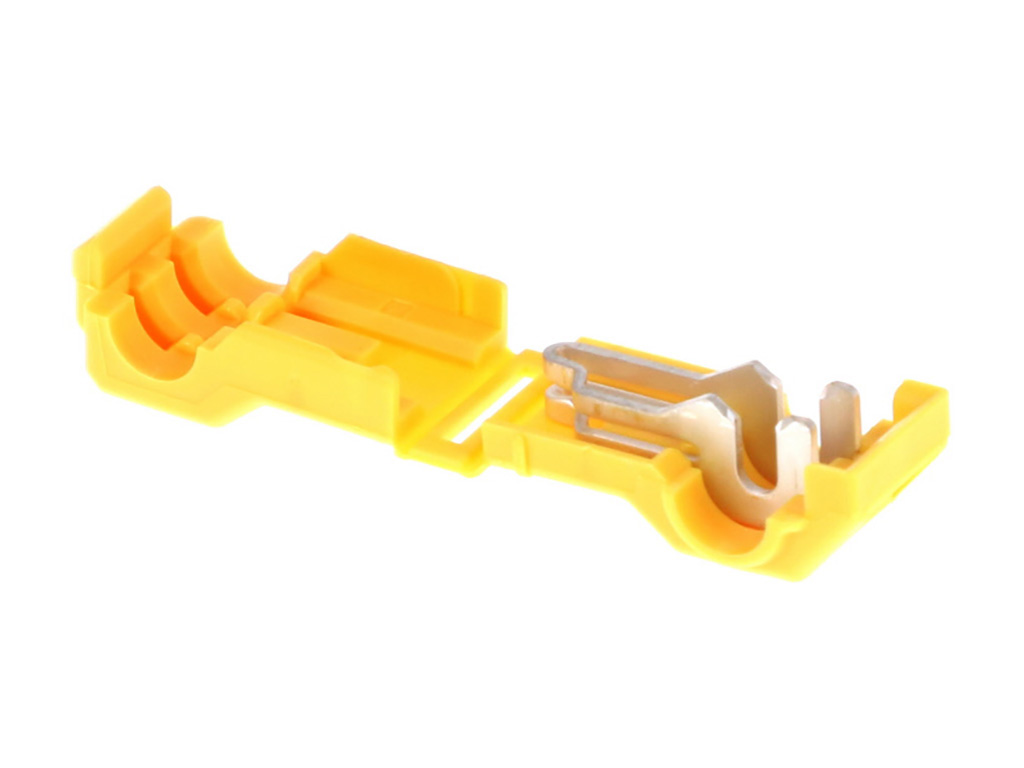

 | Molex 19216-0009 | Ultimate Wire Tap, Yellow, 12 AWG | |

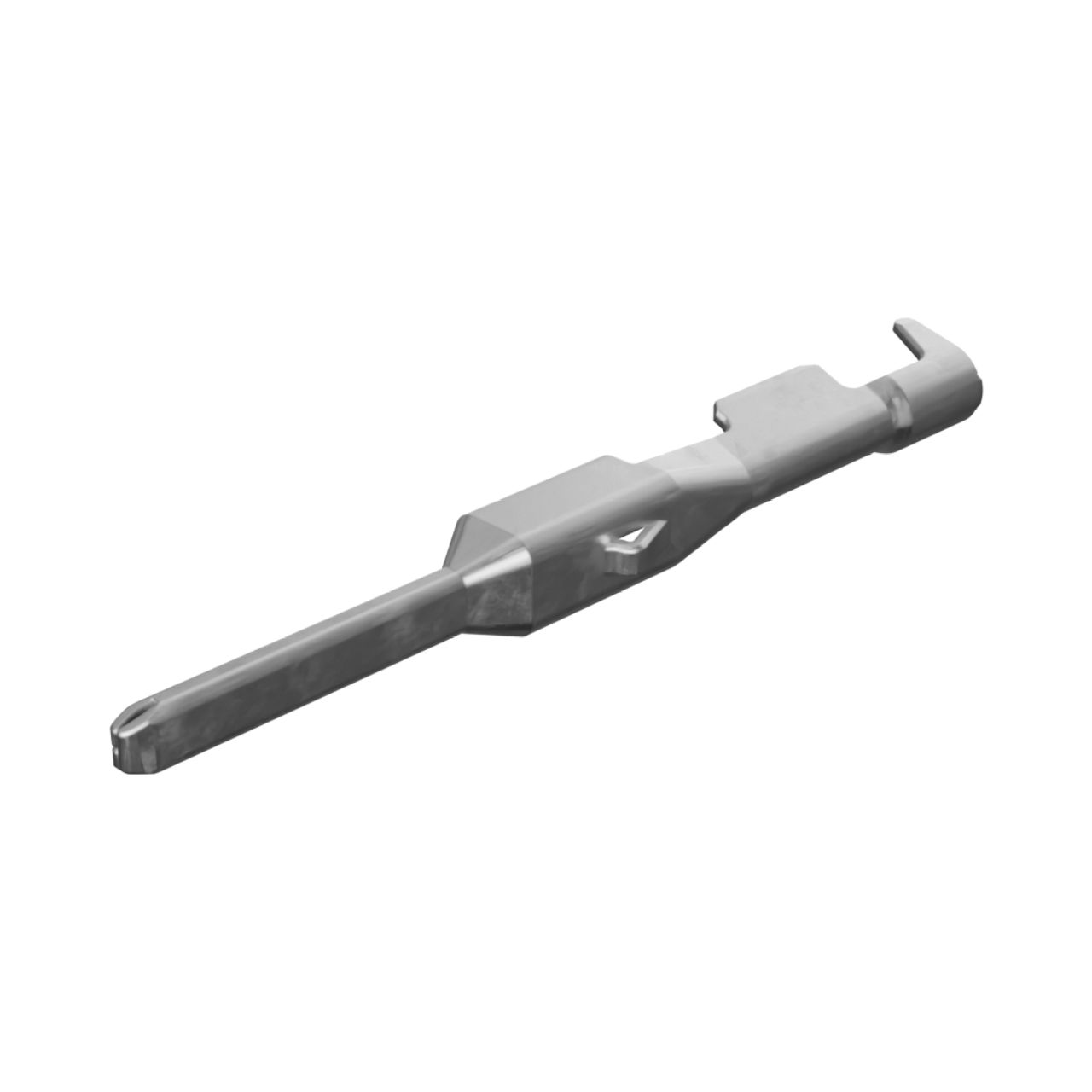

 | Molex 33000-1004 | MX150 Male Terminal, Tin Plating, Preferred Terminal for use in Sealed Application with 0.35-0.50mm | |
