| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19034-0002 |
| Series: | 19034 - InsulKrimp |
| Connector Type: | InsulKrimp, Snap Plug |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Material: | Copper |
| Insulation Material: | PVC |
| Orientation: | Straight |
| Insulation Type: | Partial |
| Packaging: | Bag |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E152602 |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.6 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0190340002 A-259X |
| SKU: | MOL19034-0002 |
19034-0002
| Heilind Number: | MOL19034-0002 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19034-0002 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description

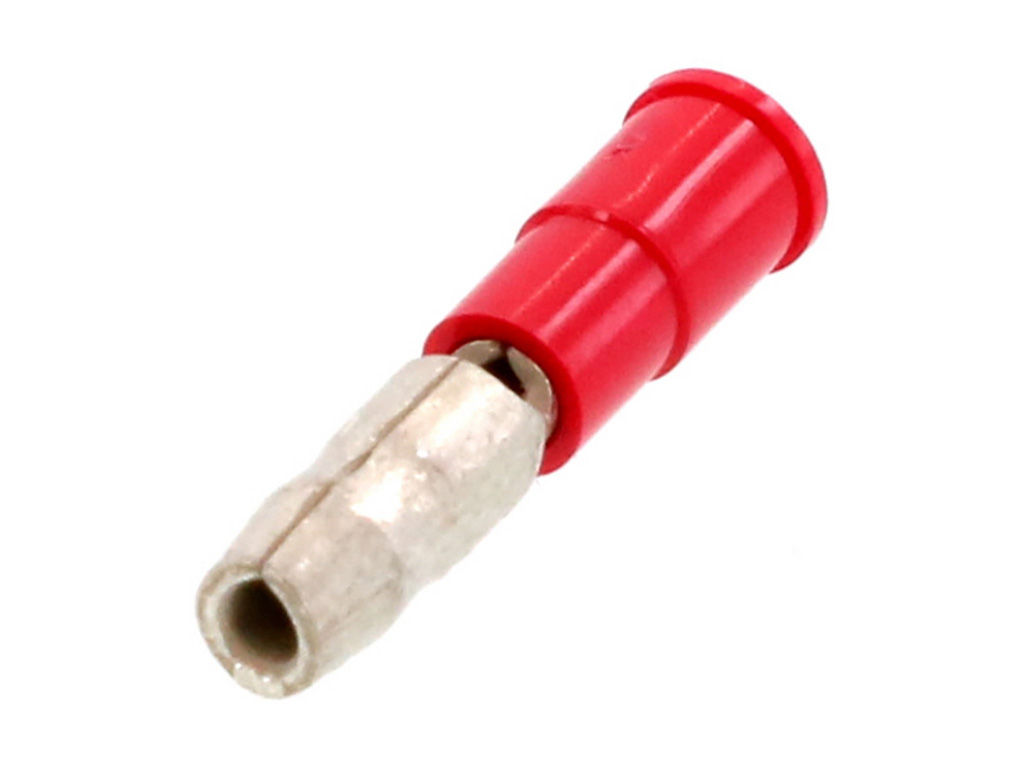

Introducing the 19034-0002 InsulKrimp Snap Plug, designed for seamless connectivity with 18-22 AWG wires. With a length of 24.13mm, this male connector ensures a secure fit through either crimp or compression termination methods. Crafted from copper with a durable tin plating, it guarantees reliable contact with a voltage rating of 600 V. The PVC insulation and partial orientation offer added safety, while meeting RoHS compliance standards. Ideal for various applications, this connector is a must-have for professionals in need of high-quality and efficient wire termination solutions.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

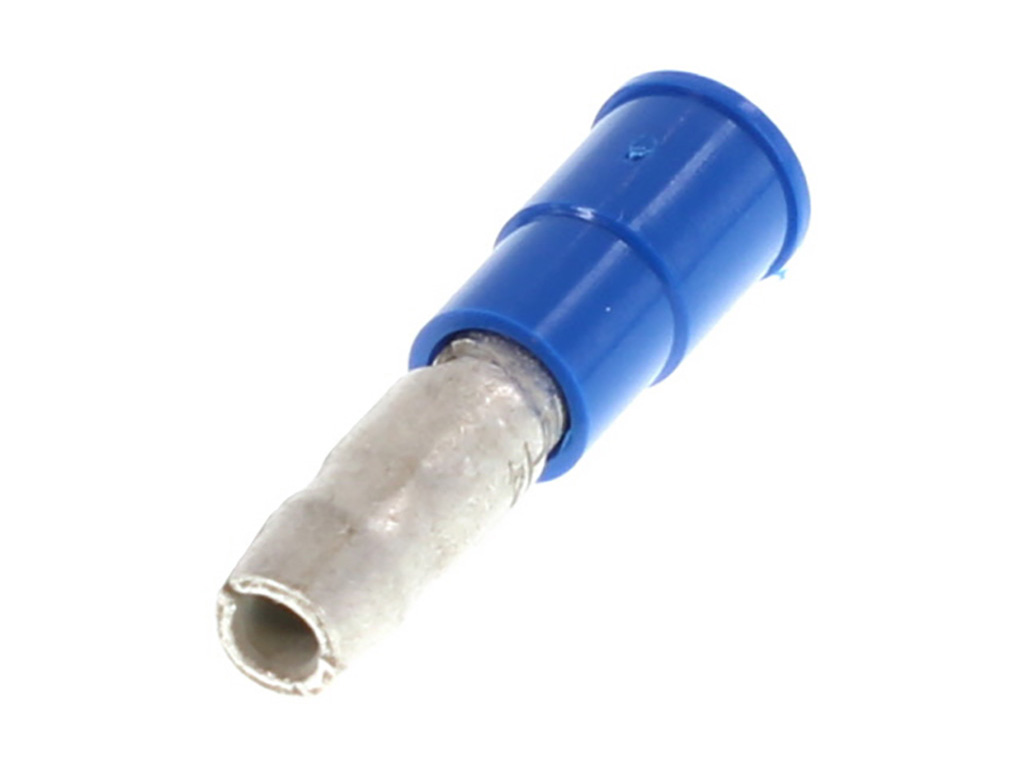

 | Molex 19034-0007 | InsulKrimp Snap Plug, for 14-16 AWG Wire, 24.13mm Length |  |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19034-0002 |
| Other Names: | 0190340002 A-259X |
