| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19023-0004 |
| Color: | Red |
| Series: | 19023 - InsulKrimp |
| Connector Type: | InsulKrimp, Quick Disconnect |
| Gender: | Male |
| Contact Material: | Brass |
| Voltage: | 600 V |
| Material: | Brass |
| Insulation Material: | PVC |
| Compatible Tab Width: | 4.75mm |
| Compatible Tab Thickness: | 0.51mm |
| Orientation: | Straight |
| Insulation Type: | Partial |
| Operating Temperature Range: | -50 - 105 °C |
| Contact Mating Area Plating: | Zinc Chromate |
| Polarized to Mate: | No |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| Contact Termination Plating: | Zinc Chromate |
| Wire Insulation Diameter: | 3.7 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0190230004 AMCT-27XT |
| SKU: | MOL19023-0004 |
19023-0004
Specifications
Detailed Description
The 19023-0004 InsulKrimp Quick Disconnect is a male connector designed for 18-22 gauge wires with Mylar tape insulation. Featuring a red color for easy identification, this connector has a tab size of 4.75 x 0.51mm. Constructed from brass with PVC insulation, it offers reliable performance in a wide range of applications. With a voltage rating of 600V and operating temperature range from -50 to 105°C, this connector is suitable for various environments. Its straight orientation and partial insulation make it easy to install, while its RoHS compliance ensures it meets environmental standards. Perfect for use in automotive, industrial, and electronic applications, the InsulKrimp Quick Disconnect is a dependable solution for your wire termination needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 02-09-1102 | 2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1189, Female, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Reel |  |
 | Molex 03-06-1062 | 1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, 6 Circuits, without Mounting Ears, Natural | |
 | Molex 10-01-3036 | 5.08mm Pitch SPOX Crimp Terminal Housing, 3 Circuits, Natural | |

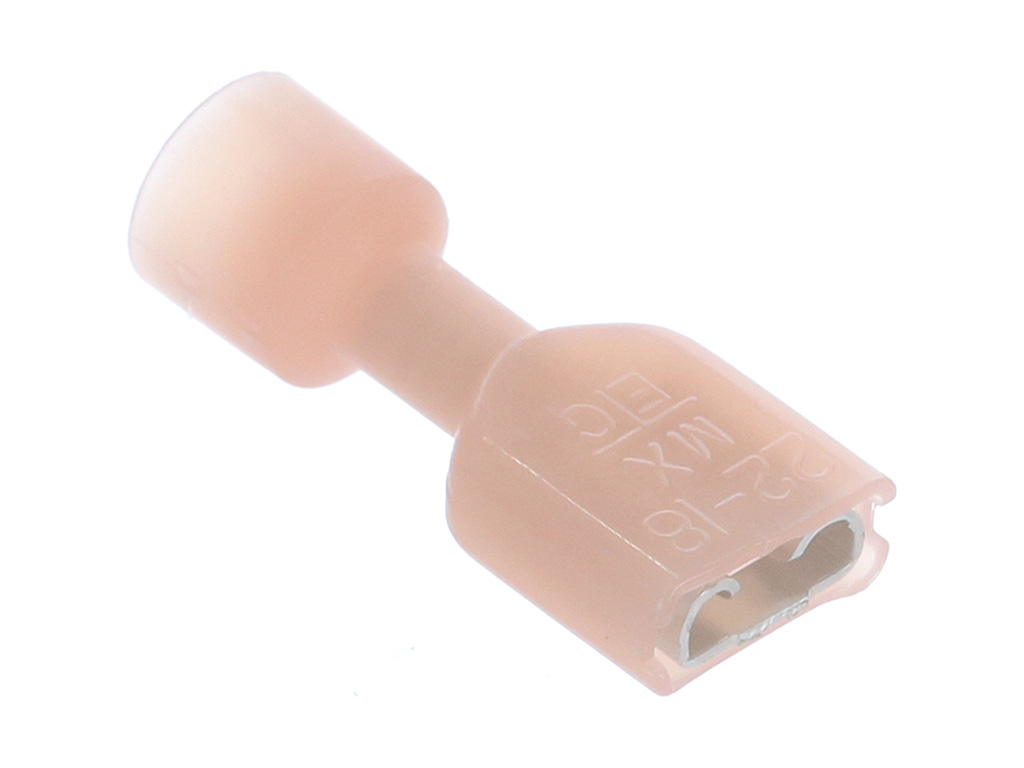

 | Molex 19003-0008 | InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?), Box, Tab 6.35 x 0.81mm | |
