| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19022-0026 |
| Series: | 19022 - Krimptite |
| Connector Type: | Krimptite, Quick Disconnect |
| Gender: | Male |
| Contact Material: | Brass |
| Material: | Brass |
| Insulation Material: | None |
| Compatible Tab Width: | 6.35mm |
| Compatible Tab Thickness: | 0.81mm |
| Orientation: | Straight |
| Insulation Type: | None |
| Packaging: | Adhesive Tape on Reel |
| Contact Mating Area Plating: | Zinc Chromate |
| Polarized to Mate: | No |
| Wire Size: | 14 AWG, 16 AWG, 1.3 - 2 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E79133 |
| Contact Termination Plating: | Zinc Chromate |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Part Aliases: | 0190220026 MCT-1T |
| SKU: | MOL19022-0026 |
19022-0026
| Heilind Number: | MOL19022-0026 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19022-0026 |
| Datasheet: | Product Specification |
| ECAD Model: | |

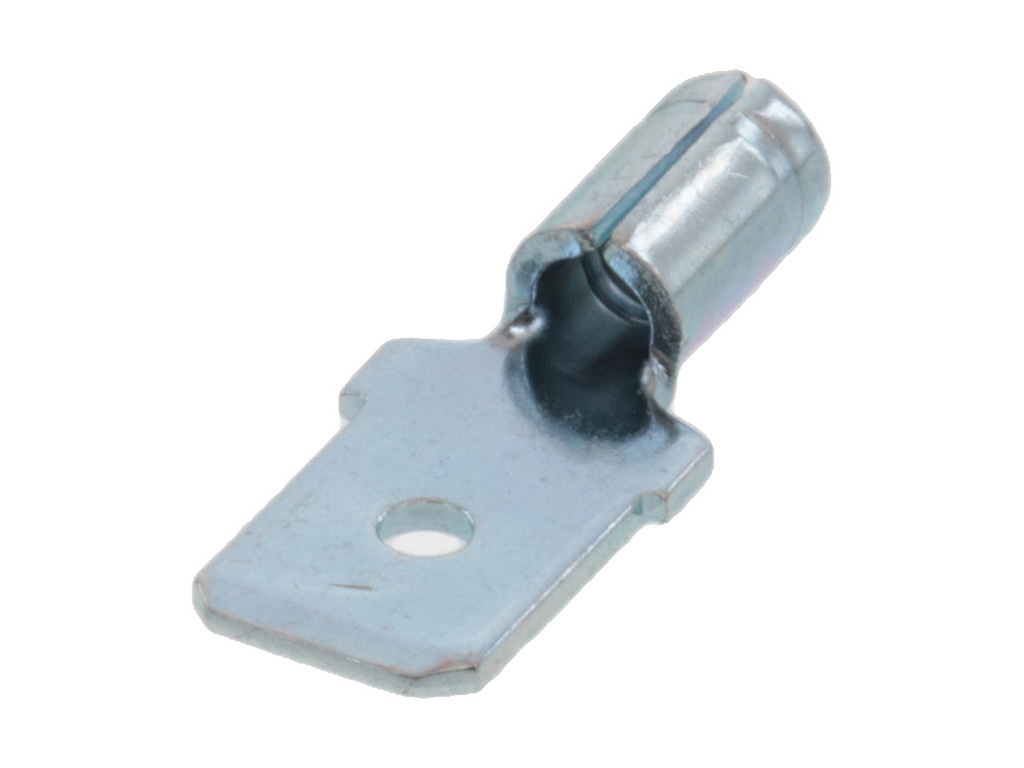

Description:
Krimptite Quick Disconnect, Male, for 14-16 (2.00-1.30mm?) Wire, Mylar Tape, Tab 6.35 x 0.81mm
More >>Specifications
Detailed Description
Introducing the 19022-0026 Krimptite Quick Disconnect, a male connector designed for seamless termination of 14-16 gauge (2.00-1.30mm²) wires with Mylar tape. Featuring a durable brass construction and a zinc chromate plating in the contact mating area, this connector ensures reliable performance. With a compatible tab width of 6.35mm and a thickness of 0.81mm, it offers a secure fit for a wide range of applications. This straight orientation connector, certified by LR18689 and E79133, is RoHS compliant, making it a safe and environmentally friendly choice for your connectivity needs. Individually packaged with adhesive tape on a reel, it is convenient for bulk installations. Trust the 19022-0026 for efficient and durable wire connections in your projects.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19160-0002 | Closed-End Insulated Splice for 10-16 AWG Wire |  |

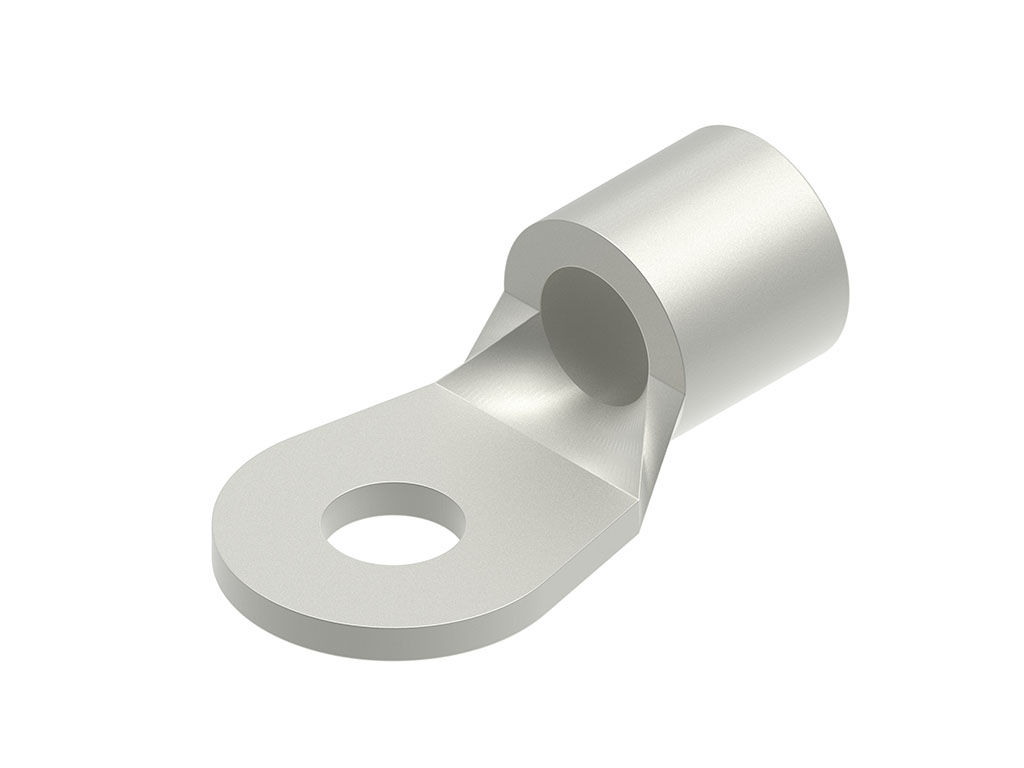

 | Molex 19193-0261 | VersaKrimp Ring Tongue Terminal for 4 AWG Wire | |

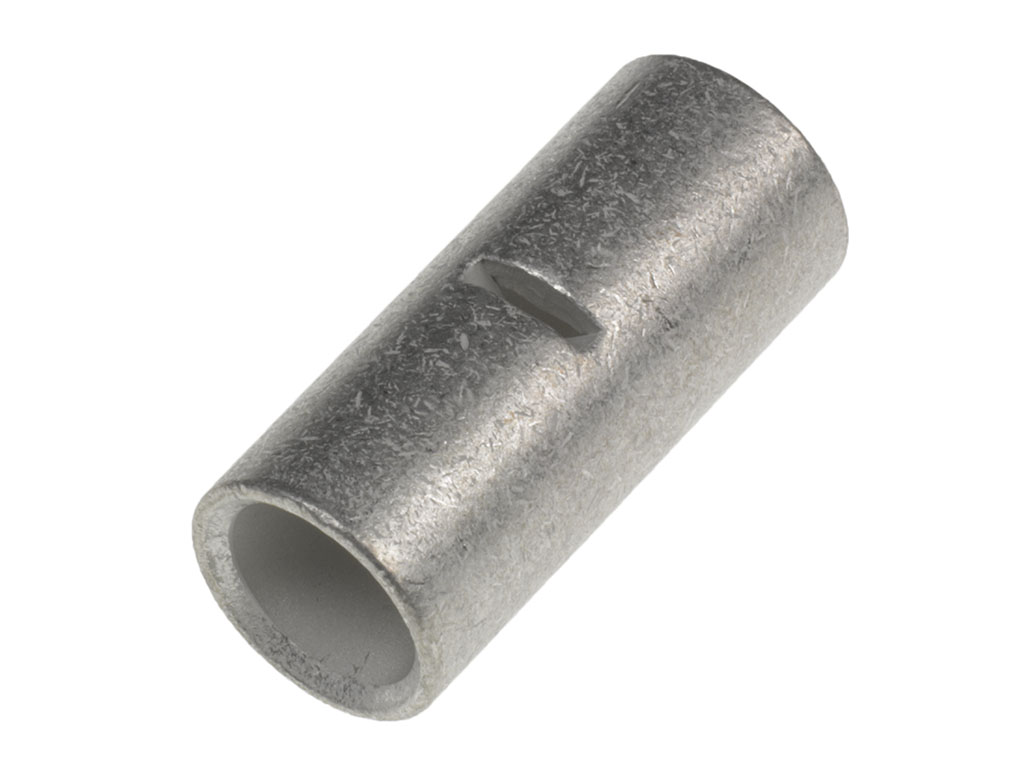

 | Molex 19215-0050 | VersaKrimp Parallel Splice for 4/0 AWG Wire | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
| 01/08/2018 | 503271 - Supplier Change. This letter is to inform you that Molex is adding a new supplier or the supplier is making a change affecting the part(s) identified in this notice. There will be no negative impact to product performance as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19022-0026 |
| Other Names: | 0190220026 MCT-1T |
