| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19019-0022 |
| Color: | Blue |
| Series: | 19019 - Avikrimp |
| Connector Type: | Avikrimp, Quick Disconnect |
| Gender: | Female |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 300 V |
| Material: | Brass |
| Insulation Material: | Nylon (PA) |
| Compatible Tab Width: | 2.79mm |
| Compatible Tab Thickness: | 0.51mm |
| Orientation: | Straight |
| Insulation Type: | Partial |
| Operating Temperature Range: | -65 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Polarized to Mate: | No |
| Wire Size: | 14 AWG, 16 AWG, 1.3 - 2 mm² |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.5 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190190022 BB-8132 |
| SKU: | MOL19019-0022 |
19019-0022
Specifications
Detailed Description

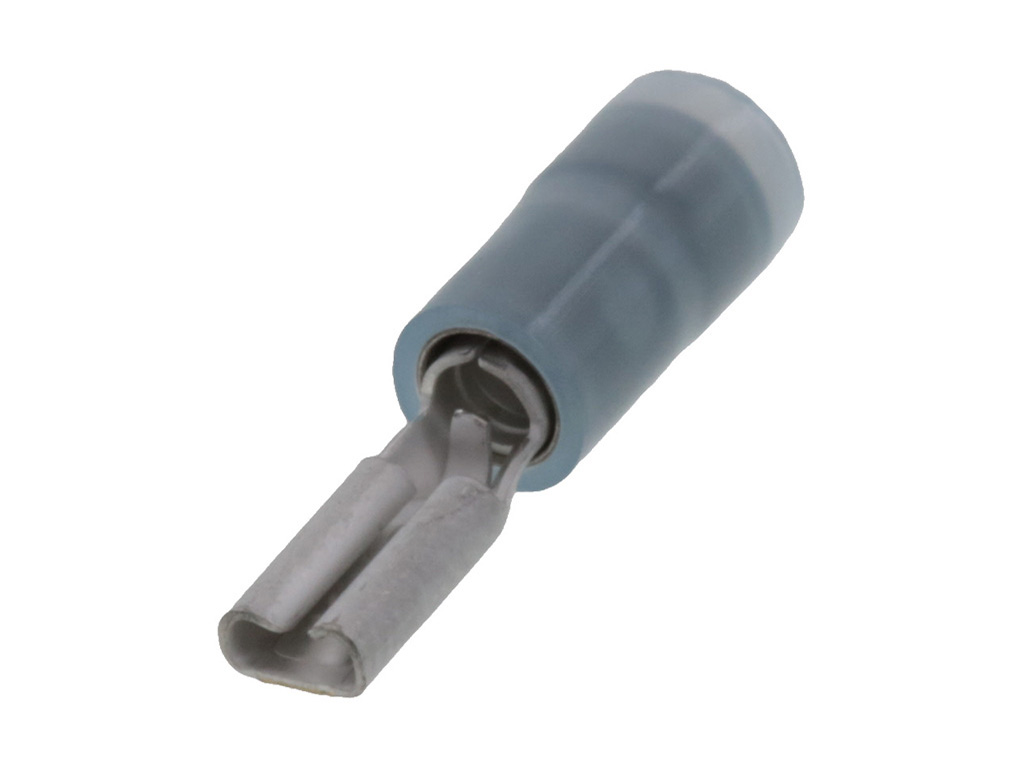

The 19019-0022 is a blue Avikrimp Quick Disconnect terminal designed for female connections on 14-16 gauge wires. Featuring a durable brass construction with tin plating, this terminal ensures reliable conductivity with a maximum voltage of 300 V. Its nylon insulation and operating temperature range of -65 to 105 °C guarantee safe and efficient performance in various environments. The 2.79 x 0.51mm tab accommodates easy and secure connections, with a straight orientation and partial insulation for convenience. RoHS compliant and suitable for a wide range of applications, this terminal is a dependable choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 16-02-1115 | SL Crimp Terminal, Series 71851, Female, with 0.76µm Selective Gold (Au) Plated Contact, 24-22 AWG |  |
 | Molex 19039-0009 | Avikrimp Snap Plug Receptacle for 14-16 AWG Wire, PVC, Fits Male Plug Diameter 4.57mm | |
 | Molex 19071-0136 | InsulKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19071-0153 | InsulKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19071-0221 | InsulKrimp Ring Tongue Terminal for 6 AWG Wire | |
 | Molex 19160-0002 | Closed-End Insulated Splice for 10-16 AWG Wire | |

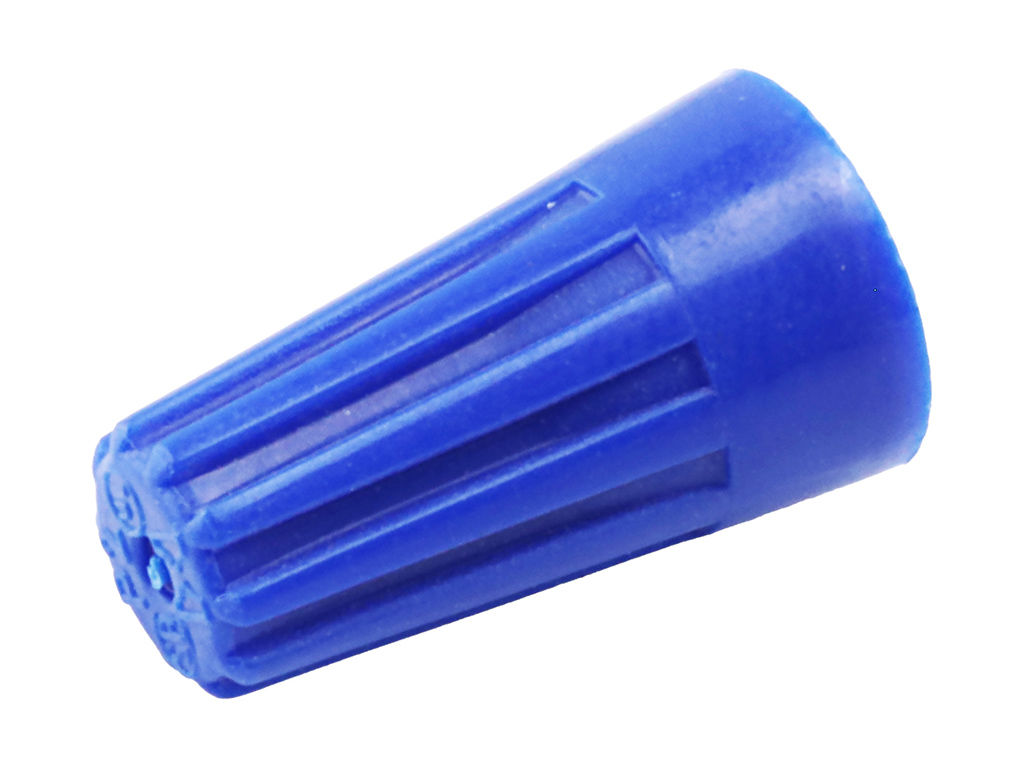

 | Molex 19160-0040 | Twist Lock Splice for 14-22 AWG Wire, Blue | |

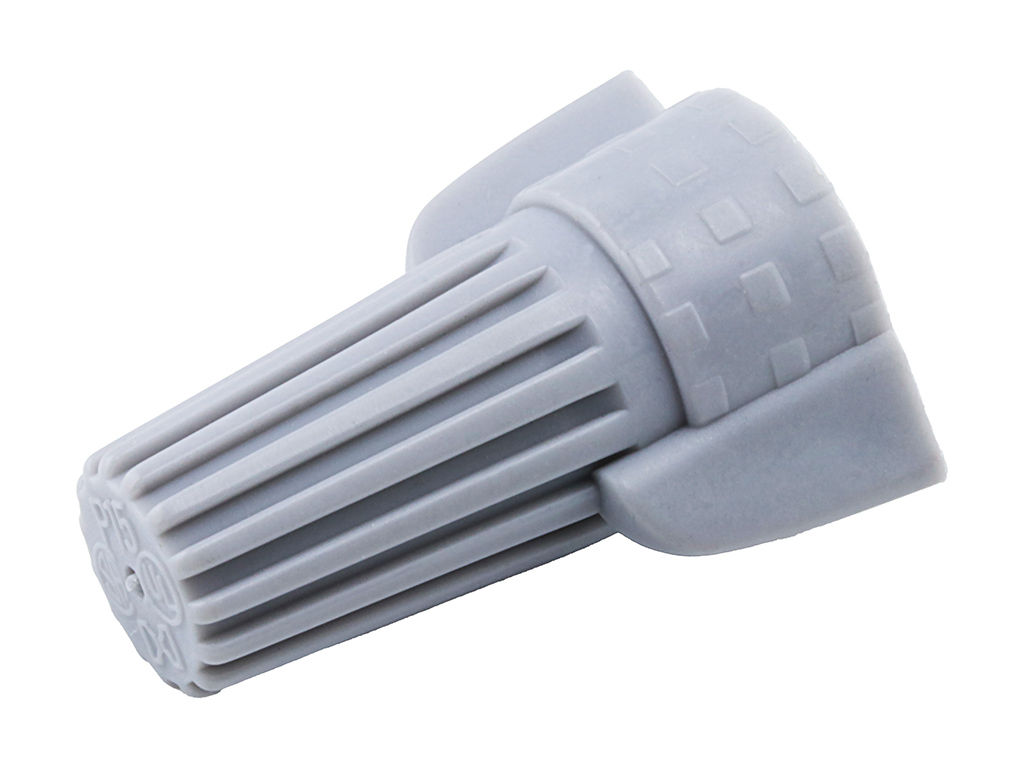

 | Molex 19160-0046 | Wing Lock Splice for 8-18 AWG Wire, Grey | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19019-0022 |
| Other Names: | 0190190022 BB-8132 |
