| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19016-0041 |
| Series: | 19016 - Krimptite |
| Connector Type: | Krimptite, Quick Disconnect |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Material: | Brass |
| Insulation Material: | None |
| Compatible Tab Width: | 4.75mm |
| Compatible Tab Thickness: | 0.81mm |
| Orientation: | Straight |
| Insulation Type: | None |
| Packaging: | Adhesive Tape on Reel |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Polarized to Mate: | No |
| Wire Size: | 14 AWG, 16 AWG, 1.3 - 2 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E79133 |
| Contact Termination Plating: | Tin |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Part Aliases: | 0190160041 BB-1138-032T |
| SKU: | MOL19016-0041 |
19016-0041
| Heilind Number: | MOL19016-0041 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19016-0041 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:

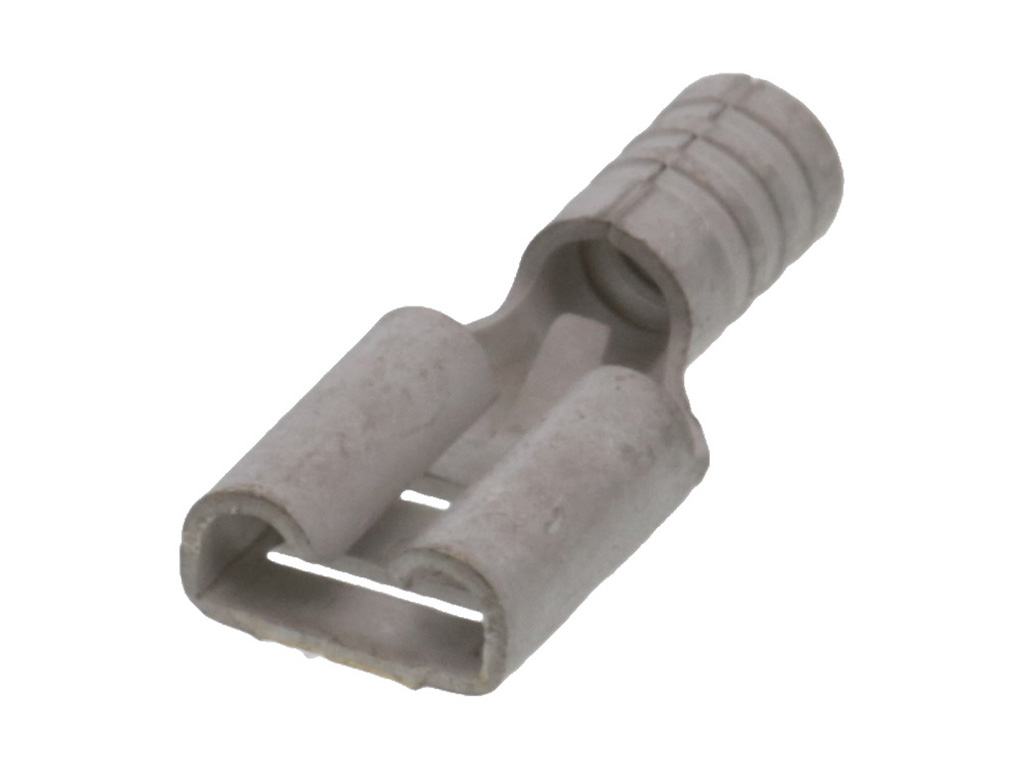

Krimptite Quick Disconnect, Female, for 14-16 (2.00-1.30mm?) Wire, Mylar Tape, Tab 4.75 x 0.81mm
More >>Specifications
Detailed Description
Introducing the 19016-0041 Krimptite Quick Disconnect, a female connector designed for seamless termination of 14-16 gauge wires with Mylar tape insulation. Featuring a 4.75 x 0.81mm tab, this straight orientation connector is constructed of brass with tin plating, ensuring durability and reliable conductivity. Certified by LR18689 and E79133, it meets stringent quality standards. This RoHS-compliant connector is tape-reel packaged for convenience. Perfect for a wide range of applications, it offers easy crimp or compression termination for efficient installation. Trust the 19016-0041 for secure and high-performance wire connections.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19016-0041 |
| Other Names: | 0190160041 BB-1138-032T |
