| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19005-0015 |
| Color: | Yellow |
| Series: | 19005 - InsulKrimp |
| Connector Type: | InsulKrimp, Quick Disconnect |
| Gender: | Female |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Material: | Brass, Nylon |
| Insulation Material: | Nylon (PA) |
| Compatible Tab Width: | 6.35mm |
| Compatible Tab Thickness: | 0.81mm |
| Orientation: | Straight |
| Insulation Type: | Full |
| Operating Temperature Range: | -65 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Polarized to Mate: | No |
| Wire Size: | 10 AWG, 12 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 6.99 mm |
| Glow Wire Capable: | Yes |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190050015 C-2265T |
| SKU: | MOL19005-0015 |
19005-0015
| Heilind Number: | MOL19005-0015 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19005-0015 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
InsulKrimp Fully Insulated Female Quick Disconnect, for 10-12 AWG Wire, Mylar Tape
More >>Specifications
Detailed Description
Easily and securely connect wires with our InsulKrimp Fully Insulated Female Quick Disconnect terminal, designed for 10-12 AWG wires. Featuring a durable nylon and brass construction with tin plating, this yellow terminal ensures reliable conductivity with a maximum voltage of 600 V. Its straight orientation and full nylon insulation accommodate 6.35mm wide tabs, meeting CSA and UL certification standards for quality and safety. With a wide operating temperature range of -65 to 105 °C and glow wire capability, this RoHS-compliant terminal is ideal for various industrial applications. Available in stock for immediate shipping.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-56-0110 | KK 254 Crimp Terminal, 22-30 AWG, Bag, Gold (Au), Nickel (Ni) Under Plating |  |
 | Molex 19001-0010 | Avikrimp Quick Disconnect, Male, for 10-12 (5.00-3.30mm?), Box, Tab 6.35 x 0.81mm | |
 | Molex 19003-0003 | InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?), Mylar Tape, Tab 6.35 x 0.81mm | |
 | Molex 19003-0042 | InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm?), Mylar Tape, Tab 6.35 x 0.81mm | |
 | Molex 19003-0055 | InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm?), Mylar Tape, Tab 4.75 x 0.51mm | |

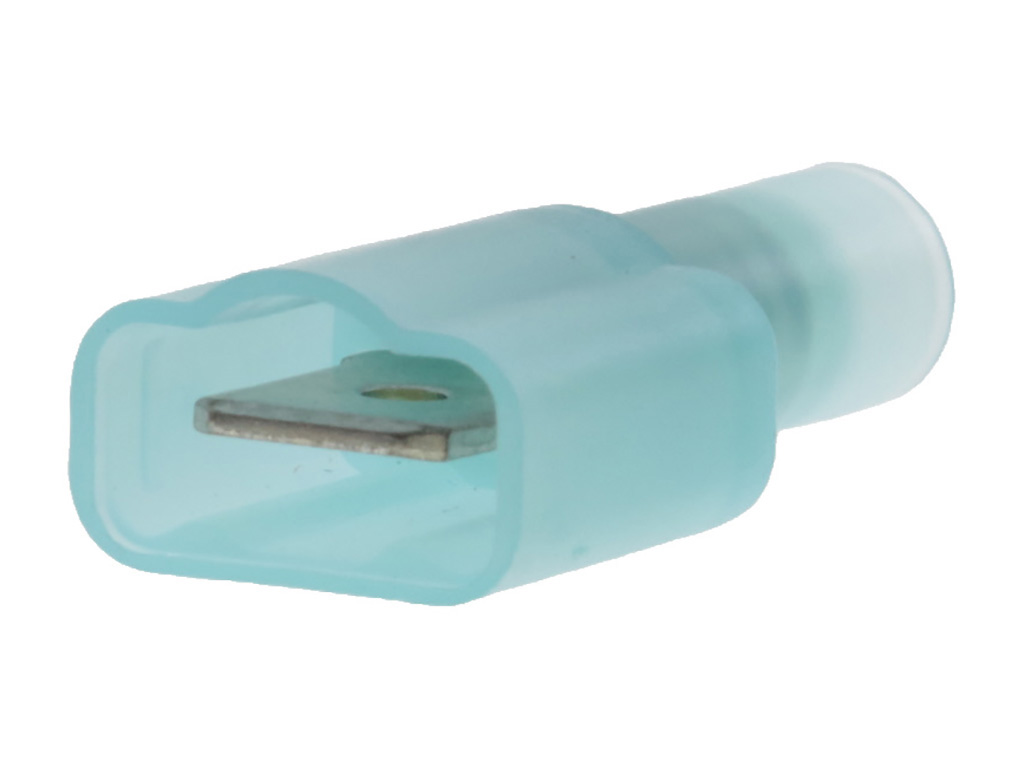

 | Molex 19004-0008 | InsulKrimp Fully Insulated Coupler, Male, for 14-16 AWG Wire, Mylar Tape | |
 | Molex 19005-0009 | InsulKrimp Fully Insulated Coupler, Female, for 14-16 AWG Wire, Mylar Tape | |

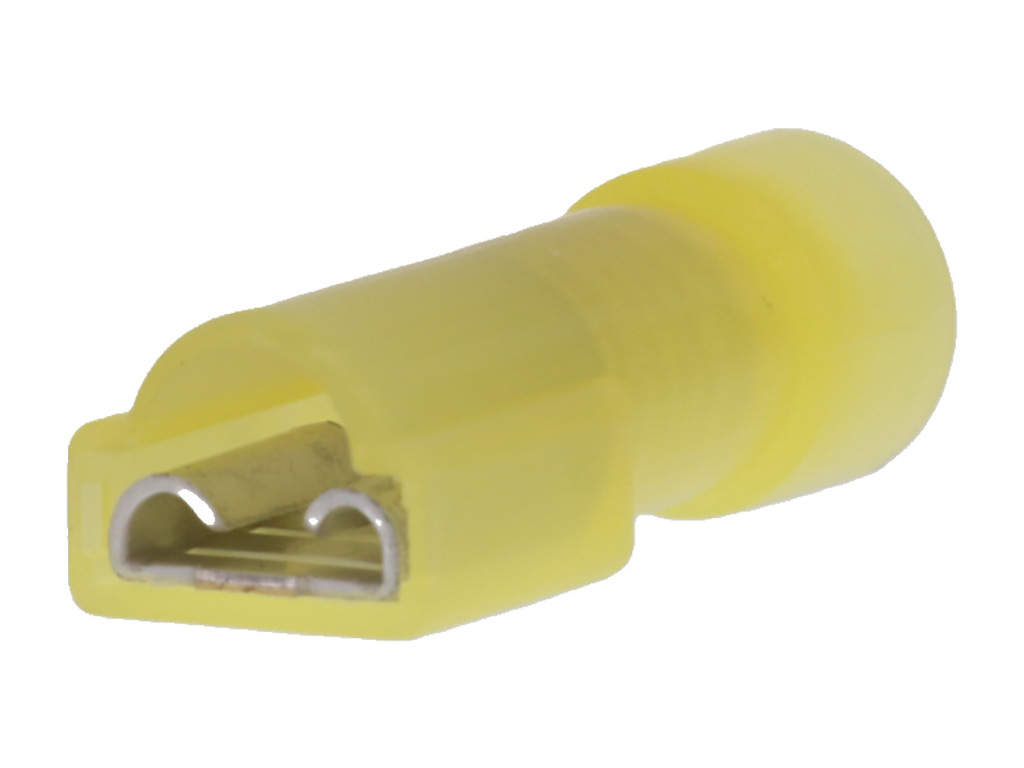

 | Molex 19005-0014 | InsulKrimp Fully Insulated Female Quick Disconnect, for 10-12 AWG Wire, Continuous Molded Strip | |
