| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19005-0001 |
| Color: | Red |
| Series: | 19005 - InsulKrimp |
| Connector Type: | InsulKrimp, Quick Disconnect |
| Gender: | Female |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Material: | Brass, Nylon |
| Insulation Material: | Nylon (PA) |
| Compatible Tab Width: | 6.35mm |
| Compatible Tab Thickness: | 0.81mm |
| Orientation: | Straight |
| Insulation Type: | Full |
| Operating Temperature Range: | -65 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Polarized to Mate: | No |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 4.19 mm |
| Glow Wire Capable: | Yes |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190050001 AA-2261 |
| SKU: | MOL19005-0001 |
19005-0001
| Heilind Number: | MOL19005-0001 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19005-0001 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
The 19005-0001 is a red InsulKrimp Fully Insulated Coupler designed for 18-22 AWG wires. With a female Quick Disconnect connector type, this brass contact with tin plating ensures reliable conductivity up to 600 V. Constructed of nylon and brass, it features full insulation for added safety. Compatible with 6.35mm tab widths and 0.81mm tab thicknesses, this straight orientation connector is suitable for a variety of applications. Meeting RoHS compliance and with a glow wire capability, this product guarantees both performance and environmental responsibility.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

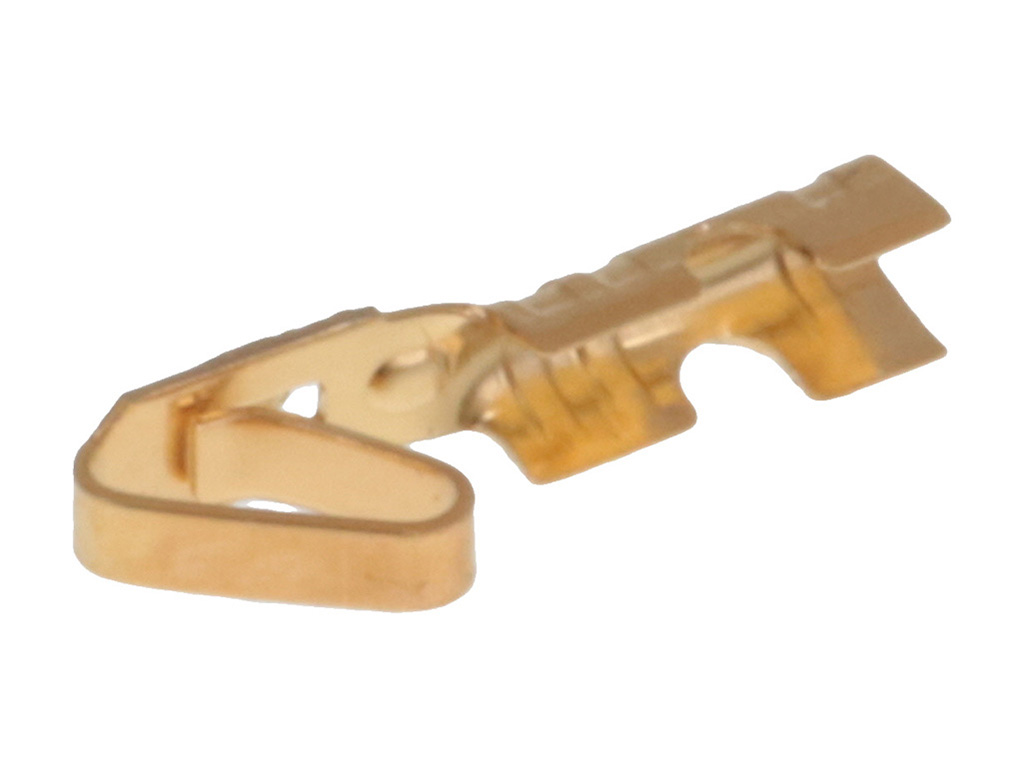

 | Molex 08-56-0110 | KK 254 Crimp Terminal, 22-30 AWG, Bag, Gold (Au), Nickel (Ni) Under Plating |  |
 | Molex 19003-0040 | InsulKrimp Female Quick Disconnect, for 14-16 AWG Wire | |

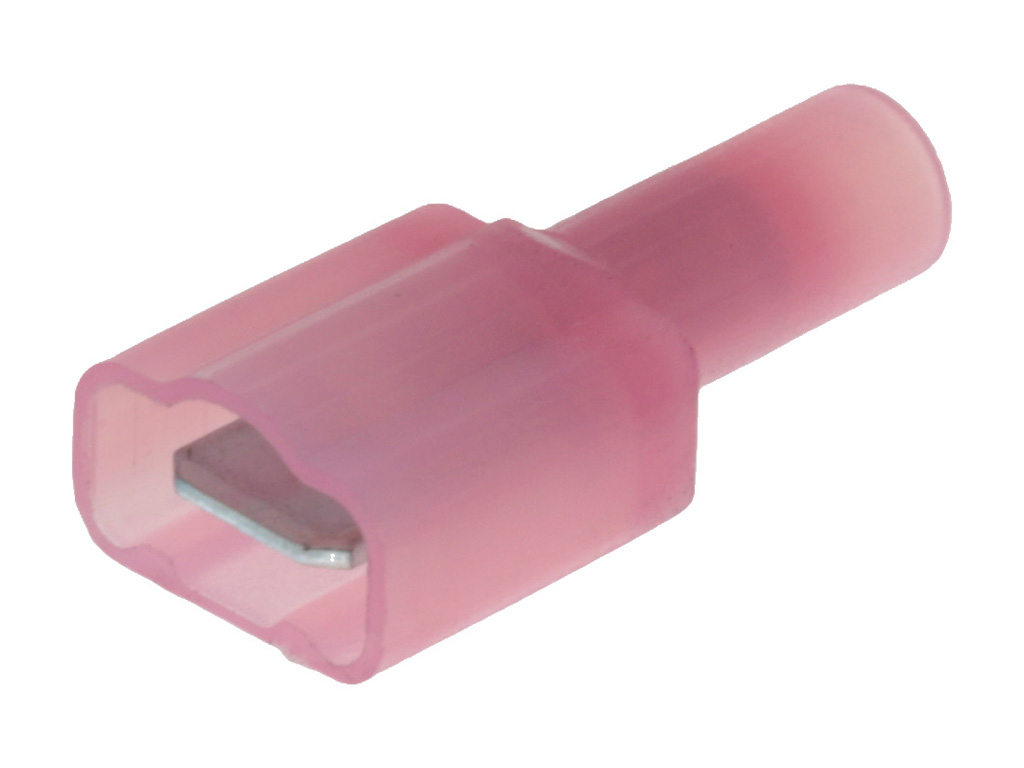

 | Molex 19004-0001 | InsulKrimp Fully Insulated Coupler, Male, for 18-22 AWG Wire, Box | |
 | Molex 19005-0005 | InsulKrimp Fully Insulated Coupler, Female, for 14-16 AWG Wire, Box | |
 | Molex 19005-0010 | InsulKrimp Fully Insulated Female Quick Disconnect, for 10-12 AWG Wire, Box | |
 | Molex 19012-0029 | 250X032 PIG/BACK AVIK AA-8301 SPM | |

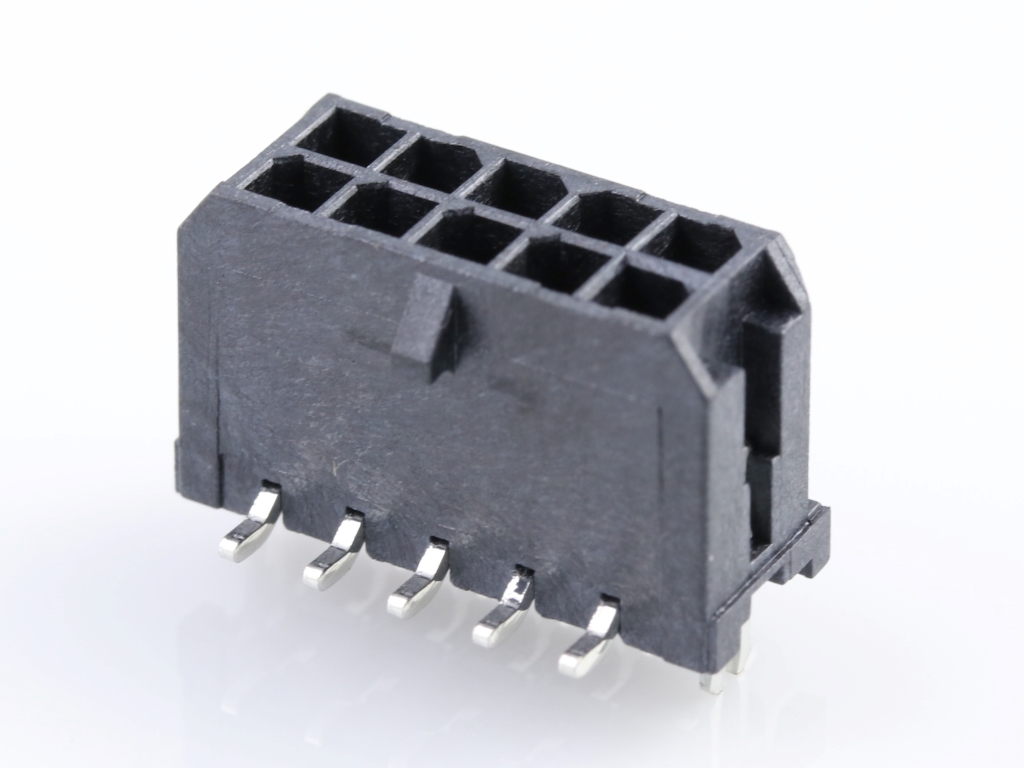

 | Molex 43045-1016 | Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 10 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black | |
