| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19002-0017 |
| Color: | Red |
| Series: | 19002 - Avikrimp |
| Connector Type: | Avikrimp, Quick Disconnect |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 300 V |
| Material: | Brass |
| Insulation Material: | Nylon (PA) |
| Compatible Tab Width: | 2.79mm |
| Compatible Tab Thickness: | 0.81mm |
| Orientation: | Straight |
| Insulation Type: | Full |
| Operating Temperature Range: | -65 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 4.064 µm |
| Contact Termination Plating Thickness: | 4.064 µm |
| Polarized to Mate: | No |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.17 mm |
| Glow Wire Capable: | Yes |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190020017 AA-5279T |
| SKU: | MOL19002-0017 |
19002-0017
| Heilind Number: | MOL19002-0017 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19002-0017 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
Avikrimp Fully Insulated Quick Disconnect, Female, for 18-22 AWG Wire, Mylar Tape
More >>Specifications
Detailed Description
The Avikrimp Fully Insulated Quick Disconnect, Female, is a reliable and efficient connector designed for 18-22 AWG wires. Featuring a durable brass construction with tin plating, it offers excellent conductivity and corrosion resistance. The nylon insulation and mylar tape ensure safety and protection, making it suitable for a wide range of applications. With a voltage rating of 300 V and an operating temperature range of -65 to 105 °C, this red-colored connector is both versatile and durable. Its straight orientation and crimp or compression termination method make installation easy. RoHS compliant and glow wire capable, it meets high safety standards. Perfect for use in automotive, industrial, and electrical settings, the Avikrimp Quick Disconnect guarantees secure and efficient connections every time.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 02-09-1119 | 2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1381, Female, with Tin (Sn) Plated Brass Contact, 18-22 AWG, Bag |  |
 | Molex 08-50-0187 | KK Trifurcon Crimp Terminal 6838, 18-20 AWG, Reel, Brass Tin (Sn) | |
 | Molex 08-56-0105 | KK 396 Crimp Terminal 2478, 18-24 AWG, Reel, Brass, 0.51 | |
 | Molex 09-50-3021 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 2 Circuits, Natural | |
 | Molex 09-50-3041 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 4 Circuits, Natural | |
 | Molex 09-50-3051 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 5 Circuits, Natural | |
 | Molex 09-50-3061 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 6 Circuits, Natural | |
 | Molex 09-50-3121 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 12 Circuits, Natural | |
 | Molex 09-50-3141 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 14 Circuits | |
 | Molex 15-04-0219 | 3.96mm Pitch KK Polarizing Key without Boss | |
 | Molex 22-01-3087 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 8 Circuits, Natural | |
 | Molex 43025-1200 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 12 Circuits, UL 94V-0, Black | |
 | Molex 501646-4000 | 2.00mm Pitch iGrid Wire-to-Board Housing, Dual Row, Positive Lock, 40 Circuits | |
 | Molex 502578-1200 | CLIK-Mate Wire-to-Board Housing, Single Row, Positive Lock, 12 Circuits, Beige | |

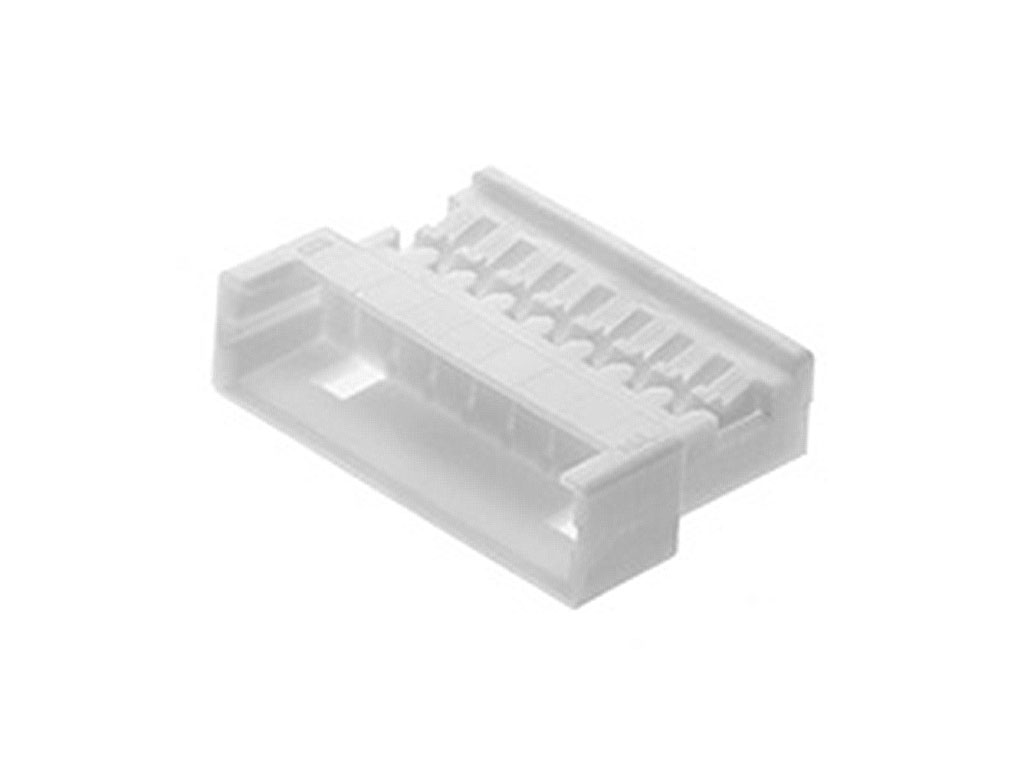

 | Molex 51047-0500 | 1.25mm Pitch PicoBlade Wire-to-Wire Plug Housing, 5 Circuits, Natural | |
