| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 173113-0064 |
| Color: | Black |
| Series: | 173113 |
| Amperage: | 3 A |
| Gender: | Male |
| Number of Contacts: | 62 |
| Number of Rows: | 3 |
| Termination Method: | Solder Cup |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel |
| Pitch: | 1.98 mm |
| IP Rating: | IP20 |
| Shell Plating: | Nickel |
| Number of Ports: | 1 |
| Orientation: | Straight |
| Insert Material: | PBT |
| Shell Material: | Steel |
| Operating Temperature Range: | -55 - 105 °C |
| Number of Contacts Loaded: | 62 |
| Mating Cycles: | 50 |
| Panel Mount: | Rear |
| Panel Mount Method: | Flange |
| PCB Locator: | No |
| Shielded: | Yes |
| PCB Retention: | Without |
| Type: | High Density |
| Mating Pitch: | 1.98 mm |
| Polarized to Mate: | Yes |
| Wire Size: | 22 AWG |
| Waterproof Dustproof: | No |
| Product Name: | FCT Products |
| Part Aliases: | 1731130064 CT37-62P |
| SKU: | MOL173113-0064 |
173113-0064
| Heilind Number: | MOL173113-0064 |
| Manufacturer: | Molex |
| Manufacturer Number: | 173113-0064 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:

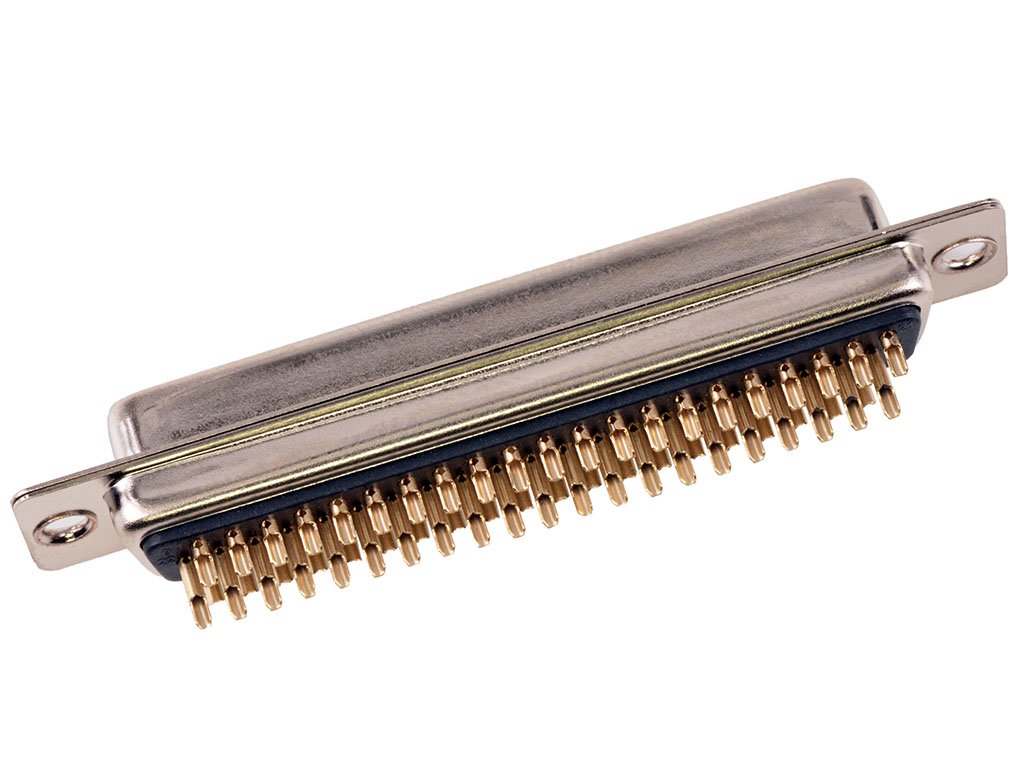

FCT High-Density D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, 62 Circuits
More >>Specifications
Detailed Description
Introducing the 173113-0064, a high-density D-Sub connector designed for reliable power and signal transmission in industrial applications. This male connector features 62 gold-plated solder cup contacts, ensuring robust conductivity and corrosion resistance. With a current rating of 3A, it is suitable for high-power connections. The black PBT insert and steel shell construction provide durability in harsh environments, while nickel shell plating offers additional protection. Featuring a straight orientation and rear panel mount with flange, installation is secure and space-efficient. RoHS compliant and rated for operation between -55 and 105°C, this connector is a dependable choice for demanding applications.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 173113-0065 | FCT High-Density D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, 62 Circuits |  |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/24/2023 | 513237 - Packaging Method/Quantity Changing. Delivery Unit ( DU) change due to standardization of the Product packaging. This change is a corrective action to meet product and process quality compliance. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 173113-0064 |
| Other Names: | 1731130064 CT37-62P |
