| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 173107-1305 |
| Gender: | Male |
| Housing Material: | Steel |
| Number of Contacts: | 5 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel |
| Insulation Material: | Polycyclohexylenedimethylene Terephthalate |
| Shielded: | Yes |
| Current Rating: | 40 A |
| D-Sub Shell Size: | S3 |
| Operating Temperature: | -55 to 150 °C |
| Mounting Angle: | Straight |
| Mounting Type: | Panel Mount, Screw Mount, Through Hole |
| D-Sub Connector Type: | Mixed Layout |
| SKU: | MOL173107-1305 |
173107-1305
| ICC Number: | MOL173107-1305 |
| Manufacturer: | Molex |
| Manufacturer Number: | 173107-1305 |
| ECAD Model: | |
Description:
FCT Mixed Layout D-Sub Connector, Male, Straight, PCB Through Hole, Gold Plating, Tin-plated Shell with Dimples, 8.10mm Snap-in Bolt, 5 Circuits Loaded (High Power), Heat Resistant Natural Insulator
Specifications
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

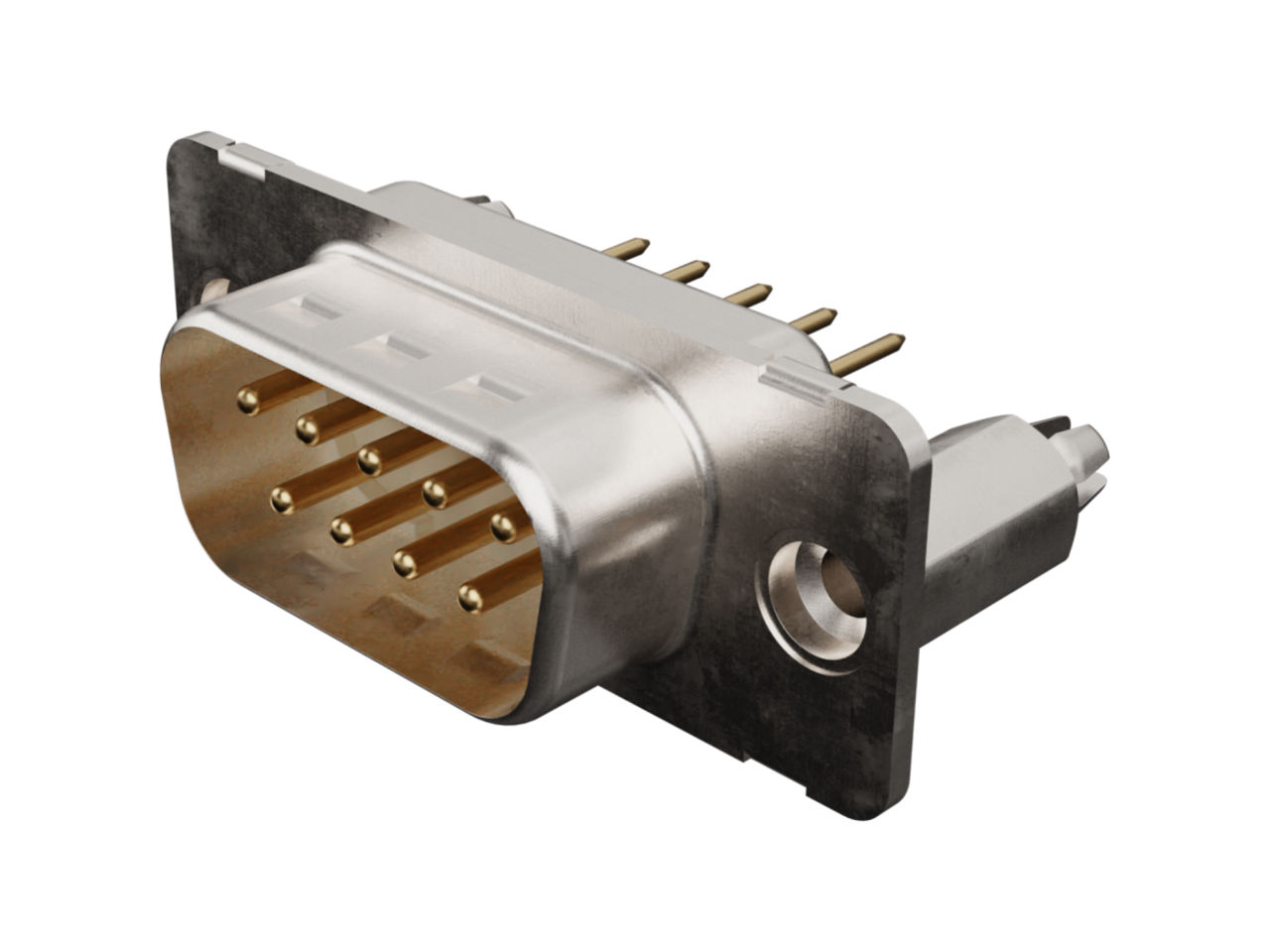

 | Molex 173109-2231 | FCT Standard-Density D-Sub Connector, Male, Straight, PCB Through Hole, 11.70mm Tail Length, Gold Plating, 200 Mating Cycles, 8.10mm #4-40 Snap-in Bolt, 9 Circuits, Heat Resistant Natural Insulator |  |
