| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 173107-0063 |
| Series: | 173107 |
| Amperage: | 7.5 A |
| Number of Rows: | 2 |
| Termination Method: | Solder Cup |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel |
| IP Rating: | IP20 |
| Shell Plating: | Tin |
| Orientation: | Straight |
| Number of Positions: | 10 |
| Shell Material: | Steel |
| Wire Size: | 20 AWG |
| Product Name: | FCT Products |
| Part Aliases: | 1731070063 FM13W3P-K120 |
| SKU: | MOL173107-0063 |
| Supplier Product: | D-Sub Connector / FCT Products |
173107-0063
| Heilind Number: | MOL173107-0063 |
| Manufacturer: | Molex |
| Manufacturer Number: | 173107-0063 |
| ECAD Model: | |
Description:
FCT Mixed Layout D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, Tin-Plated Shell with Dimples, 13 Circuits Max, 10 Signal Contacts Loaded, Green Insulator
More >>Specifications
Detailed Description
Introducing the FCT Mixed Layout D-Sub Connector, a versatile solution for your connectivity needs. This male connector features a straight orientation and solder cup termination method, with gold plating for enhanced conductivity. The tin-plated shell with dimples offers durability, while its 13 circuits accommodate various signal requirements, with 10 signal contacts already loaded. With an amperage rating of 7.5 A and IP20 protection, this connector ensures reliable performance in demanding environments. Made of steel with copper alloy contacts and gold over nickel plating, it guarantees long-lasting quality. Suitable for 20 AWG wire, this RoHS-compliant connector is part of the 173107 series, perfect for power and signal applications. Elevate your connectivity with FCT Products.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 172704-0078 | HPD Standard-Density D-Sub Connector, Solder Pot, with Machined Female Contacts, Panel Mount, 9 Circuits |  |

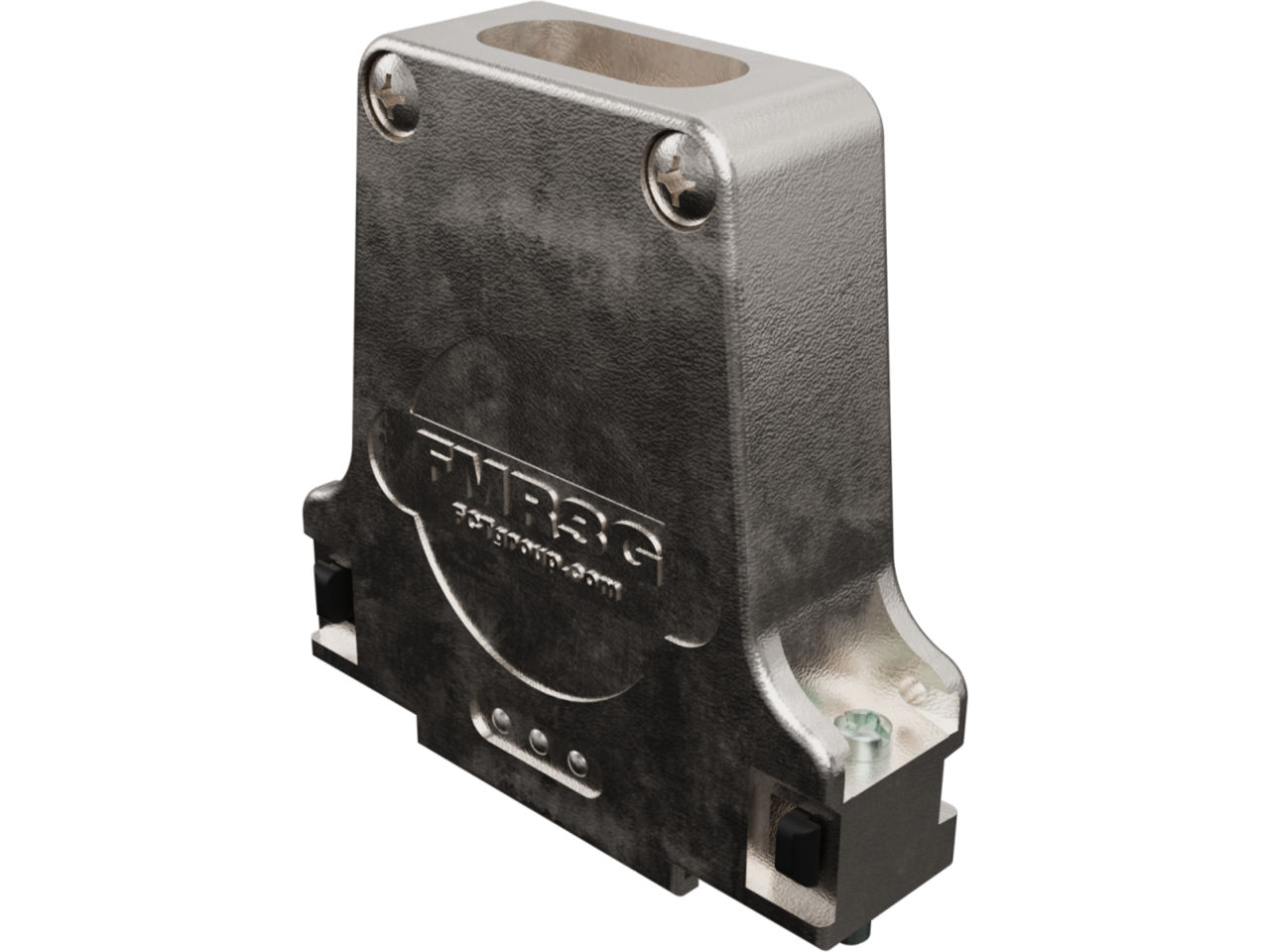

 | Molex 172704-0094 | FCT Metal Backshell for D-Sub Connector, Shell Size 3, Straight Dual Cable Outlet, with Locking Screws | |
 | Molex 172704-0096 | FCT Metal Backshell for D-Sub Connector, Shell Size 1, Straight Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 172704-0142 | FCT High Power Contact, Male, Straight, Crimp, 0.8µm Gold Mating Plating, 0.2µm Gold Termination Plating, 10A, 20-16 AWG | |
 | Molex 172704-0146 | FCT High Power Contact, Male, Straight, Solder Cup, 0.80µm Gold Plating, 16-20 AWG | |
 | Molex 172704-0147 | FCT High Power Contact, Male, Straight, Solder Cup, 0.8µm Gold Mating Plating, 0.2µm Gold Termination Plating, 20A, 16-12 AWG | |

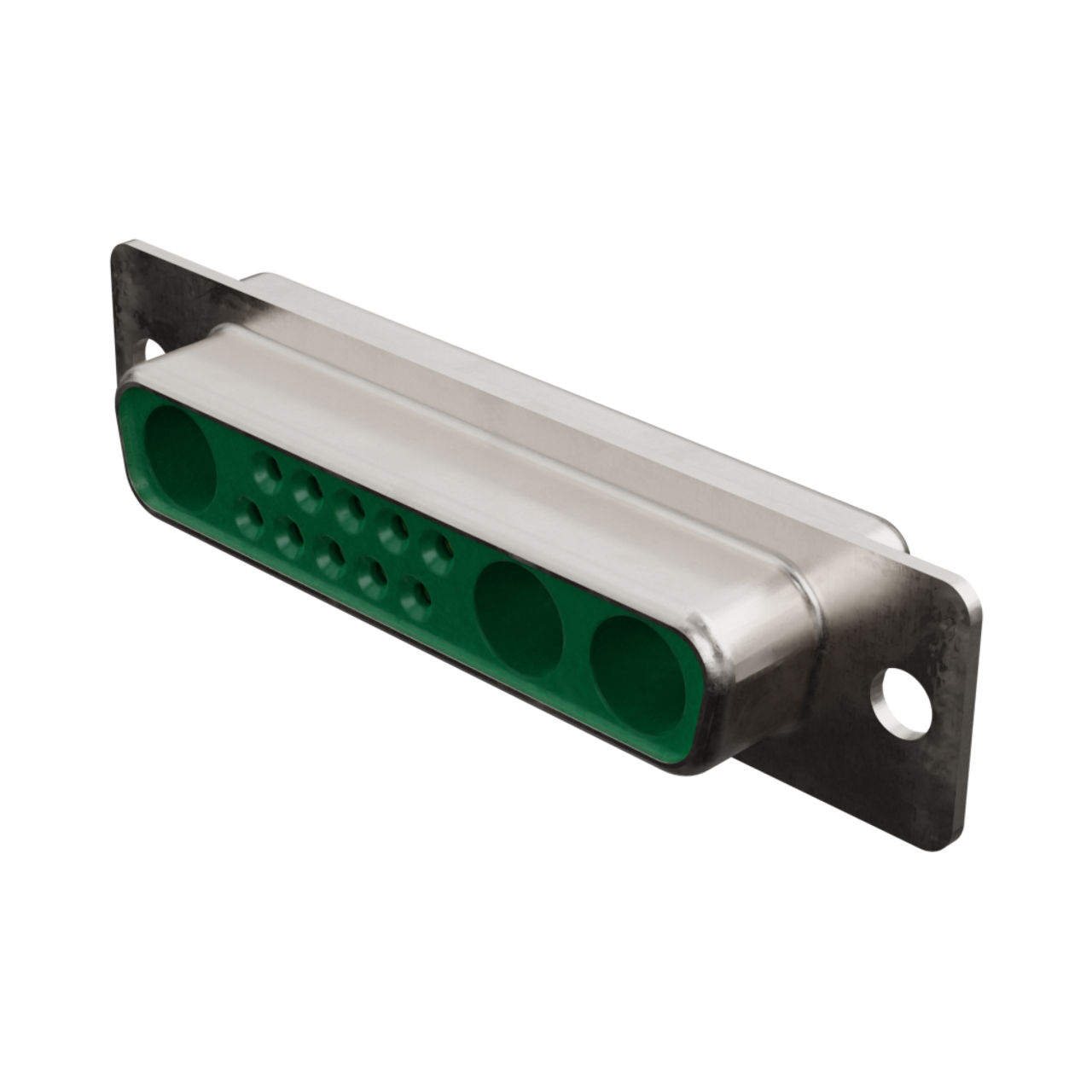

 | Molex 173107-0064 | FCT Mixed Layout D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, Tin-Plated Shell, 13 Circuits Max, 10 Signal Contacts Loaded, Green Insulator | |
